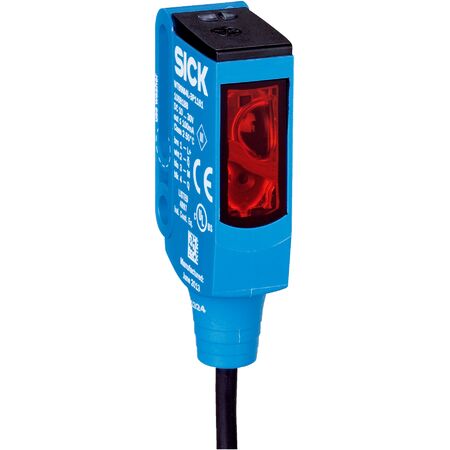

Photoelectric Proximity Sensor WTB9M4L-3P1161 | Background Suppression | 25mm to 300mm Sensing Range | IP66/IP67/IP69K Rated | by SICK
The WTB9M4L-3P1161 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source. With an IP66/IP67/IP69K rated enclosure, it ensures robust protection against dust and water, making it ideal for manufacturing process control and quality inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength
- Light spot size: Ø 1 mm at 170 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10°C to +50°C (extended -30°C to +55°C)
- Storage temperature: -30°C to +70°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 300 mm
- Rectangular housing design with M4 mounting hole
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated enclosure for robust protection
- Operating temperature range from -10°C to +50°C (extended -30°C to +55°C)
- Light/dark switching mode with complementary PNP output
- Laser class 1 safety certified (IEC 60825-1)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Laser safety compliant with IEC 60825-1 standards
Environmental Benefits
- Energy-efficient operation with low current consumption (30 mA)
- Durable IP69K rated housing reduces waste by extending product lifespan
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9M4L-3P1161 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
