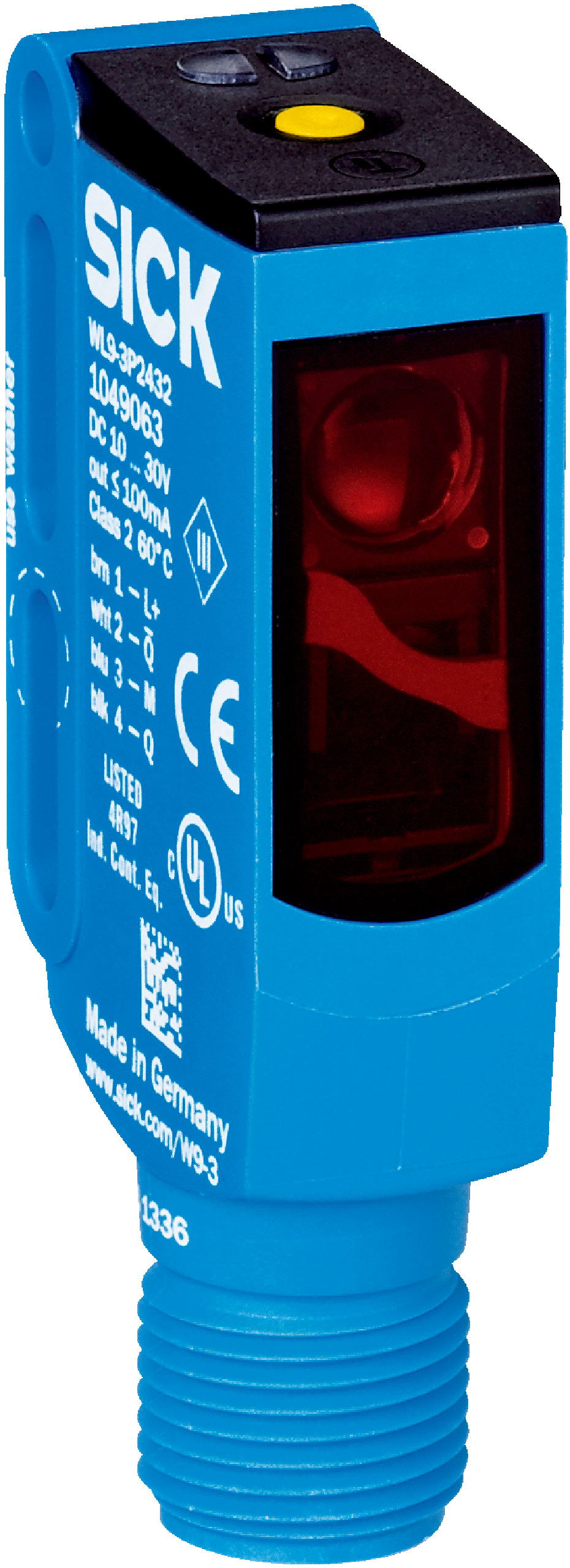

Photoelectric Proximity Sensor | Background Suppression | 25mm to 300mm Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source. With a fast response time of ≤ 0.5 ms and robust IP66/IP67/IP69K protection, this sensor is perfect for manufacturing process control and quality inspection systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary, max 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection type: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, Optics material: PMMA
- Protection rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 300 mm
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time of ≤ 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface for advanced sensor configuration
- Complementary PNP switching output with light/dark switching mode
- Robust design suitable for harsh industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, secure mounting using M3 mounting holes, and correct electrical connections following safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

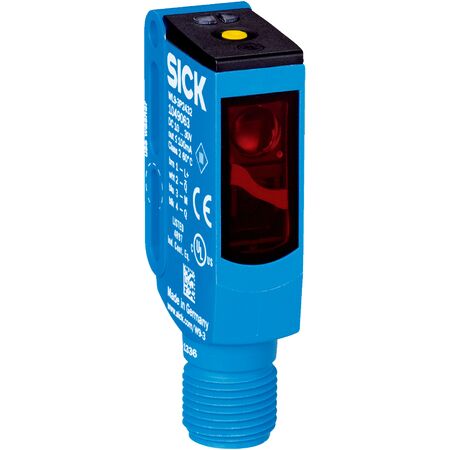

The SICK WTB9LC-3P2462A71 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
