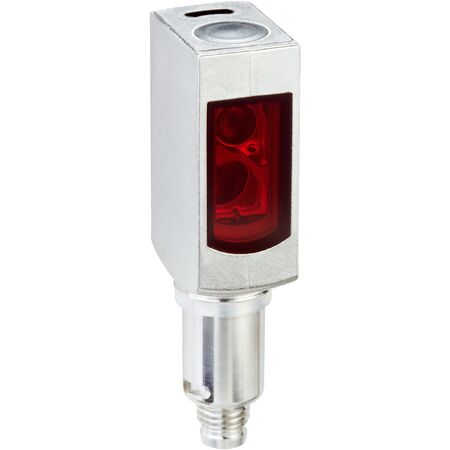

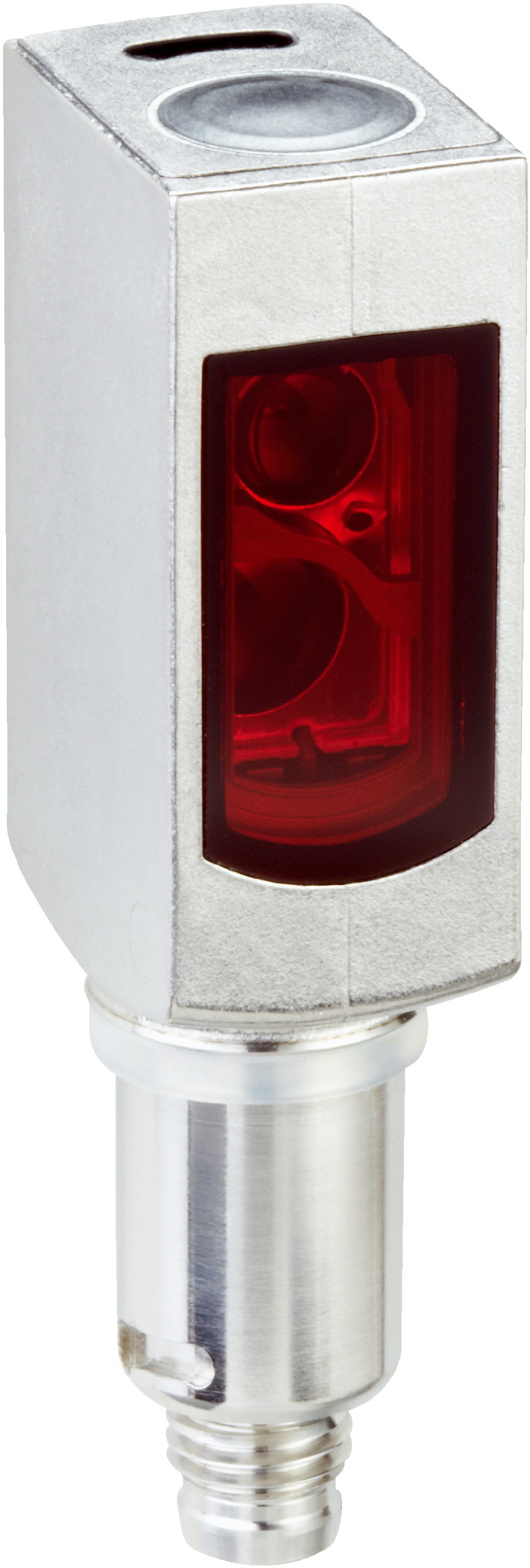

Photoelectric Proximity Sensor | Background Suppression | 25mm to 300mm Sensing Range | IP66 to IP69K Rated | by SICK
The Photoelectric Proximity Sensor with background suppression is designed for precise object detection in industrial automation. With a sensing range of 25 mm to 300 mm and a visible red laser light source, it ensures reliable performance in hygienic and washdown zones. Built for durability with a stainless steel housing, this sensor features a fast response time of ≤ 0.5 ms, making it ideal for detecting small objects in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | 25mm to 300mm Sensing Range | IP66 to IP69K Rated | by SICK
Brand: SICK
SKU: 1058271
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Laser sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength
- Light spot size: Ø 1 mm at 170 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 63.2mm x 22.2mm x 15.3mm
- Weight: 0.14 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Single teach-in button for easy adjustment
- Housing made of stainless steel V4A (1.4404, 316L) with slim design
- IP66, IP67, IP68, and IP69K rated for harsh environments
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP digital output with light/dark switching mode
- Certified for laser safety IEC 60825-1 and multiple international conformity declarations
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of small objects in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 4801 Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient laser light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SL-3P5262H photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
