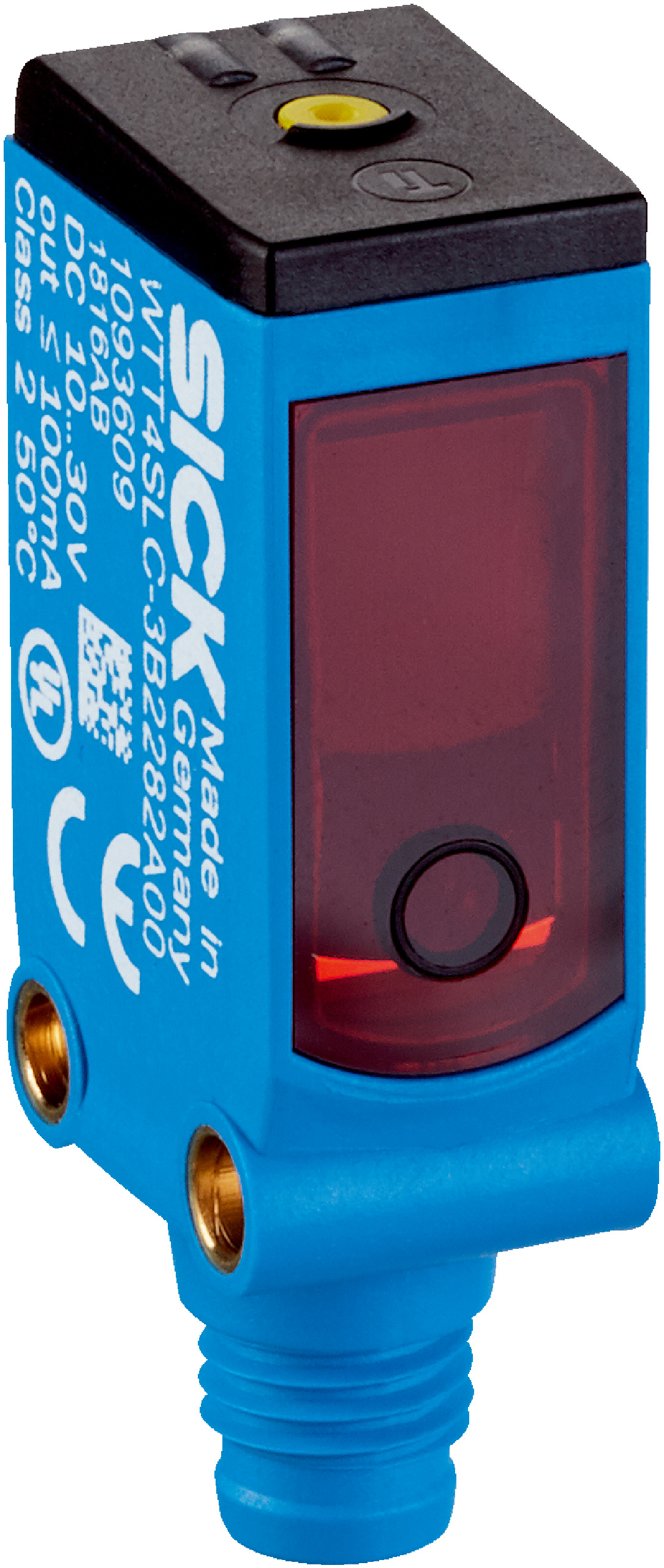

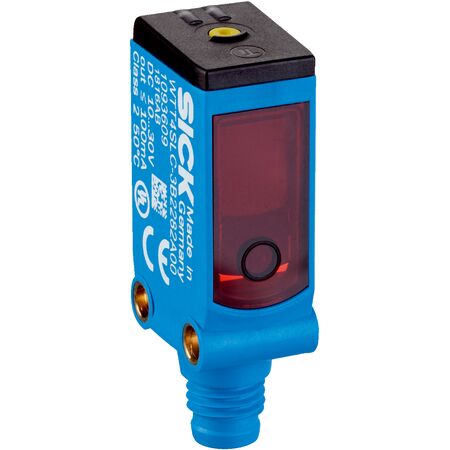

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | 50mm to 1000mm Sensing Range | by SICK
The WTT4SLC-3B2232A00 photoelectric proximity sensor excels in industrial automation with its background suppression and optical time-of-flight technology. Offering a sensing range from 50 mm to 1000 mm and a high resolution of 1 mm, it's perfect for precise object detection and distance measurement. With an IP67 rated housing, this sensor is built to withstand harsh environments, making it ideal for factory automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1000 mm
- Resolution: 1 mm
- Repeatability: 7.5 mm to 13 mm
- Accuracy: -10 mm to +80 mm
- Light source: Visible red laser, 658 nm wavelength, Laser class 1
- Output: Push-pull PNP/NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Response time: 0.5 ms
- Switching frequency: 1000 Hz
- Communication interface: IO-Link V1.1, COM3 (230.4 kBaud)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Housing material: Plastic (MABS, ABS)
- Optics material: Plastic (PMMA)
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1000 mm
- High resolution of 1 mm and repeatability between 7.5 mm to 13 mm
- Visible red laser light source with 658 nm wavelength and laser class 1 safety
- Fast update rate of distance value at 0.8 ms via IO-Link communication
- Push-pull switching output configurable as PNP/NPN with light/dark switching modes
- Robust IP67 rated plastic housing with MABS and ABS materials
- Operating temperature range from -40 °C to +50 °C
- Compact dimensions: 12.2 mm x 41.8 mm x 17.3 mm
- Cycle time of 0.8 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation requiring precise background suppression
- Machine safety and process control with laser sensing
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable IP67 rated housing reduces environmental damage and extends product life
- Non-contact sensing reduces wear and tear on mechanical components
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B2232A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
