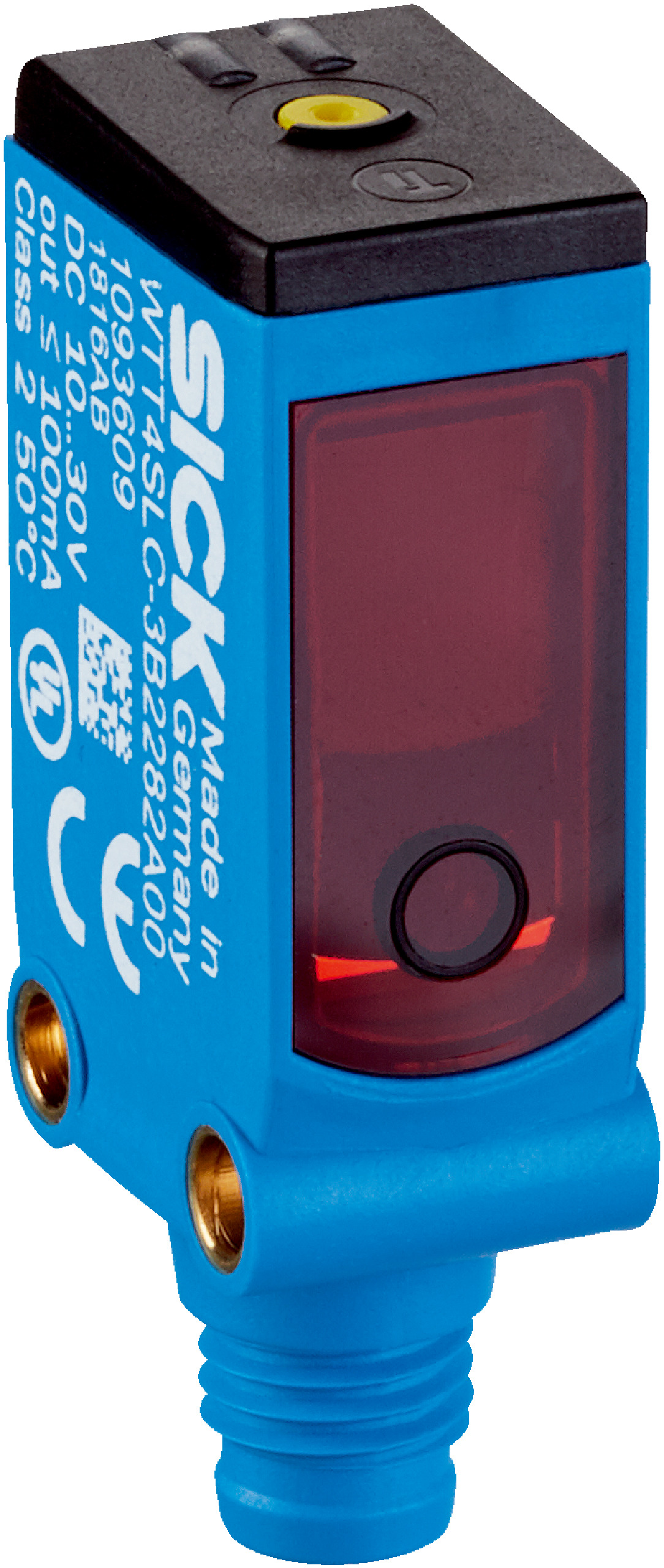

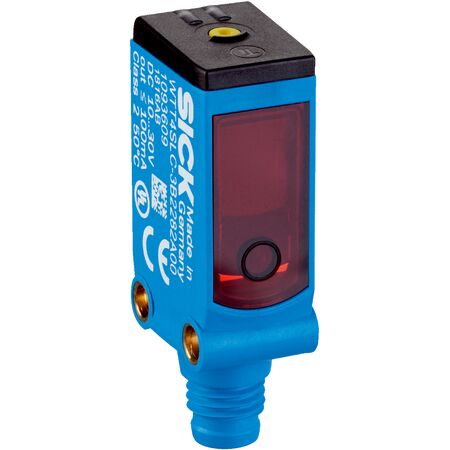

Photoelectric Proximity Sensor | Background Suppression | 50mm to 1300mm Sensing Range | High Resolution | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B2262B09 features advanced background suppression and optical time-of-flight technology, offering a sensing range from 50 mm to 1300 mm with high resolution. Ideal for industrial automation, manufacturing process control, and safety monitoring, this sensor ensures reliable object detection and distance measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 42mm x 17mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1300 mm
- High resolution of 1 mm and repeatability between 4.5 mm to 11 mm
- Visible red laser light source with wavelength of 658 nm
- Laser class 1 safety compliant with IEC 60825-1
- Communication via IO-Link V1.1 with fast update rate of 0.8 ms
- Push-pull PNP/NPN switching output with light/dark switching modes
- Robust IP67 rated plastic housing with M8 4-pin male connector
- Wide ambient operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Safety and monitoring in production lines
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable design reduces waste and replacement frequency
- Compliance with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT4SLC-3B2262B09 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
