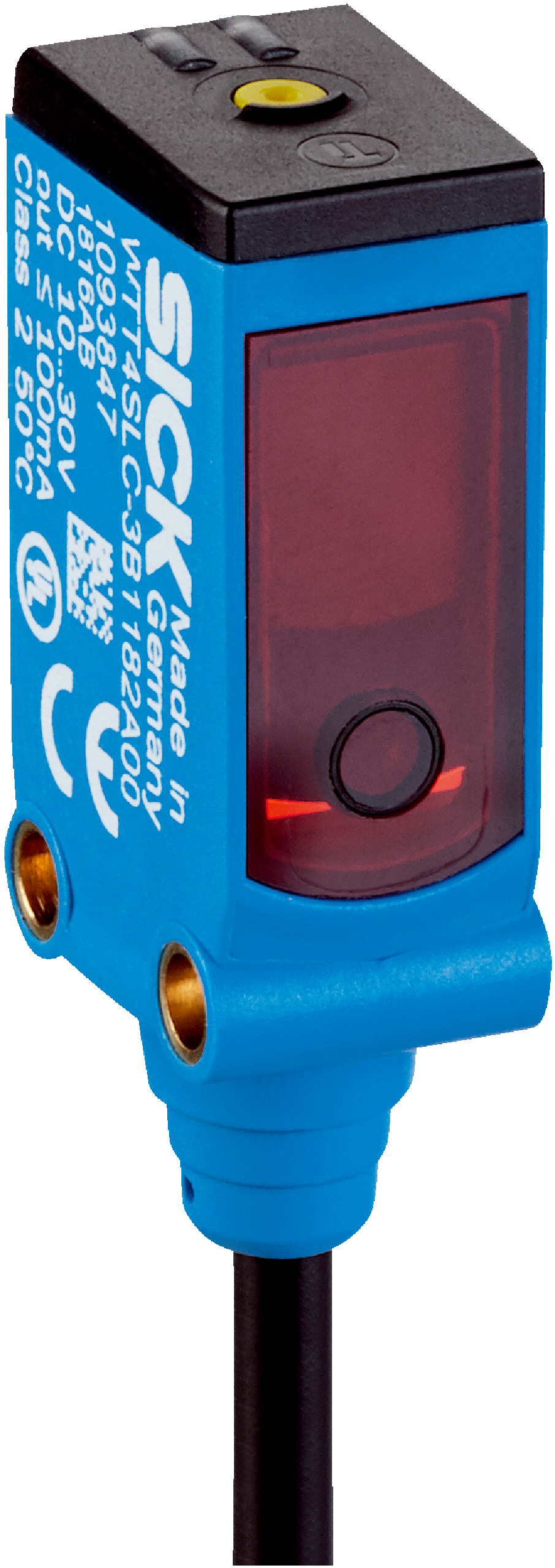

Photoelectric Proximity Sensor | Background Suppression | 50 mm to 1300 mm Sensing Range | IO-Link Communication | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection with a sensing range of 50 mm to 1300 mm and high resolution of 1 mm. Ideal for industrial automation, this sensor features background suppression and optical time-of-flight technology, ensuring reliable performance in manufacturing and robotics applications. With an IP67 rated enclosure, it withstands harsh environments while providing fast IO-Link communication for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1300 mm
- Measuring range: 90 mm to 1300 mm
- Resolution: 1 mm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 50 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Cable with M12 male connector, 4-pin, 1.547 m length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1300 mm
- High resolution of 1 mm and repeatability between 4.5 mm to 11 mm
- Visible red laser light source with wavelength of 658 nm
- Laser class 1 safety compliant
- IO-Link V1.1 communication interface with fast update rate of 0.8 ms
- Push-pull switching output configurable as PNP/NPN
- IP67 rated enclosure for robust protection
- Wide operating temperature range from -40 °C to +50 °C
- Single teach-in button and IO-Link for easy adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Safety and monitoring in production lines
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

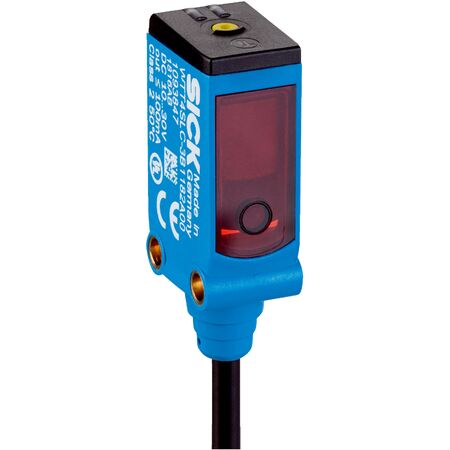

The SICK WTT4SLC-3B0062B03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
