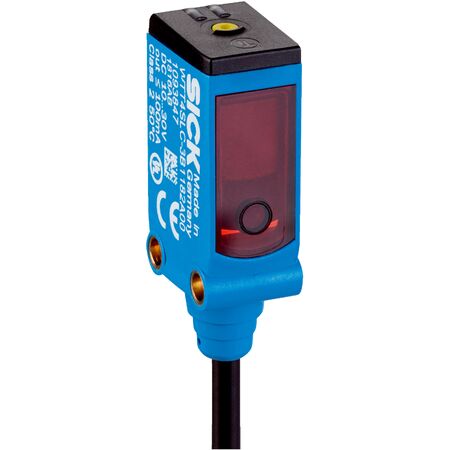

Photoelectric Proximity Sensor | Background Suppression | 50 mm to 1300 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B1162A00 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and precise distance measurement. With a sensing range of 50 mm to 1300 mm and a high resolution of 1 mm, this sensor ensures accurate detection in various applications. Its robust IP67 rated enclosure guarantees durability in challenging environments, while the visible red laser light source enhances visibility and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 1300 mm
- Measuring range: 90 mm to 1300 mm
- Resolution: 1 mm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength
- Laser class: 1 (IEC 60825-1)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 50 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Housing material: Plastic (MABS, ABS)
- Optics material: Plastic (PMMA)
- Connection type: 4-wire cable, 2 m length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1300 mm
- High resolution of 1 mm and repeatability between 4.5 mm to 11 mm
- Visible red laser light source with wavelength of 658 nm
- Laser class 1 safety compliant (IEC 60825-1)
- Communication via IO-Link V1.1 with fast update rate of 0.8 ms
- Push-pull switching output configurable as PNP/NPN
- IP67 rated enclosure for robust protection
- Operating temperature range from -40 °C to +50 °C
- Compact rectangular housing design with dimensions 12.2 mm x 41.8 mm x 17.3 mm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation requiring precise background suppression
- Safety and monitoring systems in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT4SLC-3B1162A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
