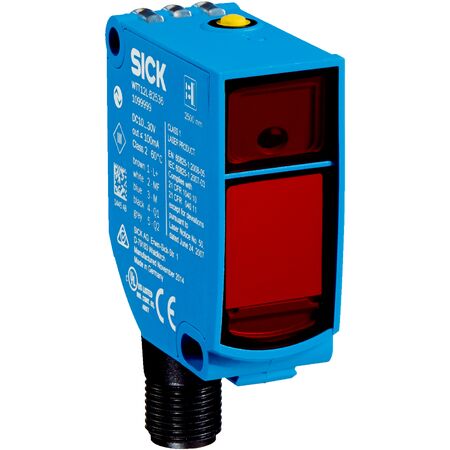

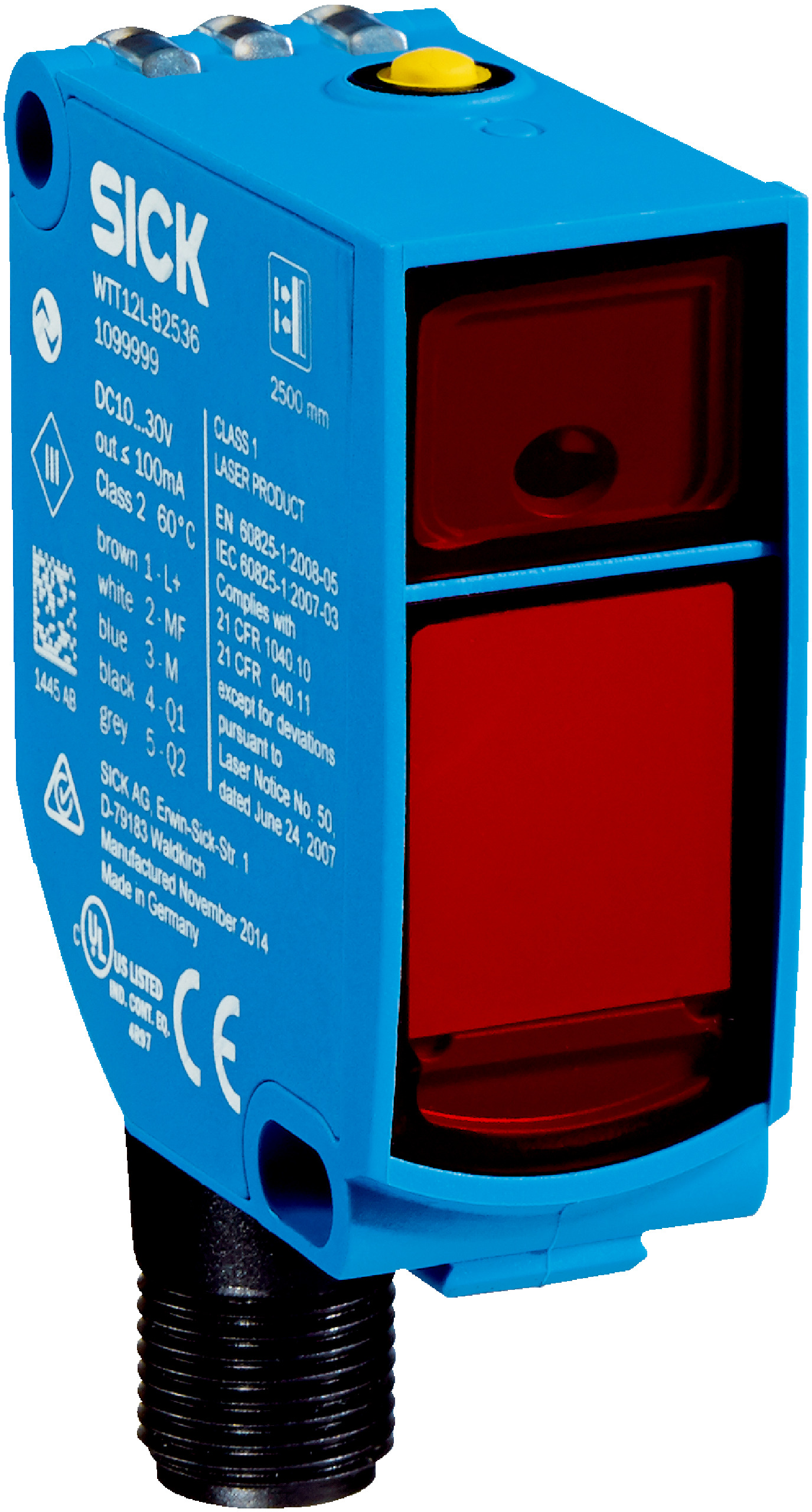

Photoelectric Proximity Sensor WTT12L-B2502S06 | Background Suppression | 50 mm to 2200 mm Sensing Range | IP67 Rated | by SICK
The WTT12L-B2502S06 photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range from 50 mm to 2200 mm and background suppression technology, it ensures reliable performance in various applications. Its IP67 rated enclosure provides dust and water protection, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range max.: 50 mm to 2200 mm
- Type of light: Visible red light, Laser source
- Light spot size: Ø 12 mm at 1800 mm distance
- Wavelength: 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 1 output (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2200 mm
- Single teach-in button for easy adjustment
- Push-pull PNP/NPN switching output with light/dark switching mode
- High switching frequency of 100 Hz and fast response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor integration to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Robotics and manufacturing process control
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2502S06 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
