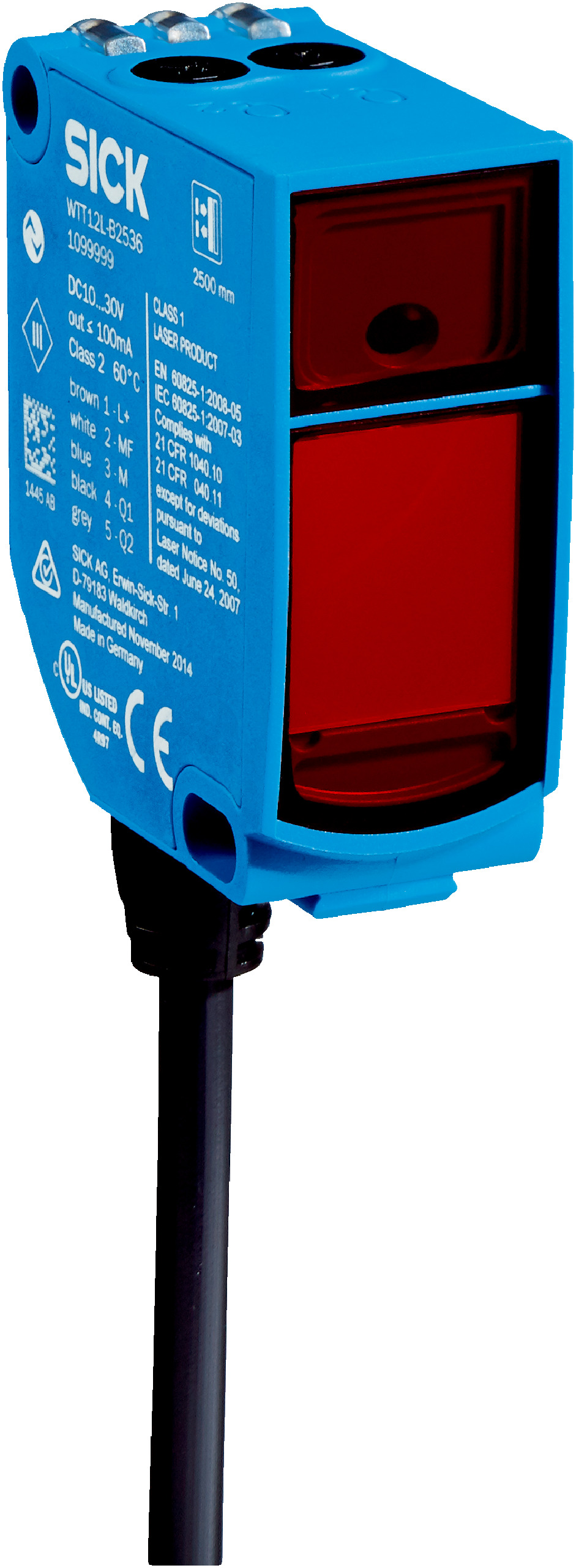

Photoelectric Proximity Sensor WTT12L-B3538 | Background Suppression | 50mm to 2500mm Sensing Range | IP67 Rated | by SICK
The WTT12L-B3538 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range from 50 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it’s perfect for object detection in manufacturing and robotics. Its IP67 rating ensures durability in harsh environments, making it a reliable choice for safety and presence detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 50 mm to 2,500 mm
- Type of light: Visible red light, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -35 °C to +50 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection type: Cable with M12, 5-pin plug, 0.3 m
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with push-pull switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -35 °C to +50 °C
- Robust plastic VISTAL® housing with PMMA optics
- Cable connection with M12, 5-pin plug
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient sensor operation reduces power consumption in automated systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B3538 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
