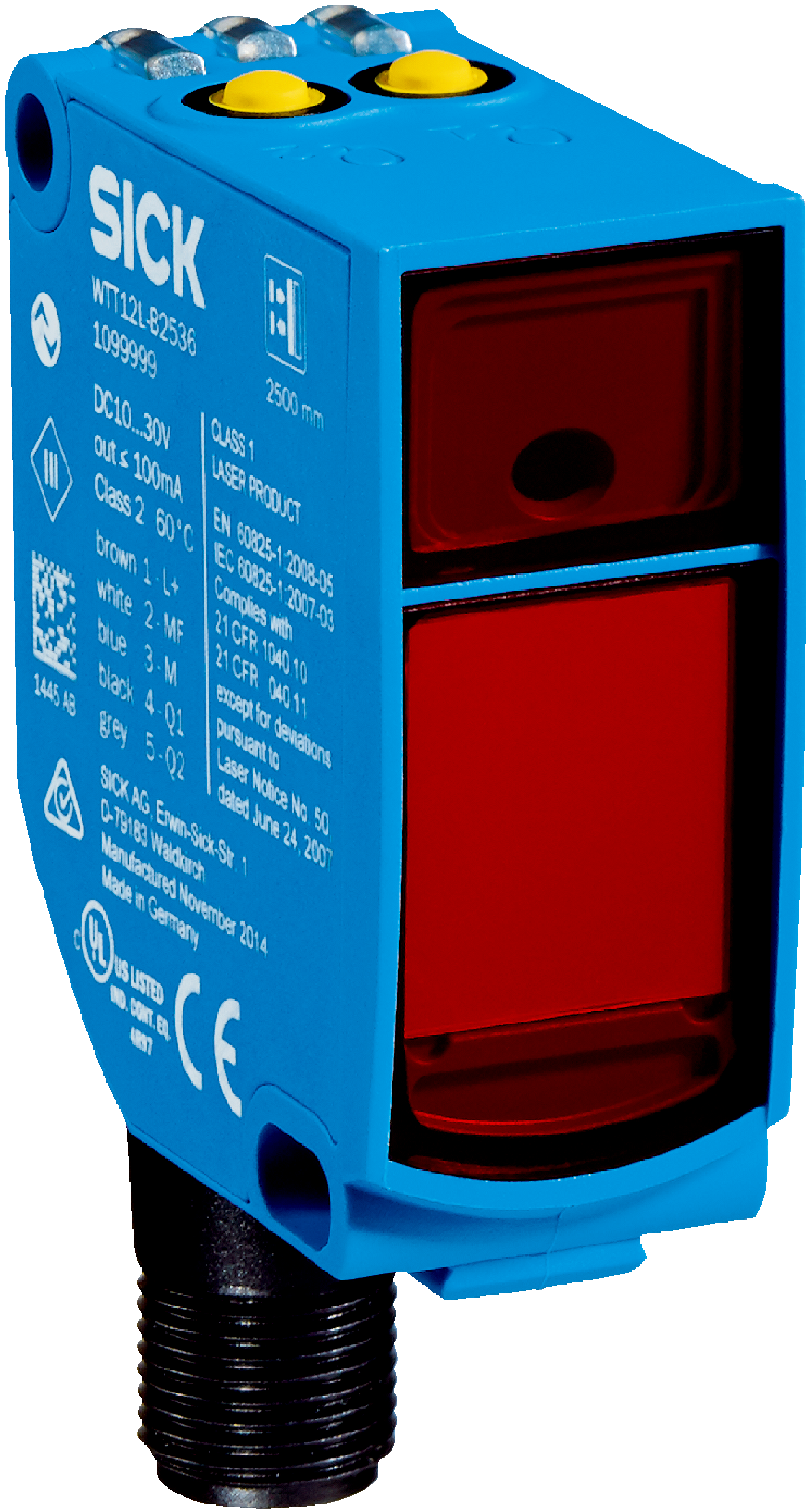

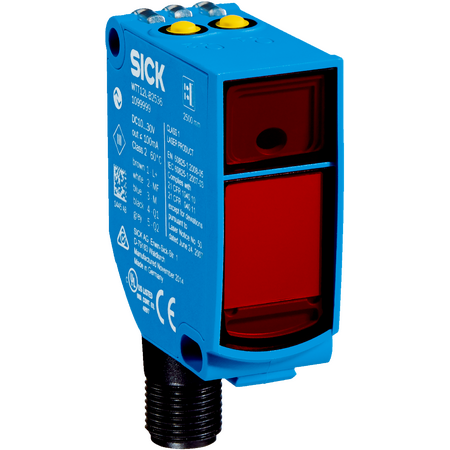

Photoelectric Proximity Sensor WTT12L-B2567 | Background Suppression | 50 mm to 3,800 mm Sensing Range | IP67 Rated | by SICK
The WTT12L-B2567 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range from 50 mm to 3,800 mm and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring in manufacturing processes, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, Laser proximity switch, Background suppression sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range max: 50 mm to 3,800 mm
- Type of light: Visible red light, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 compliant)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Ambient operating temperature: -35 °C to +50 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 3,800 mm
- Laser class 1 safety compliant
- Single teach-in button for easy adjustment
- Dual push-pull switching outputs (PNP/NPN)
- High switching frequency of 100 Hz and fast response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT12L-B2567 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
