Photoelectric Proximity Sensor | Background Suppression | 50mm to 800mm Sensing Range | IP67 Rated | by SICK

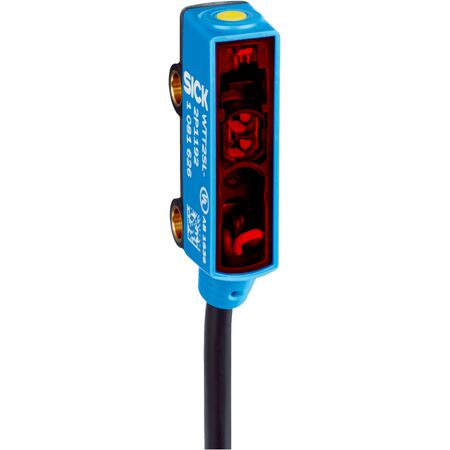

The WTT2SLC-2P3292A00 photoelectric proximity sensor is designed for industrial automation, featuring a sensing range of 50 mm to 800 mm with background suppression technology. Ideal for detecting small objects in material handling and robotics, this sensor offers a robust IP67 rated enclosure for protection against dust and water, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 800 mm
- Repeatability: 2 mm to 5 mm
- Accuracy: ±20 mm
- Light source: Infrared laser, wavelength 940 nm, Laser class 1
- Adjustment: Single teach-in button, IO-Link V1.1 communication interface
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 95 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS), Optics material: Plastic (PMMA)
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm with repeatability of 2 mm to 5 mm
- Single teach-in button and IO-Link communication interface for easy adjustment
- IP67 rated enclosure for protection against dust and water
- Laser class 1 safety compliant
- Multifunctional input programmable with PNP switching output
- Robust plastic housing with MABS ABS and PMMA optics
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Material handling and packaging systems
- Robotics and factory automation requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption of 20 mA
- Durable IP67 rated housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT2SLC-2P3292A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
