Photoelectric Proximity Sensor | Background Suppression | 5mm to 100mm Sensing Range | Fast Response Time | by SICK

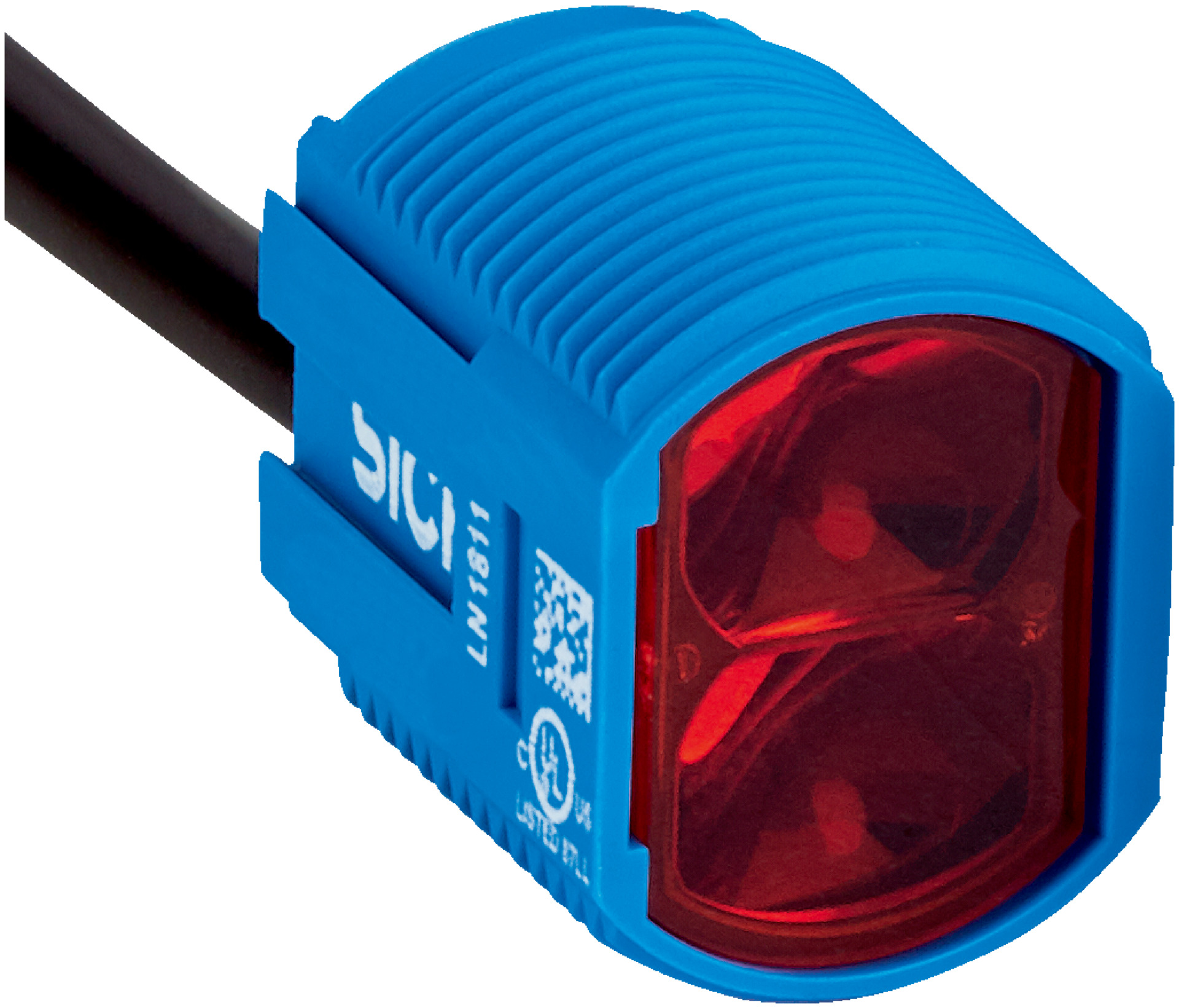

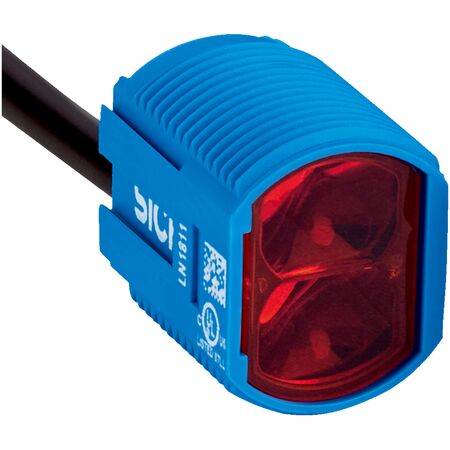

The photoelectric proximity sensor ZTB18-6NZ1G2D04 features background suppression and a sensing range of 5mm to 100mm, making it ideal for industrial automation and manufacturing process control. With a fast response time of ≤ 1 ms and a robust IP67-rated housing, this sensor ensures reliable performance in various applications, including packaging machinery and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, PVC insulated
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 3.6 g
- Dimensions (H x L x W): 18mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED light source
- Sensing range from 5 mm to 100 mm
- Fast response time of ≤ 1 ms
- High switching frequency up to 500 kHz
- Robust plastic ABS housing with IP67 protection
- Operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-6NZ1G2D04 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
