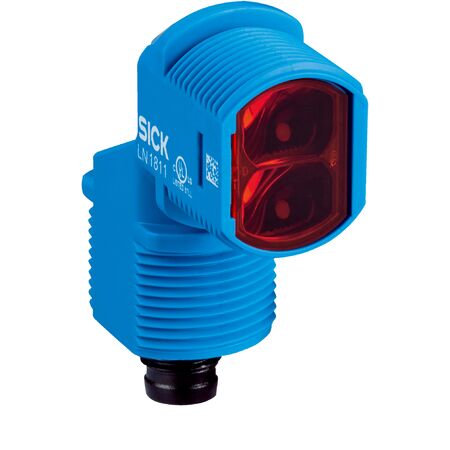

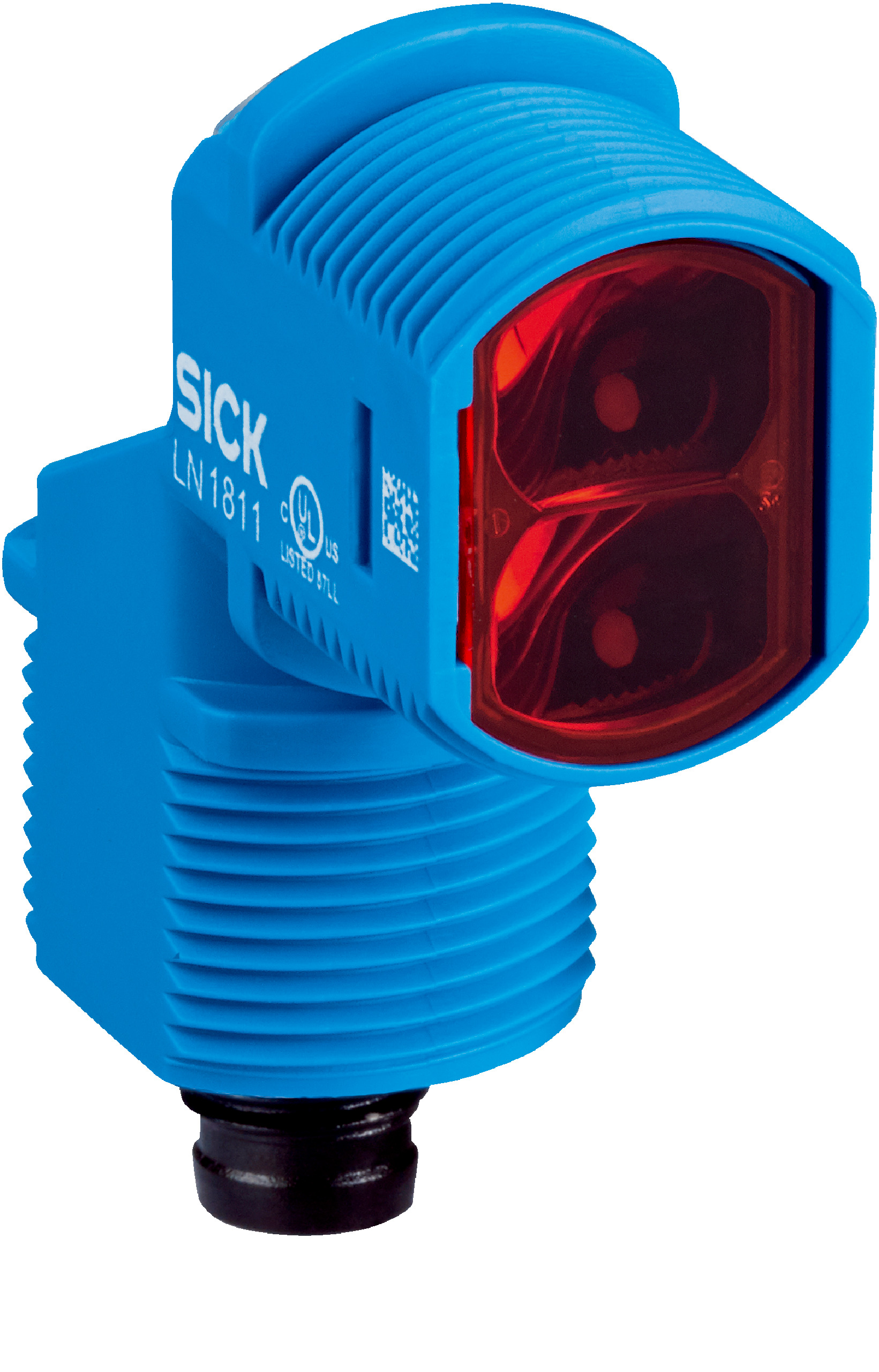

Photoelectric Proximity Sensor | Background Suppression | 5 mm to 100 mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor ZTB18-4JZ3A2D04 is designed for precise object detection in industrial automation, featuring a sensing range of 5 mm to 100 mm and a fast response time of ≤ 1 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Male connector M8, 4-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 41mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range from 5 mm to 100 mm
- Hybrid housing design with blue color
- M18 mounting system for head or base
- Fast response time of ≤ 1 ms
- High switching frequency of 500 kHz
- NPN dark switching output
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable plastic housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-4JZ3A2D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
