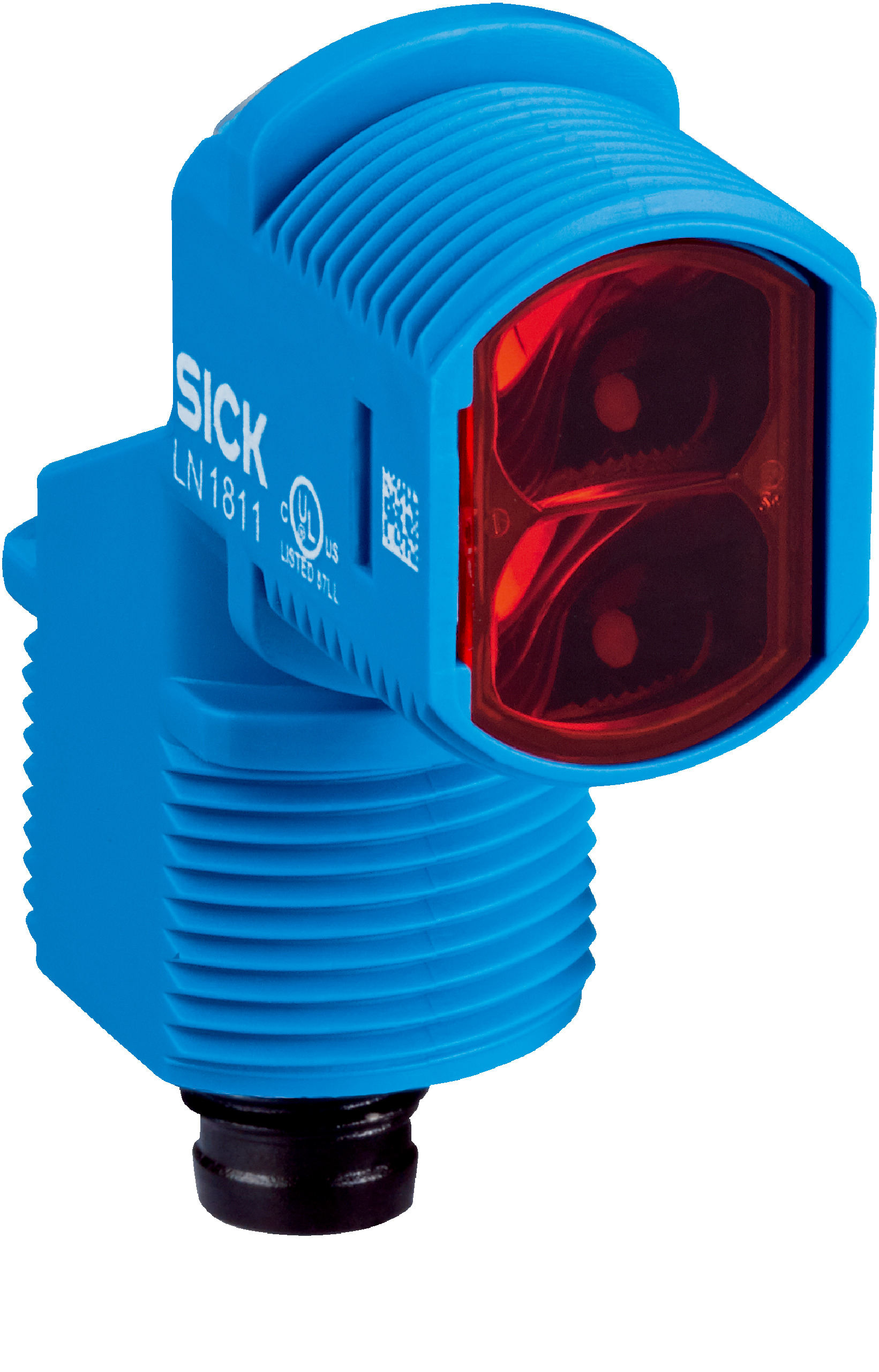

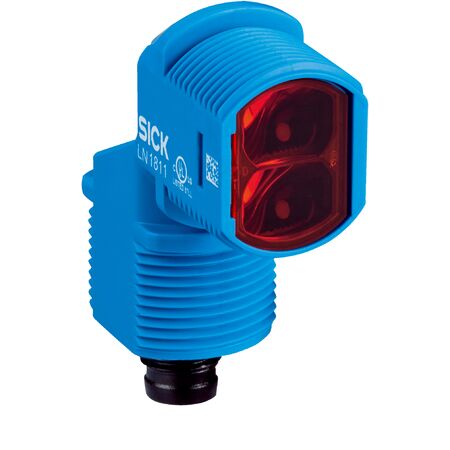

Photoelectric Proximity Sensor | Background Suppression | 5 mm to 100 mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor ZTB18-4GZ3A2D04 features background suppression technology, ensuring accurate object detection from 5 mm to 100 mm. With a fast response time of ≤ 1 ms and a robust IP67-rated housing, it's perfect for industrial automation, manufacturing process control, and robotics applications. Designed for reliability, this sensor operates in extreme temperatures from –40 °C to +55 °C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 41mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 100 mm
- Fast response time of ≤ 1 ms and switching frequency of 500 kHz
- Robust plastic ABS housing with IP67 enclosure rating
- Wide operating temperature range from –40 °C to +55 °C
- Male M8 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-4GZ3A2D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
