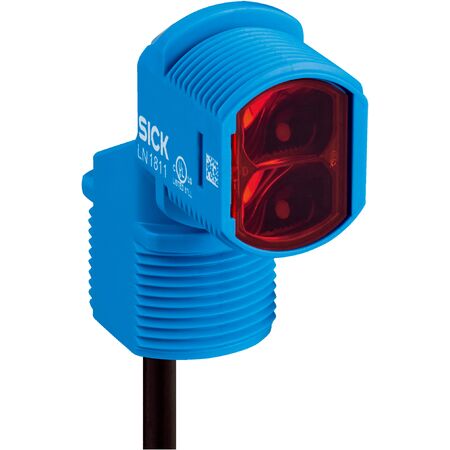

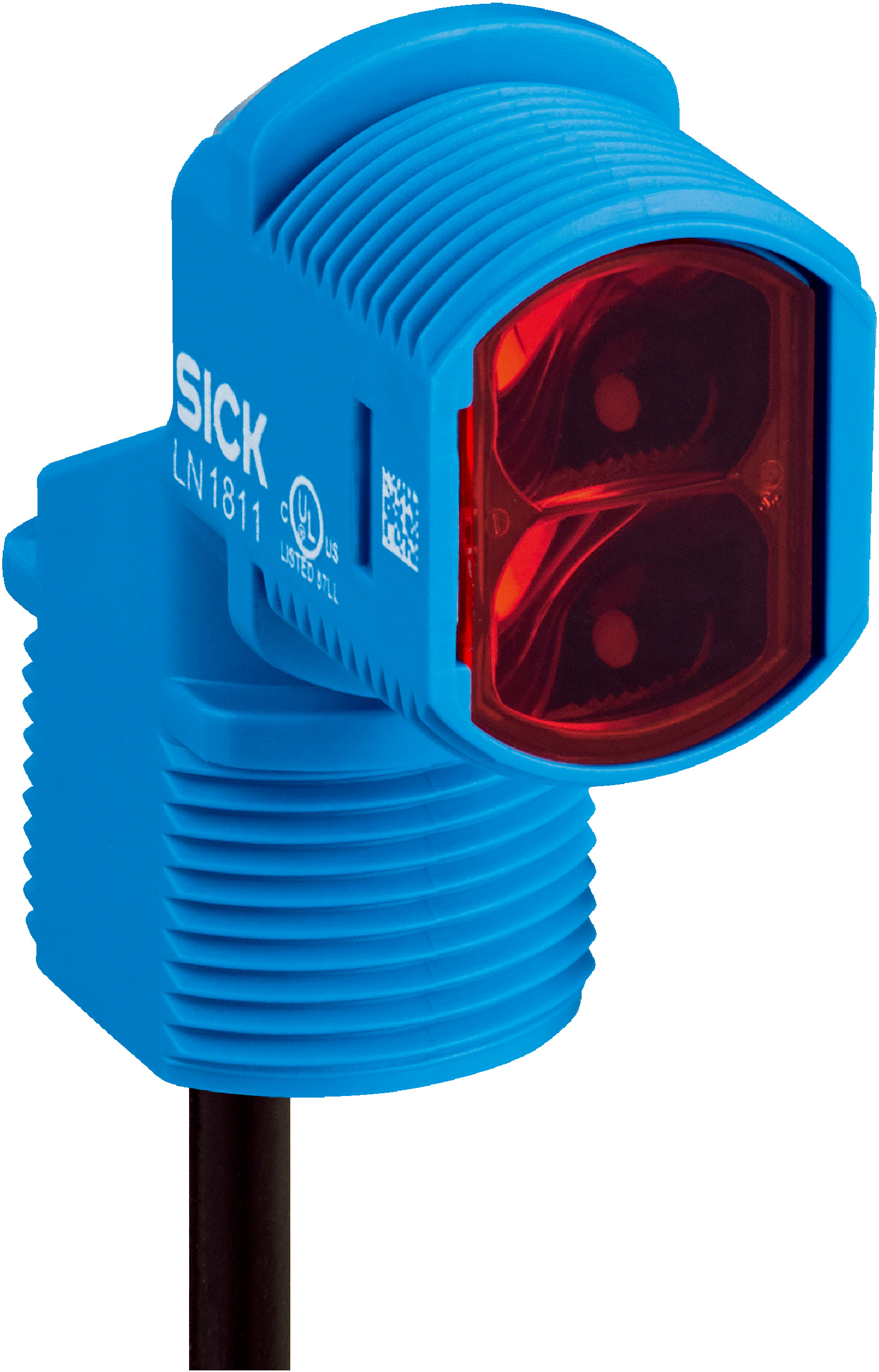

Photoelectric Proximity Sensor | Background Suppression | 5 mm to 150 mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor ZTB18-4PZ2B2D06 is designed for precise object detection in industrial automation, featuring a sensing range of 5 mm to 150 mm and a fast response time of ≤ 1 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 150 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with < 10% ripple
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with M8 3-pin connector, 150 mm length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 150 mm
- Hybrid housing design with blue color
- M18 mounting system for head or base
- Fast response time of ≤ 1 ms and switching frequency of 500 kHz
- PNP switching output with light switching mode
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 15 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-4PZ2B2D06 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
