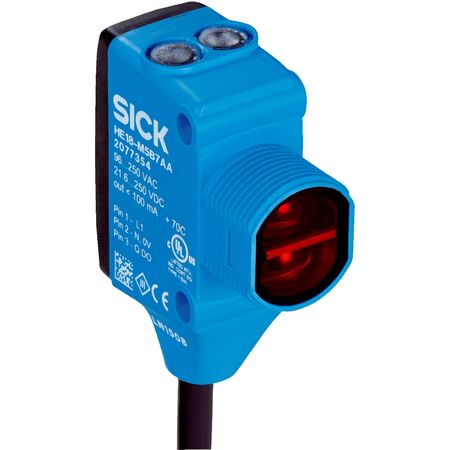

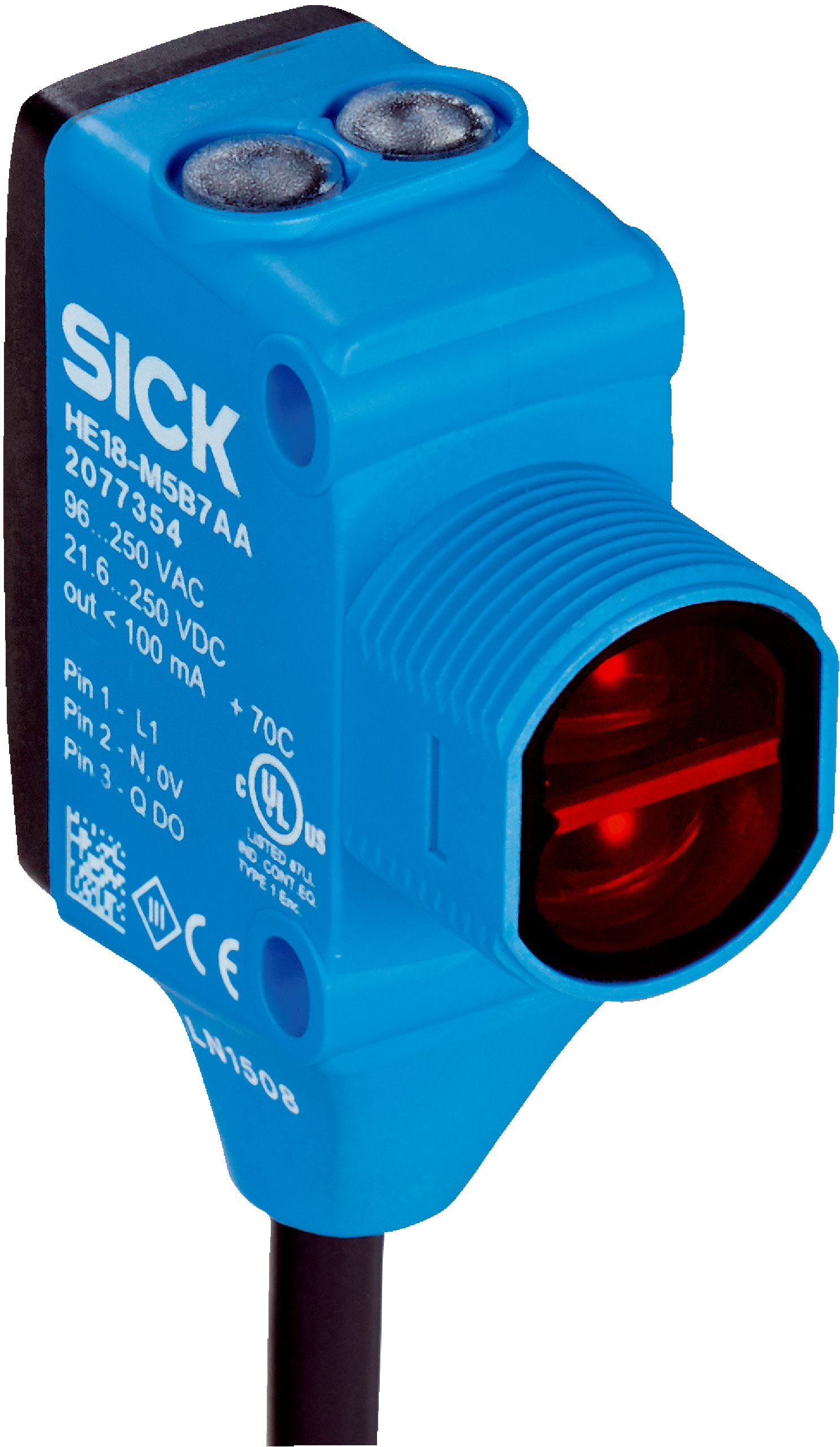

Photoelectric Proximity Sensor | Background Suppression | 5mm to 300mm Sensing Range | IP67 & IP69K Rated | by SICK
The photoelectric proximity sensor HTB18-M5B2AAD04 is designed for precise object detection in industrial automation. With a sensing range of 5 mm to 300 mm and a background suppression feature, it ensures reliable performance in various applications. Its robust IP67 and IP69K rated housing makes it ideal for harsh environments, while the PinPoint LED light source provides clear visibility. Perfect for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 150 mm (preset 100 mm), max 300 mm
- Light source: PinPoint LED, visible red light, wavelength 631 nm
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with male micro connector, 4-pin, 150 mm, PVC cable
- Protection class: II
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +65 °C
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 45.5mm x 34.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with visible red light
- Sensing range preset to 100 mm, max range 5 mm to 300 mm
- PinPoint LED light source with 631 nm wavelength
- M18 threaded housing for head/side mounting
- MOSFET dark switching output with max 100 mA output current
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- Cable with male micro connector, 4-pin, 150 mm length
- Robust plastic VISTAL® housing and PMMA optics
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +65 °C
- Complies with EMC standards EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67/IP69K rated housing extends product lifespan, reducing waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTB18-M5B2AAD04 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
