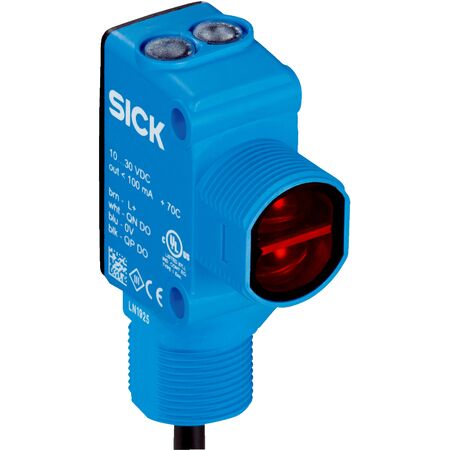

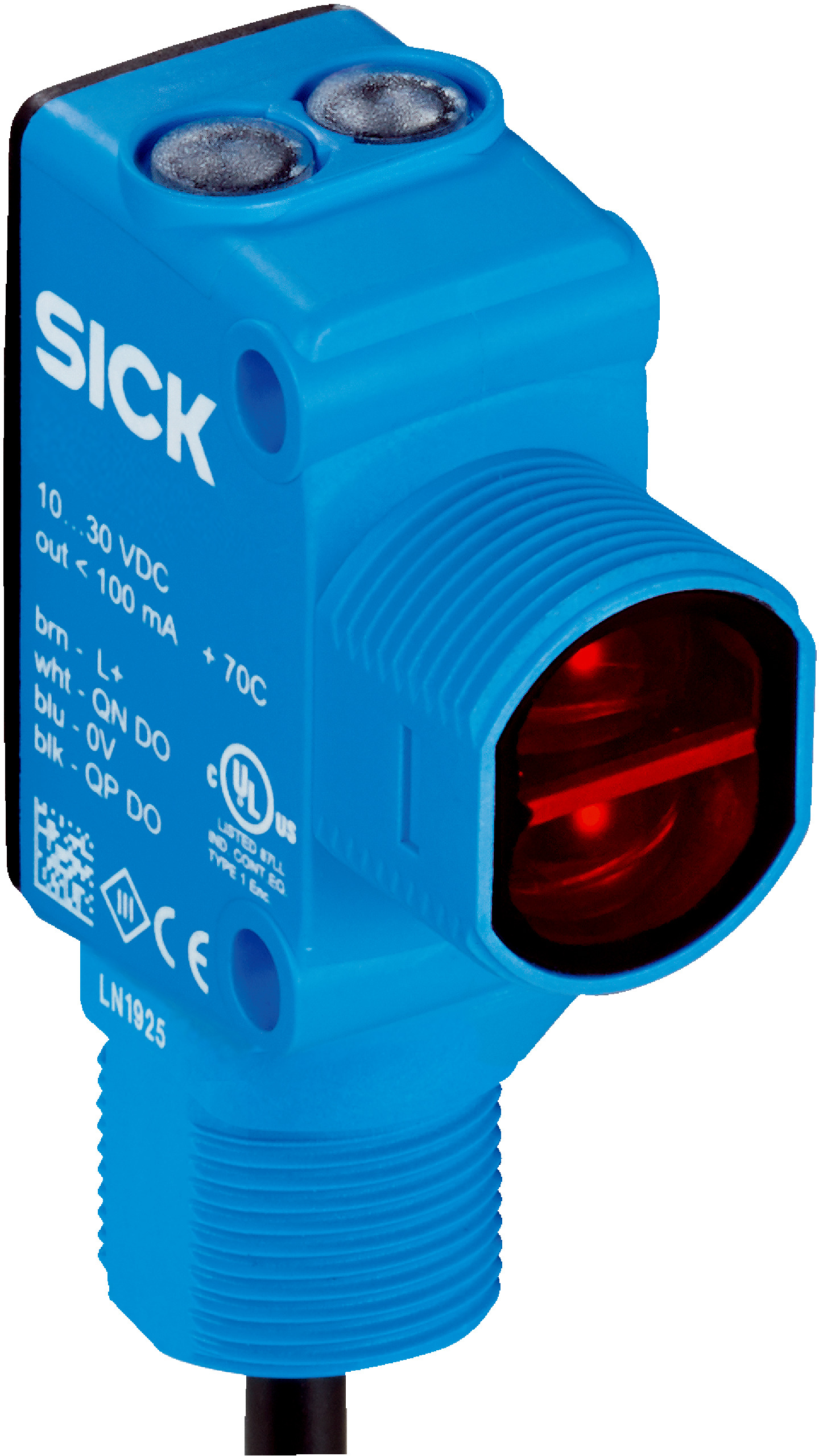

Photoelectric Proximity Sensor | Background Suppression | 5mm to 300mm Sensing Range | IP67 & IP69K Rated | by SICK
The Photoelectric Proximity Sensor with background suppression is designed for precise object detection in industrial automation. With a sensing range of 5mm to 300mm and a fast response time of ≤ 0.5 ms, it’s perfect for manufacturing process control and quality inspection. Featuring a durable IP67/IP69K rated housing, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 5 mm to 300 mm
- Light source: Visible red laser, wavelength 655 nm, Laser class 1
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: ≤ 20 mA
- Switching outputs: PNP and NPN light switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms, switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 150 mm, plastic PVC cable
- Protection class: III, enclosure rating IP67 and IP69K
- Operating temperature: -30 °C to +55 °C, storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2 industrial radio safety class A
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with visible red laser light source
- Sensing range from 5 mm up to 300 mm
- Signal strength light bar for easy adjustment
- IP67 and IP69K rated for robust protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Dual switching outputs: PNP and NPN light switching
- Cable with M12 male connector, 4-pin, 150 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTB18BL-B4B5BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
