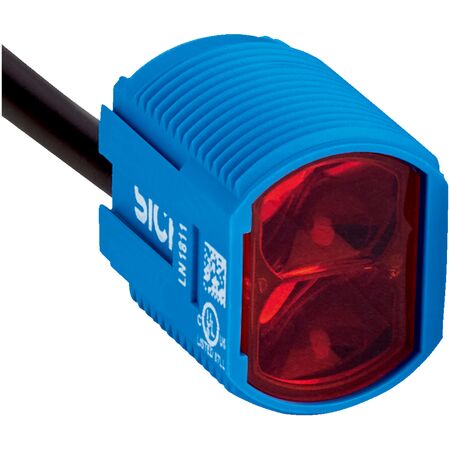

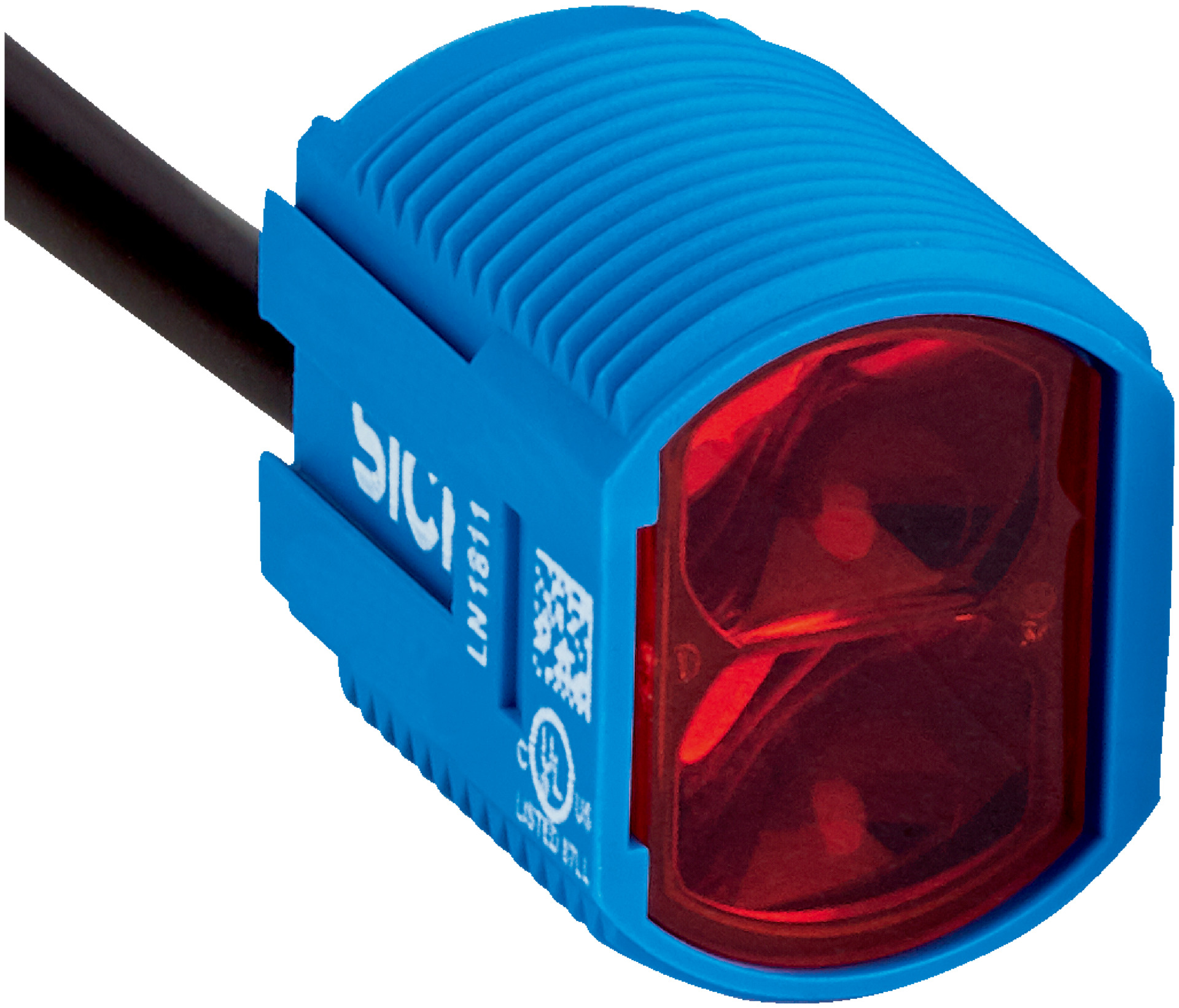

Photoelectric Proximity Sensor | Background Suppression | 5mm to 50mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor ZTB18-6NZ1G2D02 is designed for precise object detection in industrial automation, featuring a sensing range of 5 mm to 50 mm and a fast response time of ≤ 1 ms. With its robust IP67-rated housing and visible red light from a PinPoint LED, this sensor is perfect for manufacturing process control and packaging systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 50 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, plastic PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 3.6 g
- Dimensions (H x L x W): 18mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range from 5 mm to 50 mm
- Fast response time ≤ 1 ms and high switching frequency of 500 kHz
- Robust plastic ABS housing with IP67 protection rating
- Operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m with plastic PVC material
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-6NZ1G2D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
