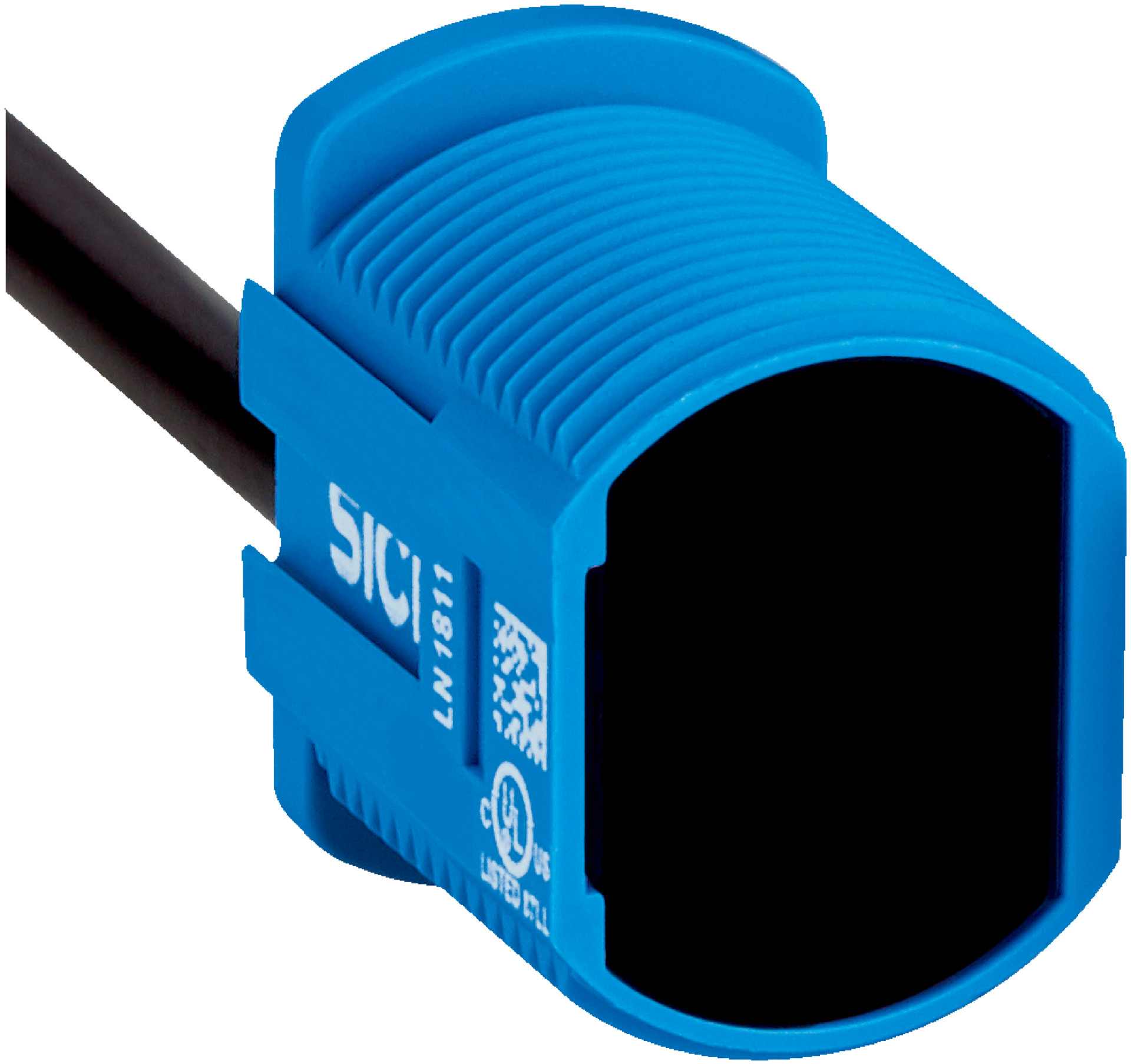

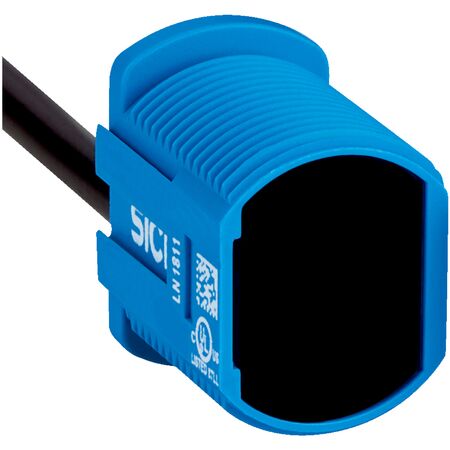

Photoelectric Proximity Sensor | Background Suppression | 5mm to 50mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-9AB4B1D02 features background suppression technology and a sensing range of 5mm to 50mm, making it ideal for industrial automation and manufacturing process control. With a robust IP67 rating and a high switching frequency of 500 kHz, this sensor ensures reliable performance in challenging environments, perfect for robotics and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 50 mm
- Light source: PinPoint LED, infrared wavelength 850 nm
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared PinPoint LED light source with 850 nm wavelength
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Robotics and material handling
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-9AB4B1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
