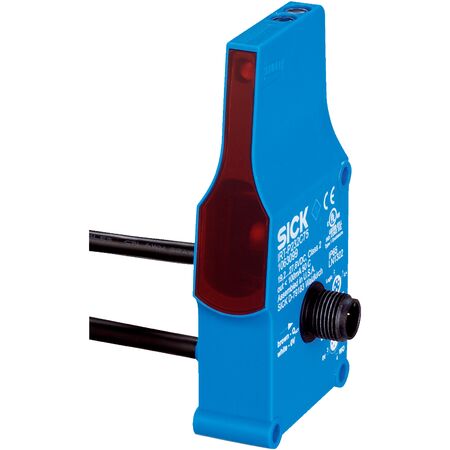

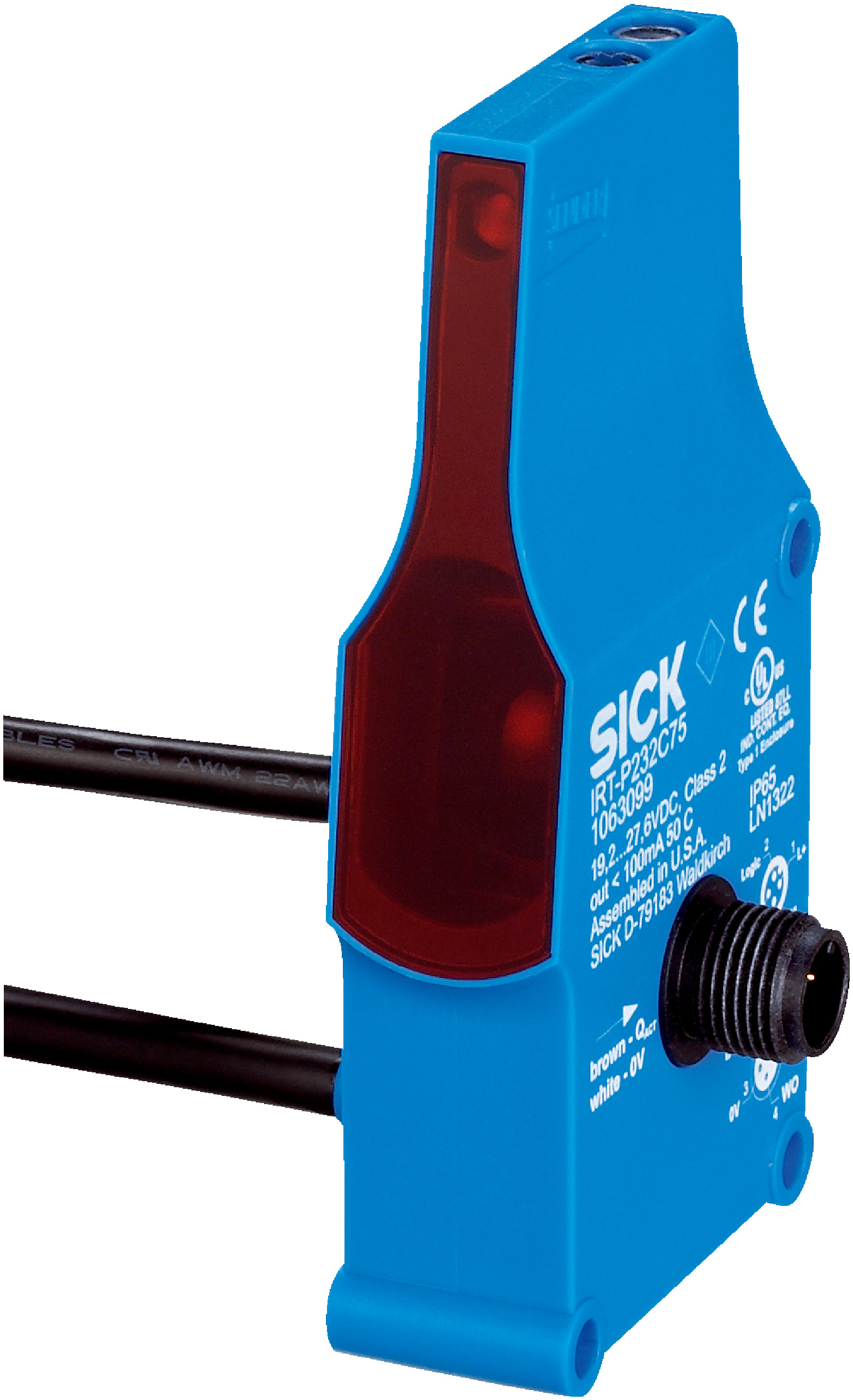

Photoelectric Proximity Sensor IRX-P232C83S21 | Background Suppression | 60mm to 900mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor IRX-P232C83S21 is designed for industrial automation, featuring a sensing range from 60 mm to 900 mm and an infrared LED light source with a 7° angle of dispersion. With a fast response time of 2 ms and an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection in material handling, robotics, and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator type: Electrical
- Max. number of sensors: Approx. 30 to 50 depending on conditions
- Logical operation: Single accumulation with sleep
- Type of release: Single release
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size at 500 mm: Ø 20 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. Vs – 0.5 V / 0 V
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Daisy chain connection: Cable with female M12, 4-pin connector, 2 m
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Shock and vibration resistance: IEC 68 compliant
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast 2 ms response time
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68 standards
- PNP switching output with max output current ≤ 100 mA
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Robotics and manufacturing process control
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IRX-P232C83S21 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
