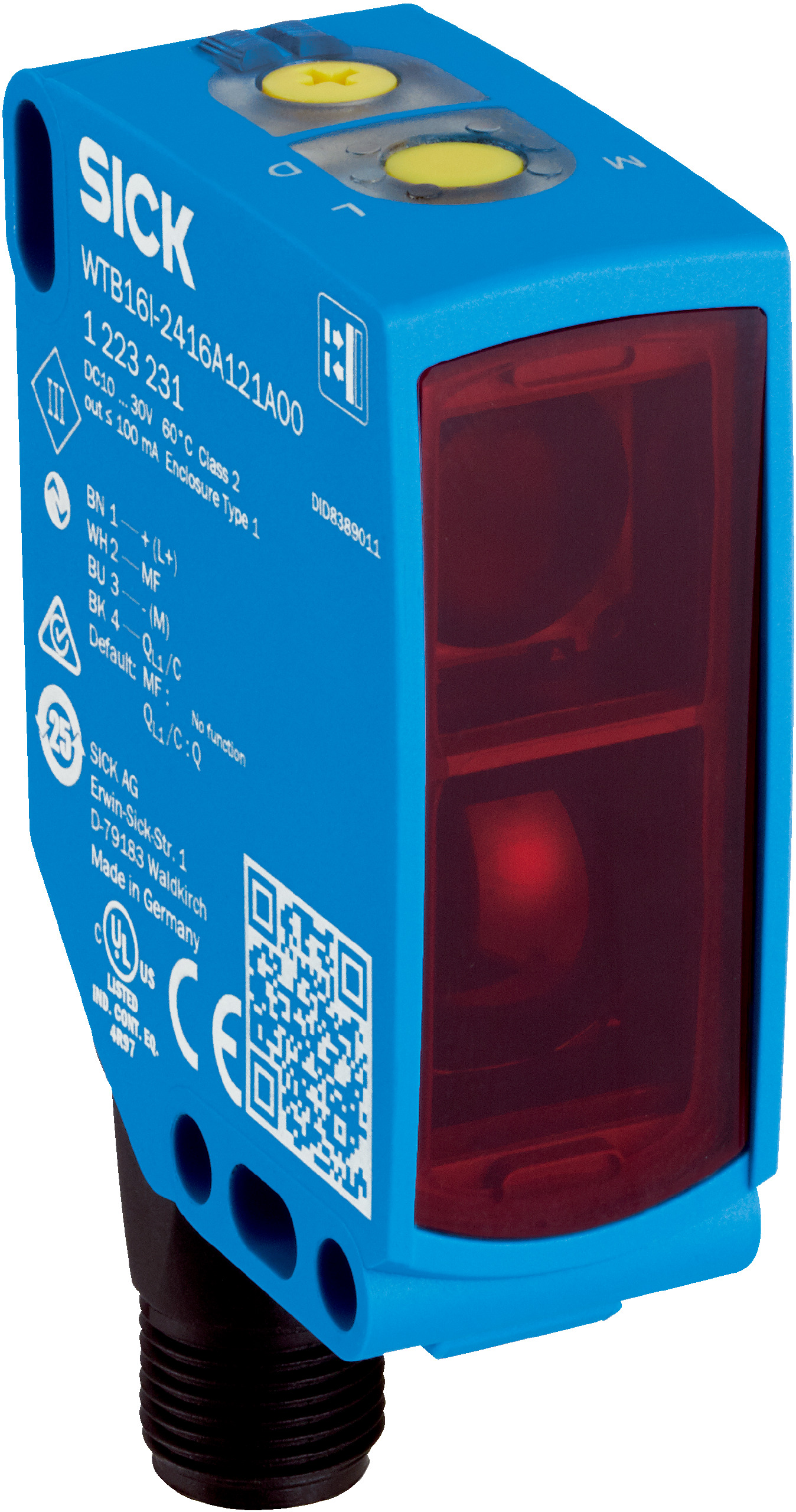

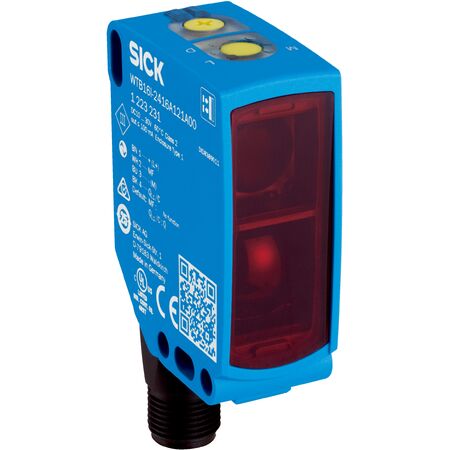

Photoelectric Proximity Sensor WTB16I-2416A121A00 | Background Suppression | Adjustable Sensing Range | Infrared LED | by SICK
The WTB16I-2416A121A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 10 mm to 1500 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Featuring a robust IP66, IP67, and IP69 rated housing, this sensor is perfect for material handling, quality control, and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Output type: Push-pull PNP/NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Display: BluePilot sensing range and switching display, green operating indicator, yellow object detection status
- Communication: IO-Link V1.1 with 2.3 ms cycle time
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm
- BluePilot for easy sensing range setting and switching function inversion
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and presence detection
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-2416A121A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
