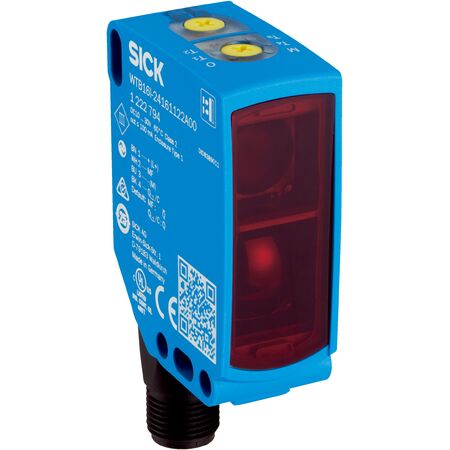

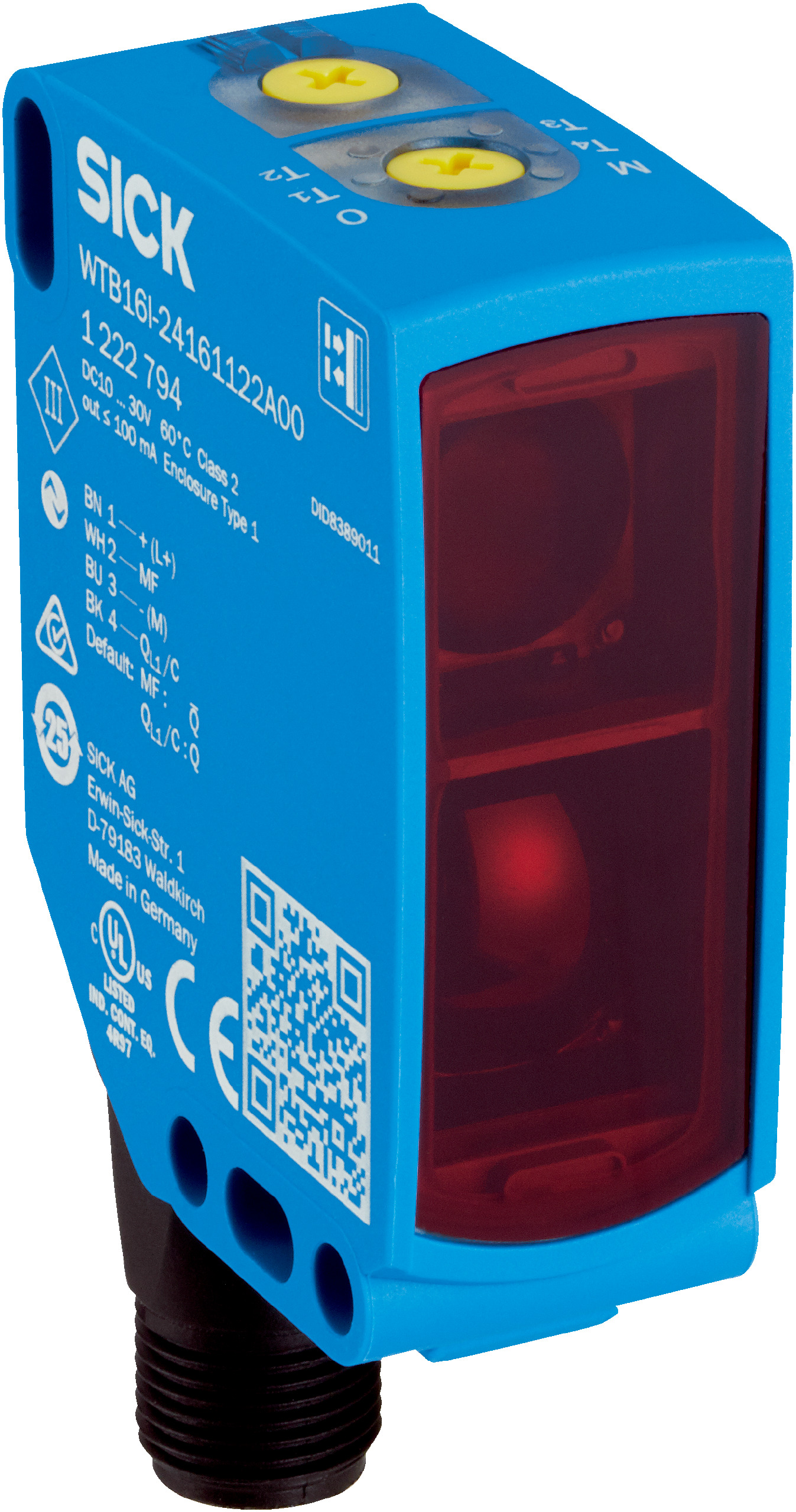

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IO-Link Enabled | by SICK
The Photoelectric Proximity Sensor WTB16P-24161122A00 features background suppression and an adjustable sensing range from 10 mm to 1000 mm, making it ideal for industrial automation and object detection. With a fast response time of ≤ 500 µs and an IO-Link interface for easy configuration, this sensor is built for reliability and efficiency in manufacturing and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1000 mm, adjustable switching threshold 100 mm to 1000 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 6 mm at 500 mm distance
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1 with 2.3 ms cycle time
- LED indicators: BluePilot for sensing range and time function, green for power, yellow for object detection
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot Teach-Turn adjustments for sensing range and time function
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40 °C to +60 °C
- LED indicators for sensing range, time function, operating status, and object detection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safe operation, especially for integration with IO-Link systems.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16P-24161122A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
