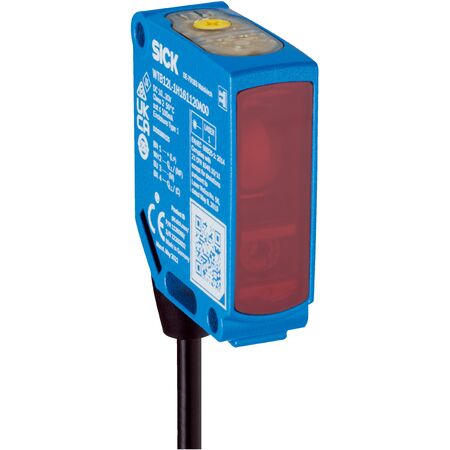

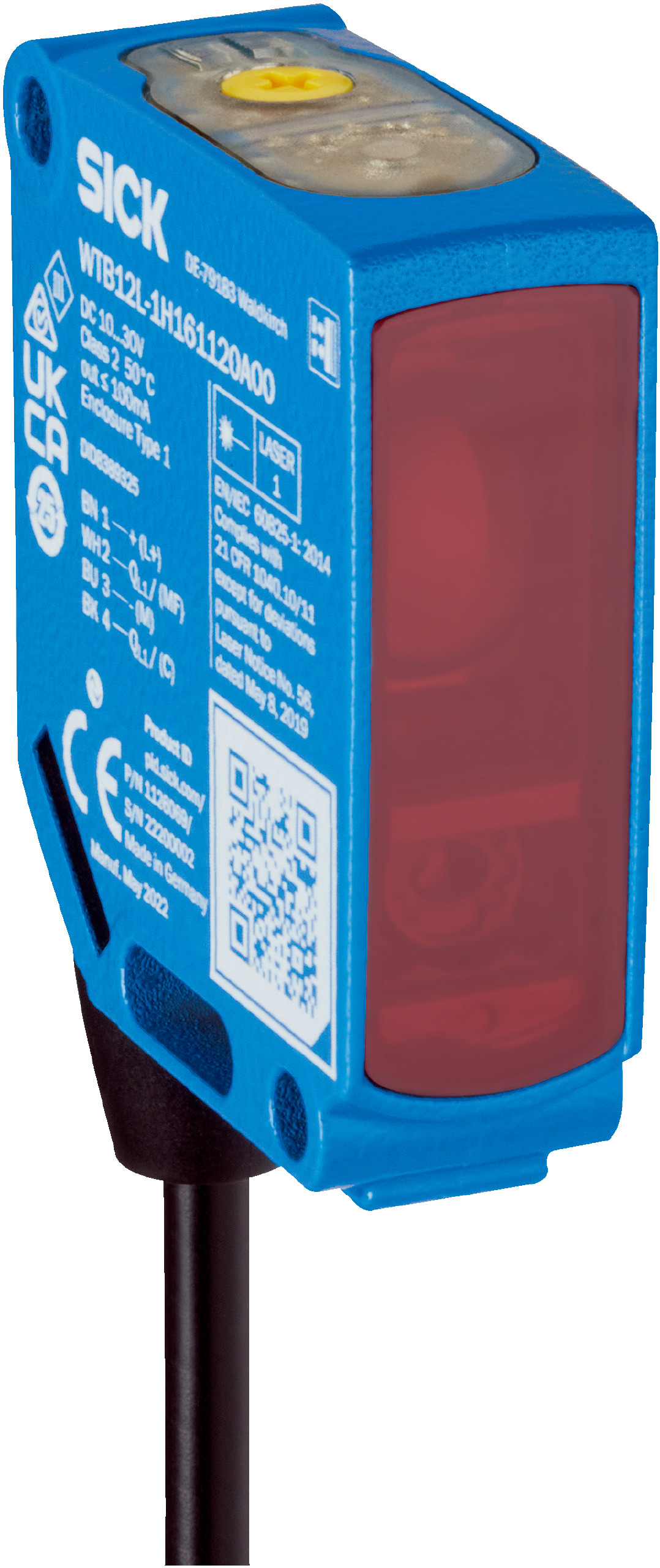

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTB12L-1H161A20A00 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 80 mm to 1,200 mm. With a visible red laser light source and robust IP66/IP67/IP69 protection, it excels in high-speed object detection and is perfect for detecting small or tilted objects in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.132 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 80 mm to 1,200 mm
- Visible red laser light source with ellipse-shaped light spot
- BluePilot for easy sensing range adjustment
- IO-Link communication for sensor configuration and smart task functions
- High protection rating IP66, IP67, and IP69
- Robust metal zinc diecast housing with plastic PMMA front screen
- Dual complementary push-pull digital outputs with light/dark switching
- Fast response time of ≤ 15 ms and switching frequency up to 30 Hz
- Long average service life of 50,000 hours at 25°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Detection of small, perforated, and tilted objects
- High-speed object detection
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing reduces waste and extends product life
- Energy-efficient laser light source minimizes power consumption
- High resistance to cleaning agents extends sensor lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB12L-1H161A20A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
