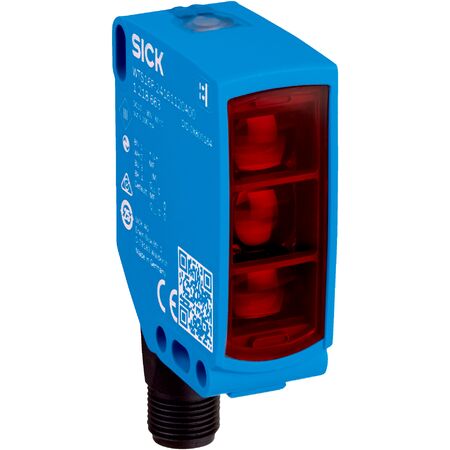

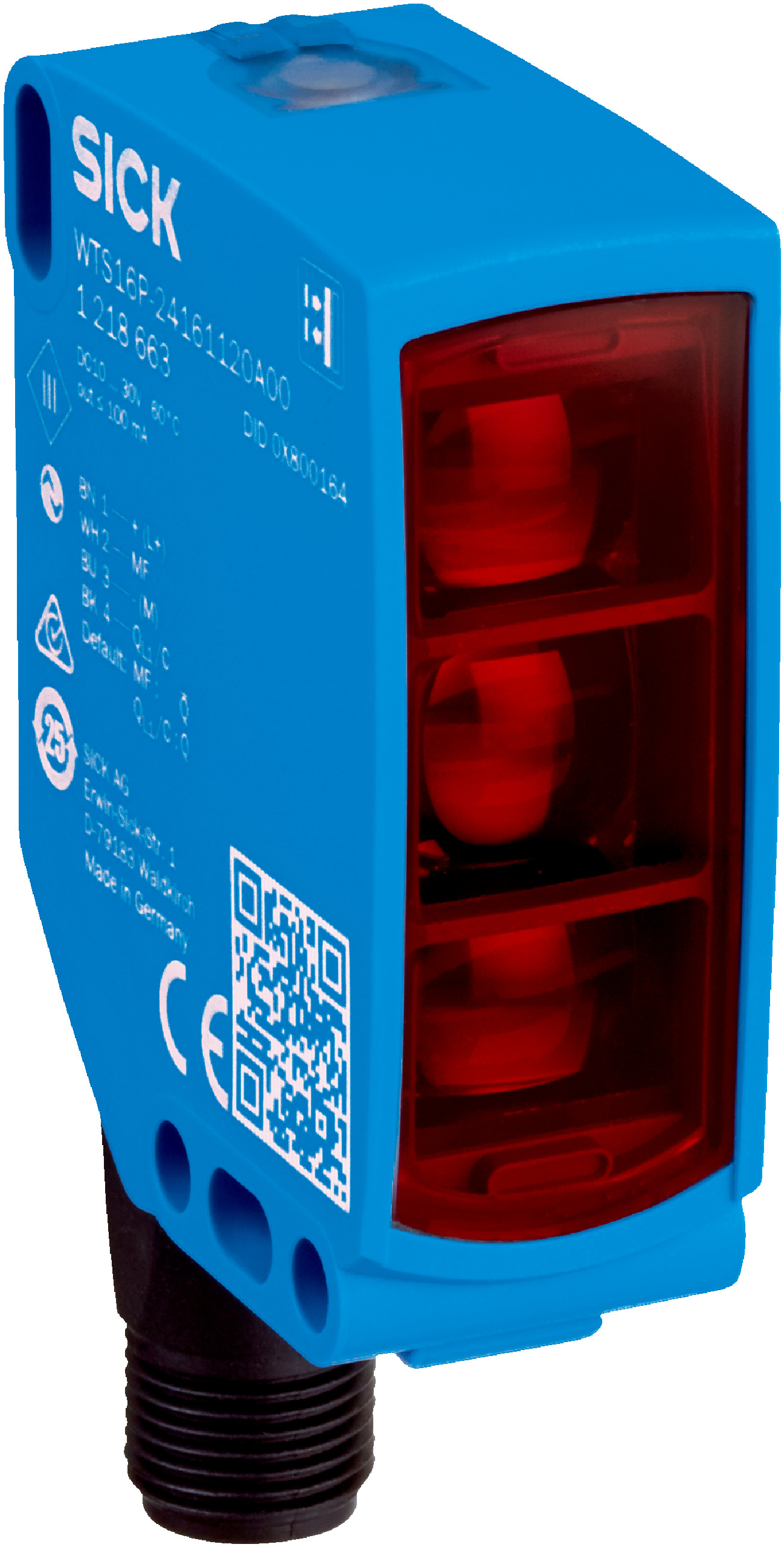

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 100 mm to 750 mm. With its robust IP66/IP67/IP69 rated housing and PinPoint LED technology, it excels in detecting shiny or uneven objects in harsh environments, making it ideal for various applications in manufacturing and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 750 mm adjustable, recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- TwinEye technology and MultiPulse for enhanced detection
- Adjustable sensing range from 100 mm to 750 mm
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours
- IO-Link interface for sensor parameter configuration
- Dual complementary push-pull digital outputs (PNP/NPN)
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connection and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16P-24161300CZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
