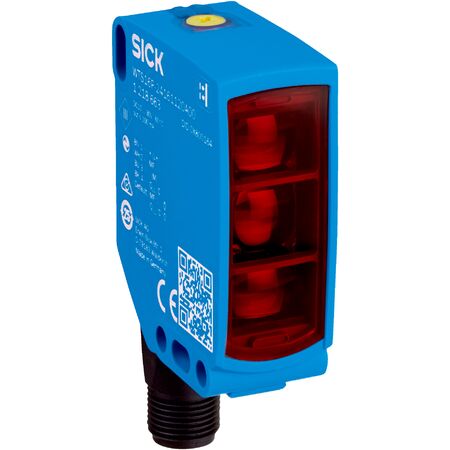

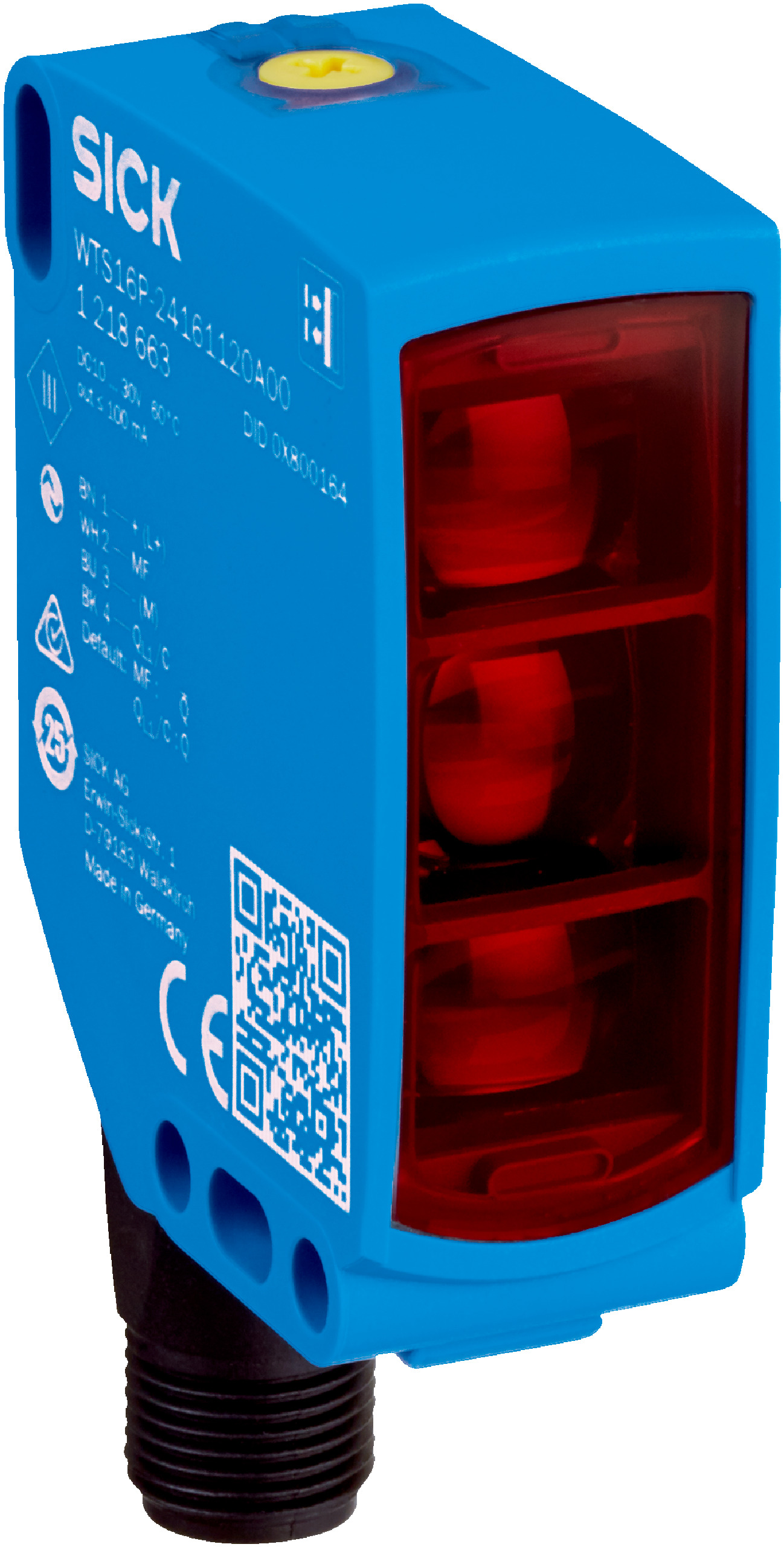

Photoelectric Proximity Sensor WTS16P-24161320CZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTS16P-24161320CZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 50 mm to 750 mm. With its robust IP66/IP67/IP69 protection, this sensor is perfect for detecting shiny or uneven objects in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 750 mm adjustable, recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA output current
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1 with 16-bit process data
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- TwinEye technology and MultiPulse for reliable detection
- Adjustable sensing range from 100 mm to 750 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range setting
- Dual complementary push-pull digital outputs (PNP/NPN)
- High protection class III with IP66, IP67, and IP69 ratings
- Robust plastic VISTAL® housing with PMMA front screen
- Self-monitoring MultiPulse technology
- Shock resistance up to 50 g and vibration resistance 10 Hz to 2000 Hz
- IO-Link V1.1 communication interface for advanced configuration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTS16P-24161320CZZ Photoelectric Proximity Sensor is available for immediate purchase. Ideal for industrial automation and object detection applications requiring reliable background suppression and robust sensor performance.
