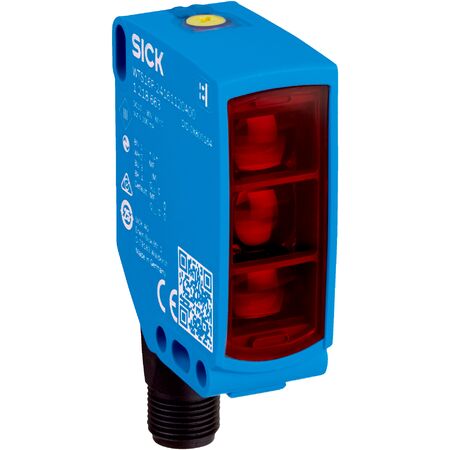

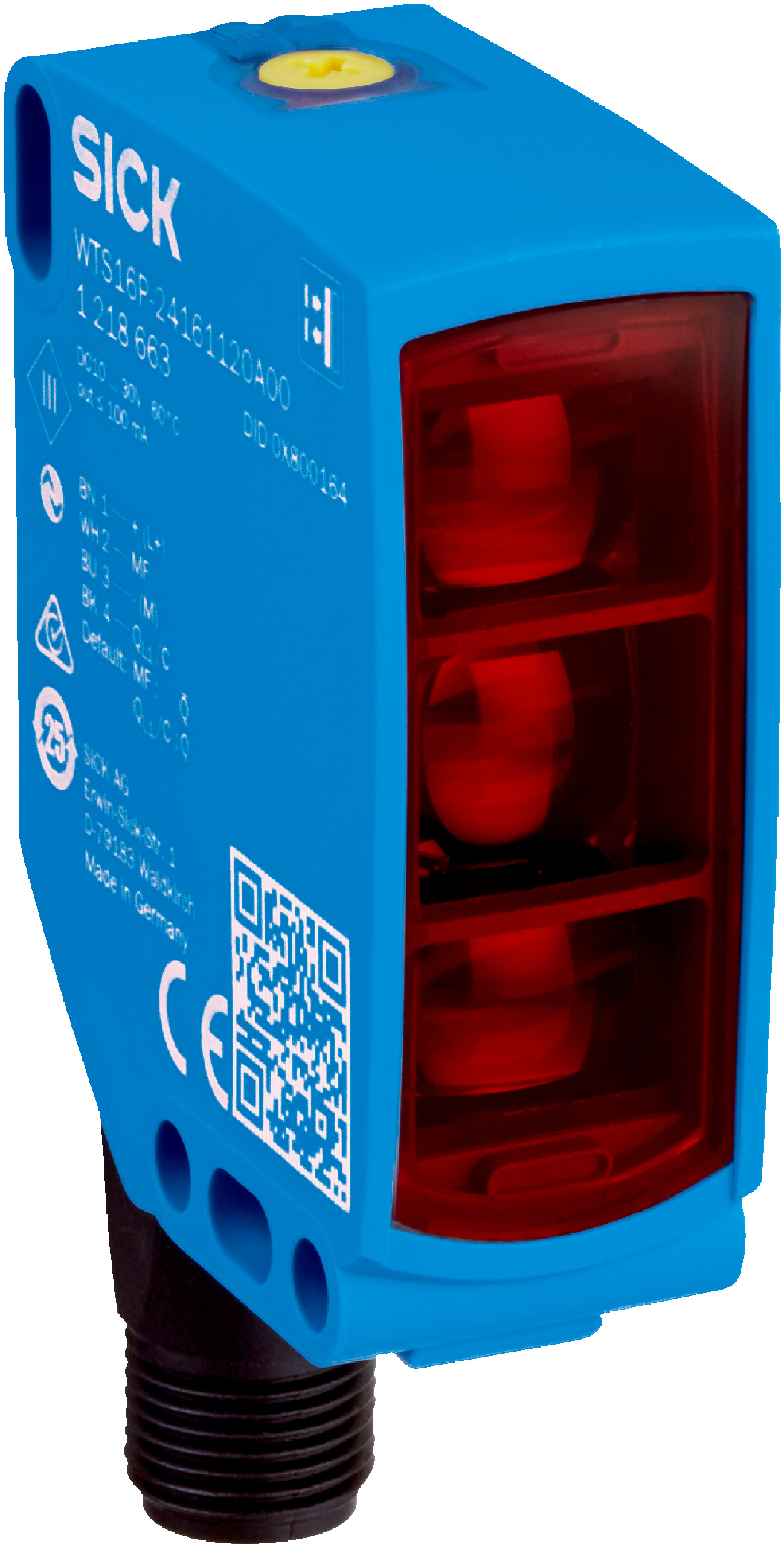

Photoelectric Proximity Sensor WTS16P-24162320CZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTS16P-24162320CZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and adjustable sensing range from 50 mm to 750 mm. With its PinPoint LED light source and high shock resistance, this sensor is perfect for detecting uneven or shiny objects in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 750 mm adjustable, recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 8 mm at 300 mm distance
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA output current
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms and 6 ms shocks
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Communication: IO-Link V1.1 with 16-bit process data
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- TwinEye technology and MultiPulse for reliable detection
- Adjustable sensing range from 50 mm to 750 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- Dual complementary push-pull digital outputs (PNP/NPN)
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Self-monitoring with MultiPulse technology
- IO-Link V1.1 communication interface for advanced configuration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Durable IP69 rated housing minimizes environmental impact by reducing sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTS16P-24162320CZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
