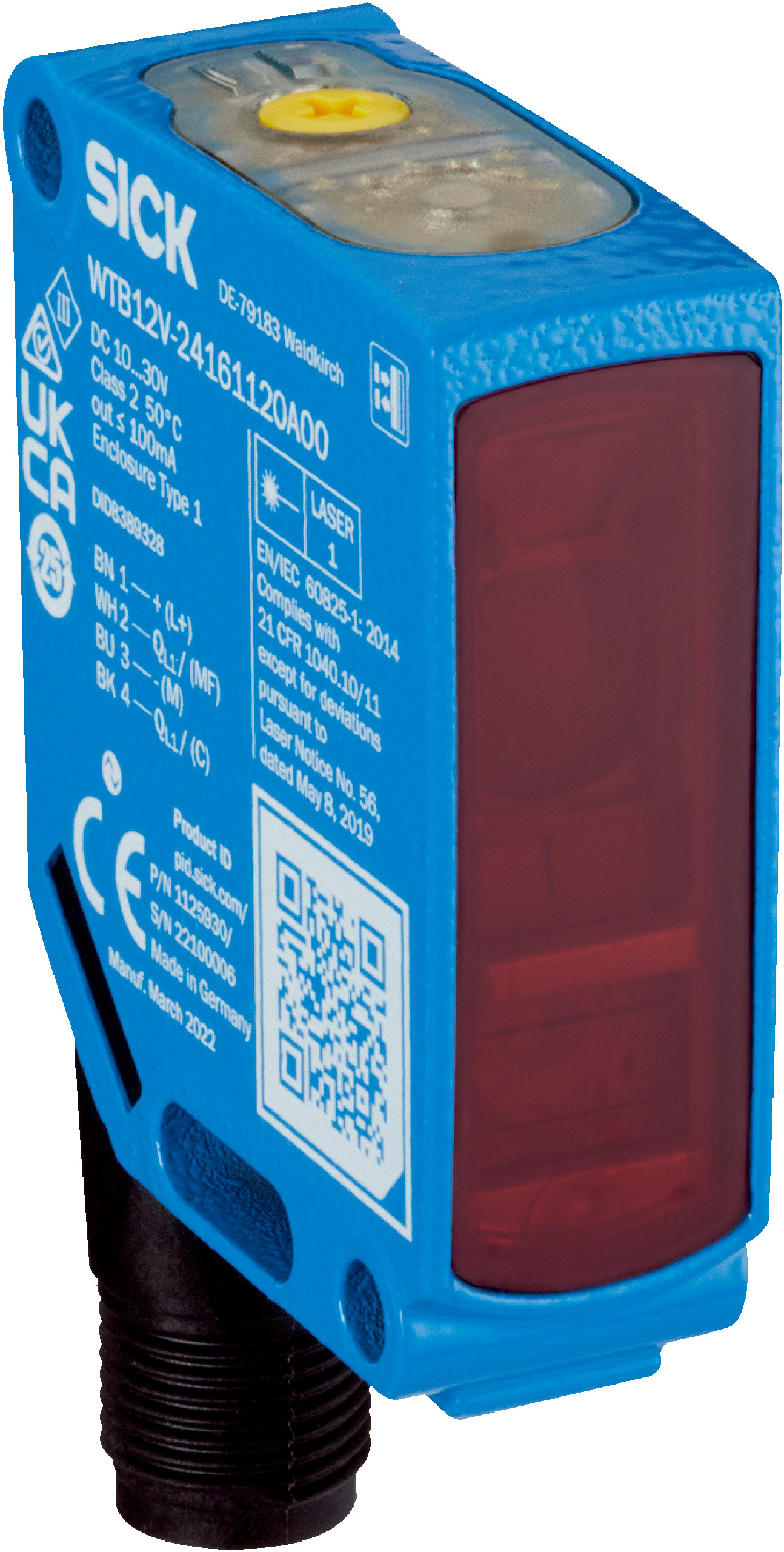

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for high-speed object detection with an adjustable sensing range from 80 mm to 850 mm. Featuring a visible red laser light source and robust metal housing, it ensures reliable performance in industrial automation applications. With a fast response time of ≤ 500 µs and IP66/IP67/IP69 ratings, this sensor is perfect for detecting small and perforated objects while providing protection against environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 80 mm to 850 mm adjustable, recommended 100 mm to 300 mm
- Light source: Visible red laser, wavelength 655 nm
- Laser class: 1
- Pulse duration: 4 µs
- Maximum pulse power: < 6.74 mW
- Smallest detectable object: 2.5 mm at 300 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: up to 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal zinc diecast
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 90 mm to 850 mm
- Visible red laser light source with ellipse-shaped light spot
- High accuracy with smallest detectable object size of 2.5 mm
- IO-Link communication for sensor parameter configuration
- Robust metal zinc diecast housing with IP66, IP67, and IP69 ratings
- LED indicators for sensing range, operating status, and object detection
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Protection against reverse polarity, overcurrent, and short circuits
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small and perforated objects
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

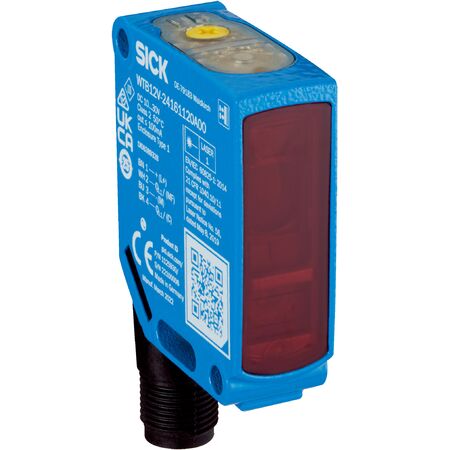

The SICK WTB12L-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
