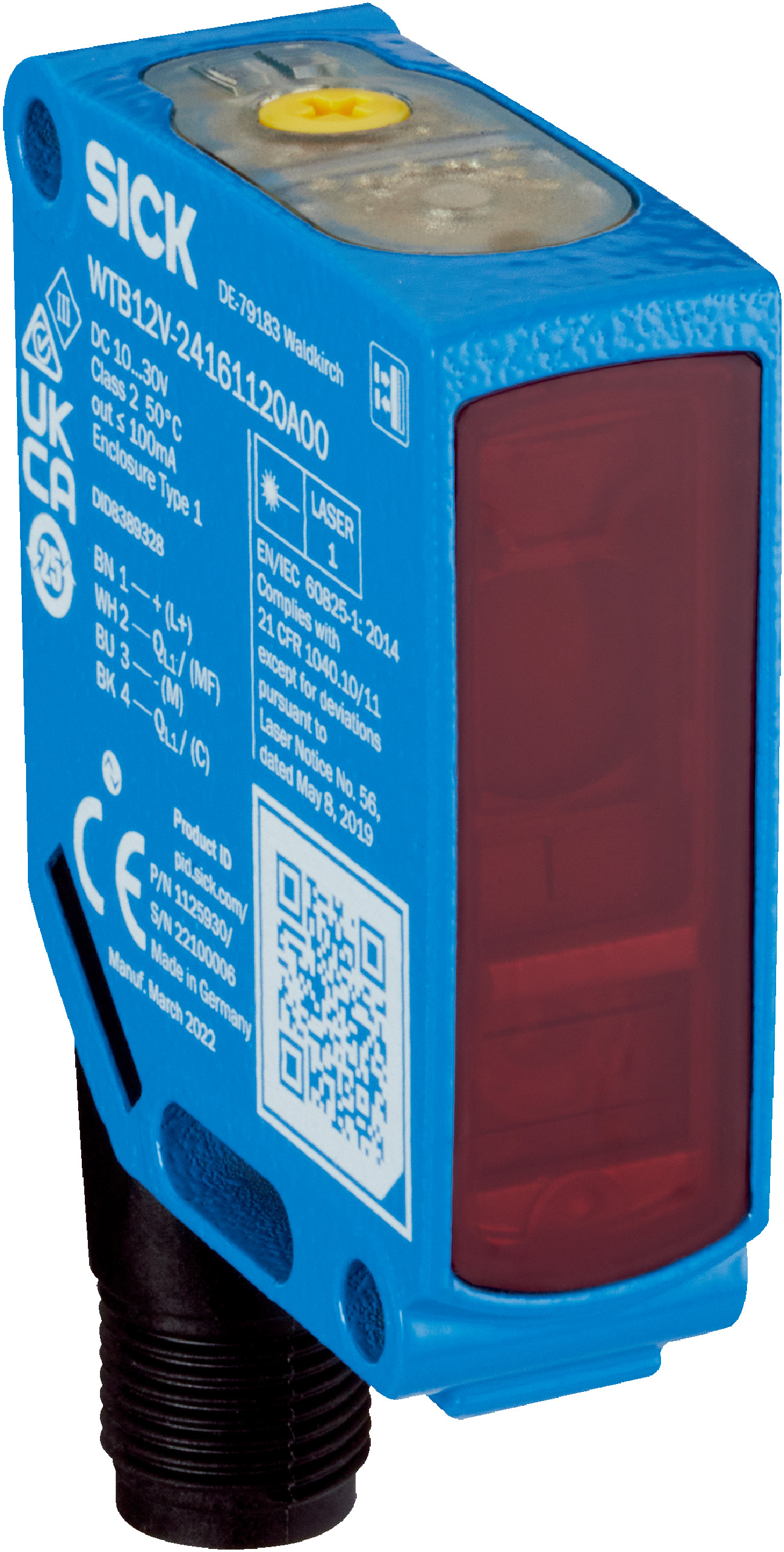

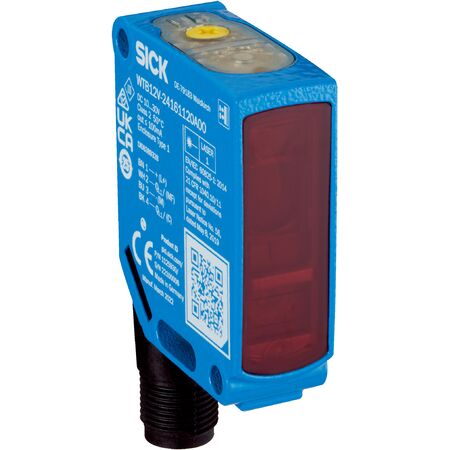

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor WTB12V-24161120A00 is designed for high-speed object detection in industrial automation. With an adjustable sensing range from 50 mm to 350 mm and a robust metal housing rated IP66/IP67/IP69, it ensures reliable performance in demanding environments. Ideal for detecting small and perforated objects, this sensor features IO-Link communication for easy configuration and LED indicators for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 40 mm to 350 mm, adjustable switching threshold 50 mm to 350 mm
- Light source: Laser, visible red light, wavelength 655 nm
- Light spot size: 1.2 mm x 32 mm at 100 mm distance
- Laser class: 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN, light/dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Housing: Metal zinc diecast with plastic front screen and connector
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 50 mm to 350 mm
- Visible red laser light with line-shaped light spot
- High switching frequency up to 1000 Hz
- IO-Link communication for sensor configuration
- Robust metal zinc diecast housing with IP66, IP67, and IP69 ratings
- LED indicators for sensing range, power, IO-Link mode, and object detection
- Protection against reverse polarity, overcurrent, and short circuits
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and configuration via IO-Link.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small and perforated objects
- Background suppression sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB12V-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
