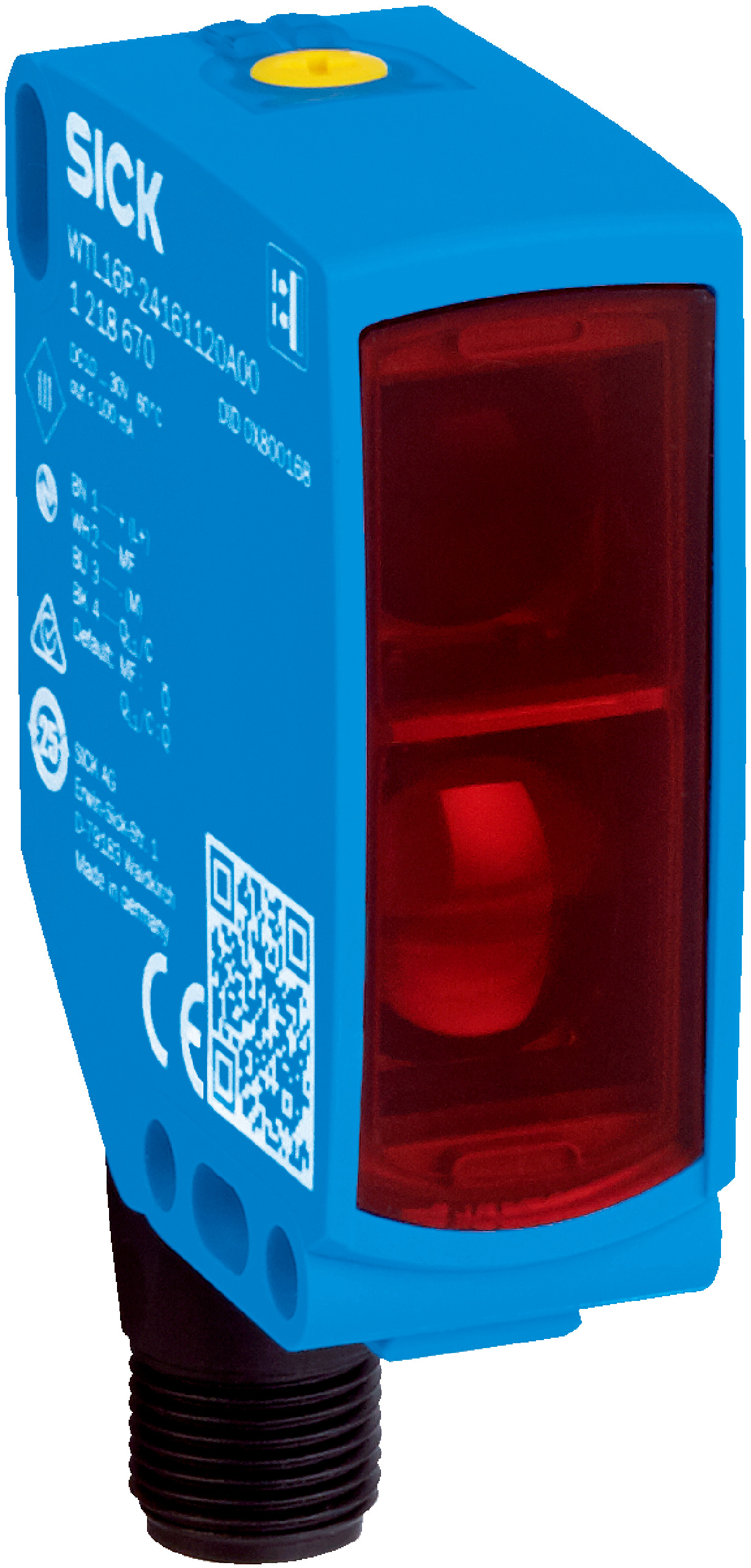

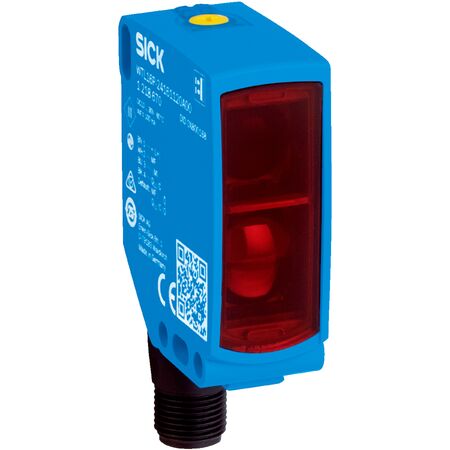

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor WTL16P-24162120A00 features advanced background suppression technology, making it ideal for industrial automation and object detection. With an adjustable sensing range from 10 mm to 500 mm and a robust IP66/IP67/IP69 rating, this sensor is built for harsh environments. Its PinPoint LED light source ensures precise detection, while dual complementary push-pull outputs provide versatile connectivity options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 500 mm adjustable; recommended 150 mm to 250 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 3 mm x 30 mm at 200 mm distance
- Response time: ≤ 500 µs; switching frequency up to 1,000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC; current consumption ≤ 30 mA
- Protection class: III; enclosure rating IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1 with 2.3 ms cycle time
- Material: Plastic housing (VISTAL®), front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using LineSpot technology
- Sensing range adjustable from 10 mm to 500 mm with recommended range 150 mm to 250 mm
- Visible red light PinPoint LED with line-shaped light spot (3 mm x 30 mm at 200 mm)
- BluePilot for easy sensing range setting and IO-Link for sensor parameter configuration
- Dual complementary push-pull digital outputs with light/dark switching
- High shock and vibration resistance with IP66, IP67, and IP69 enclosure ratings
- Long LED service life of 100,000 hours at 25°C
- Multiple LED indicators for sensing range, power, IO-Link mode, and object presence
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting perforated objects
- Use in harsh environments requiring IP66 to IP69 protection
- Automation systems requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and resistance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTL16P-24162120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
