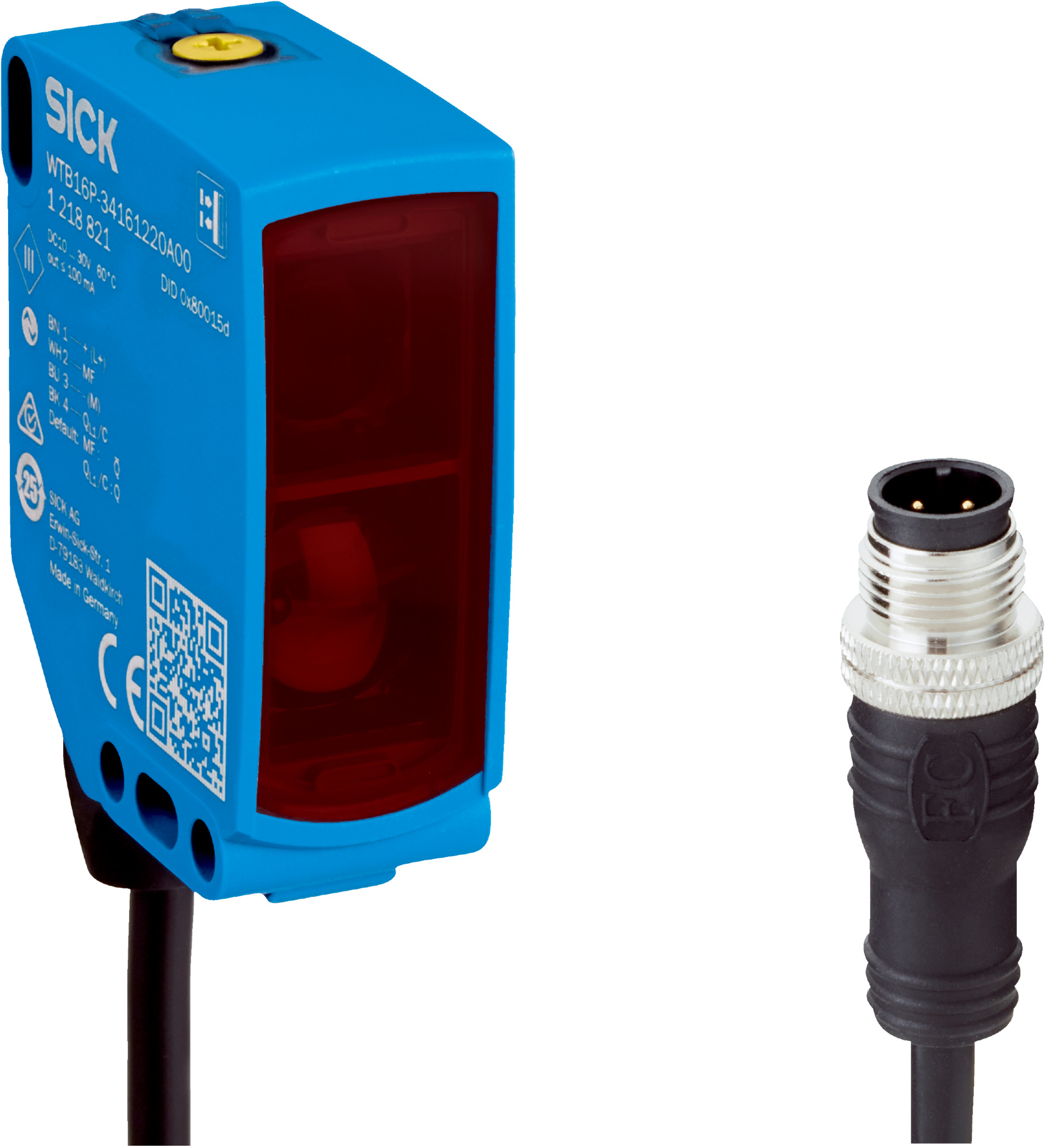

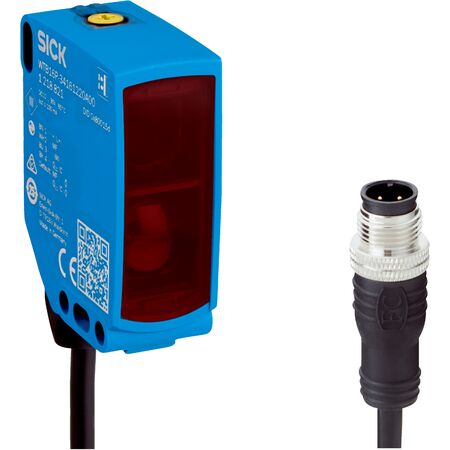

Photoelectric Proximity Sensor WTB16P-34161120A00 | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTB16P-34161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 100 mm to 1000 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Featuring a robust IP66/IP67/IP69 rated housing and IO-Link communication, this sensor is perfect for material handling, quality control, and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1000 mm, adjustable switching threshold 100 mm to 1000 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 6 mm at 500 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Housing material: Plastic VISTAL®, front screen PMMA
- Cable: PVC, 4-pin M12 male connector, 318 mm length
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability and fast response time (≤ 500 µs)
- Dual complementary push-pull digital outputs (PNP/NPN)
- IO-Link communication interface for sensor configuration
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- BluePilot for easy sensing range adjustment
- Long LED service life of 100,000 hours at 25 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and presence detection
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16P-34161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
