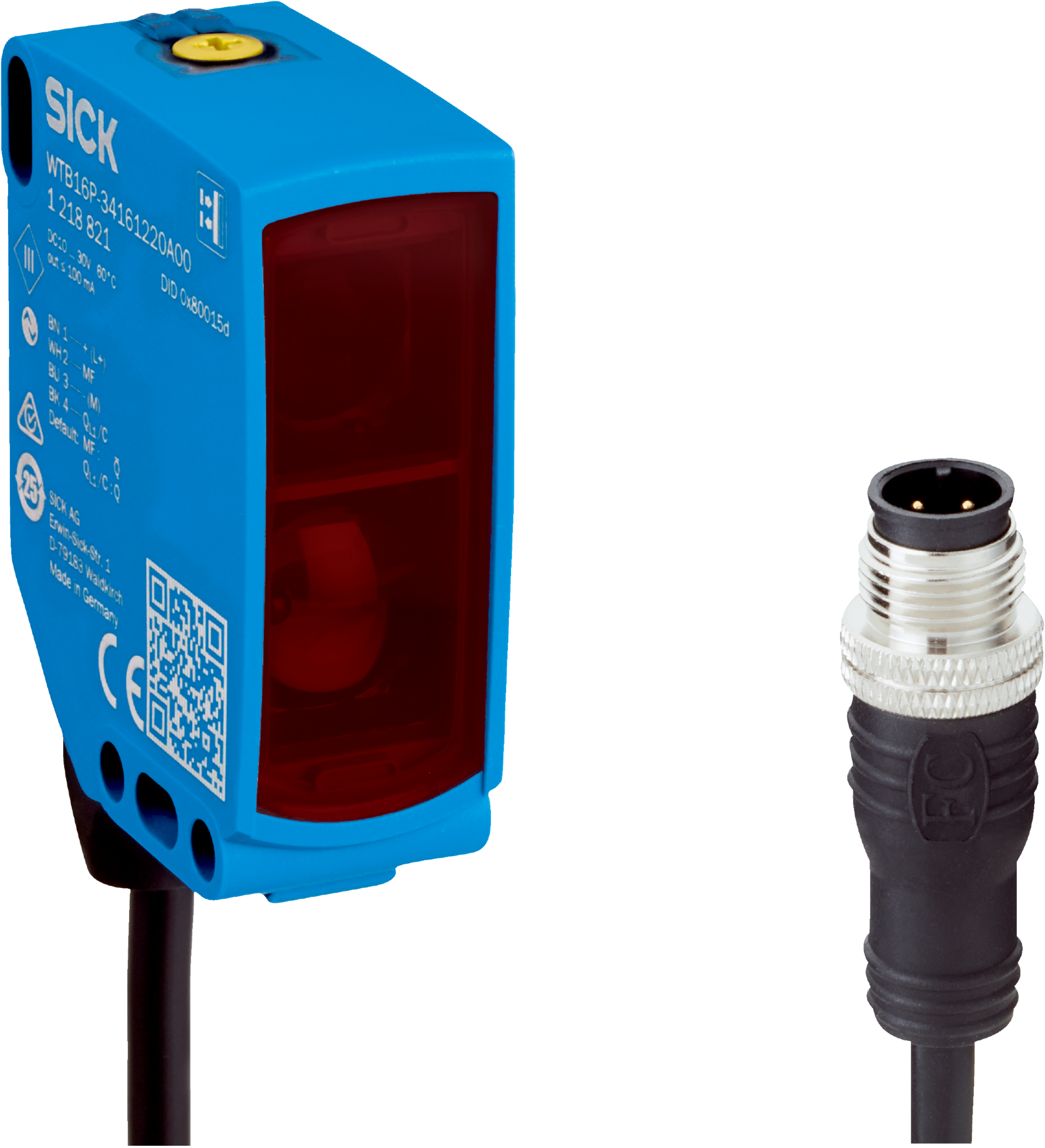

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 10 mm to 1,500 mm. With a robust IP66/IP67/IP69 rated housing and an infrared LED light source, it ensures reliable object detection in various applications, including material handling and safety detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1,500 mm, adjustable switching threshold 100 mm to 1,500 mm
- Reference object: 90% remission factor (standard white according to DIN 5033)
- Minimum distance between sensing range and background: 70 mm at 600 mm distance
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 12 mm at 800 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms and 6 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Cable with M12 male connector, 4-pin, 318 mm length
- Material: Plastic VISTAL® housing, PMMA front screen, PVC cable
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 100 mm to 1,500 mm
- Sensing range from 10 mm to 1,500 mm, optimal 100 mm to 600 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm distance
- BluePilot for easy sensing range adjustment
- Dual complementary push-pull digital outputs (PNP/NPN)
- High switching frequency up to 1,000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection
- Wide ambient operating temperature from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
- Long LED service life of 100,000 hours at 25 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Packaging and sorting systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient infrared LED light source minimizes power consumption
- Durable housing reduces environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

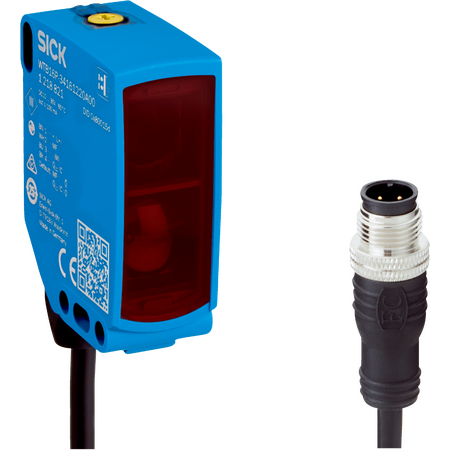

The SICK WTB16I-34115120ZZZZ2ZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
