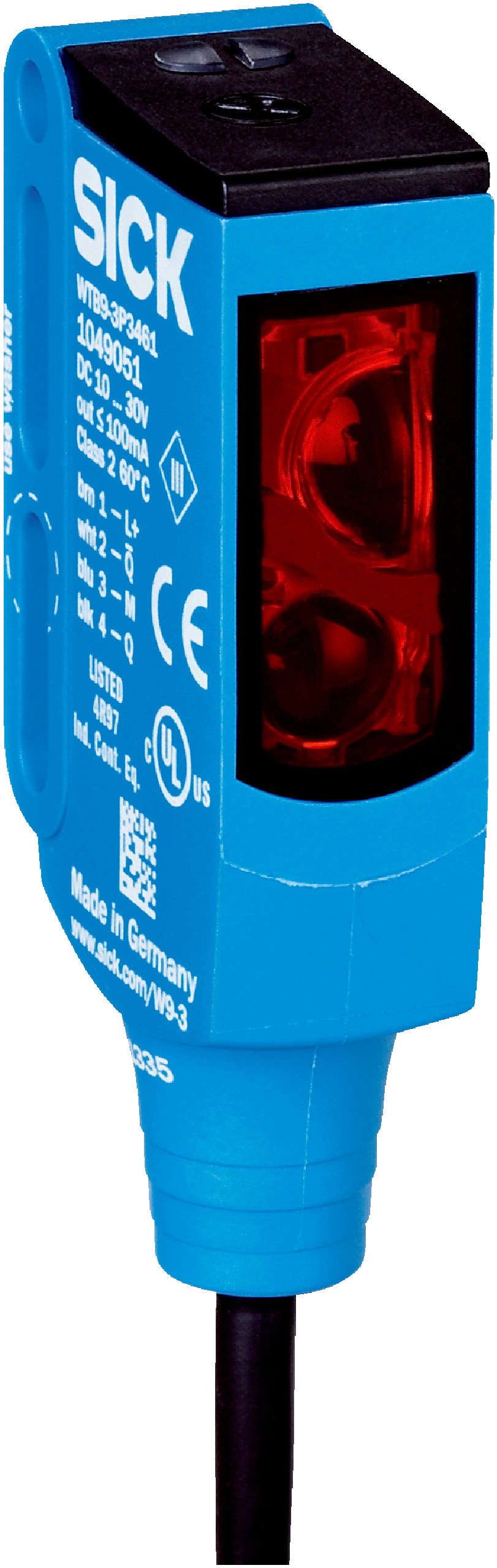

Photoelectric Proximity Sensor WTB9-3P3461S13 | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P3461S13 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range adjustable from 20 mm to 350 mm and a high switching frequency of 1,500 Hz, it ensures reliable performance in manufacturing and packaging applications. Its robust IP66/IP67/IP69K rated housing and visible red light with PinPoint LED make it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P3461S13 | Background Suppression | Adjustable Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1050772
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 350 mm
- Type of light: Visible red light, wavelength 650 nm
- Light source: PinPoint LED
- Light spot size: Ø 4.5 mm at 75 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Adjustable sensing range from 20 mm to 350 mm
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1,500 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable connection with M12 male connector, 4-pin
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P3461S13 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
