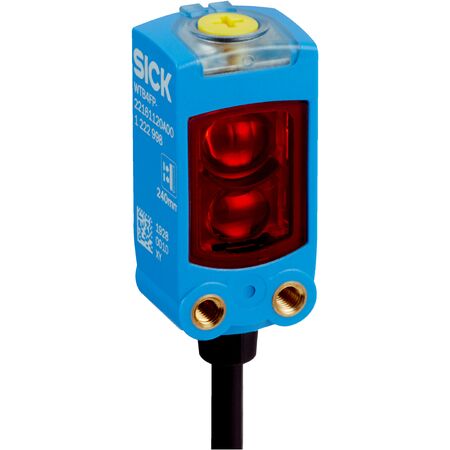

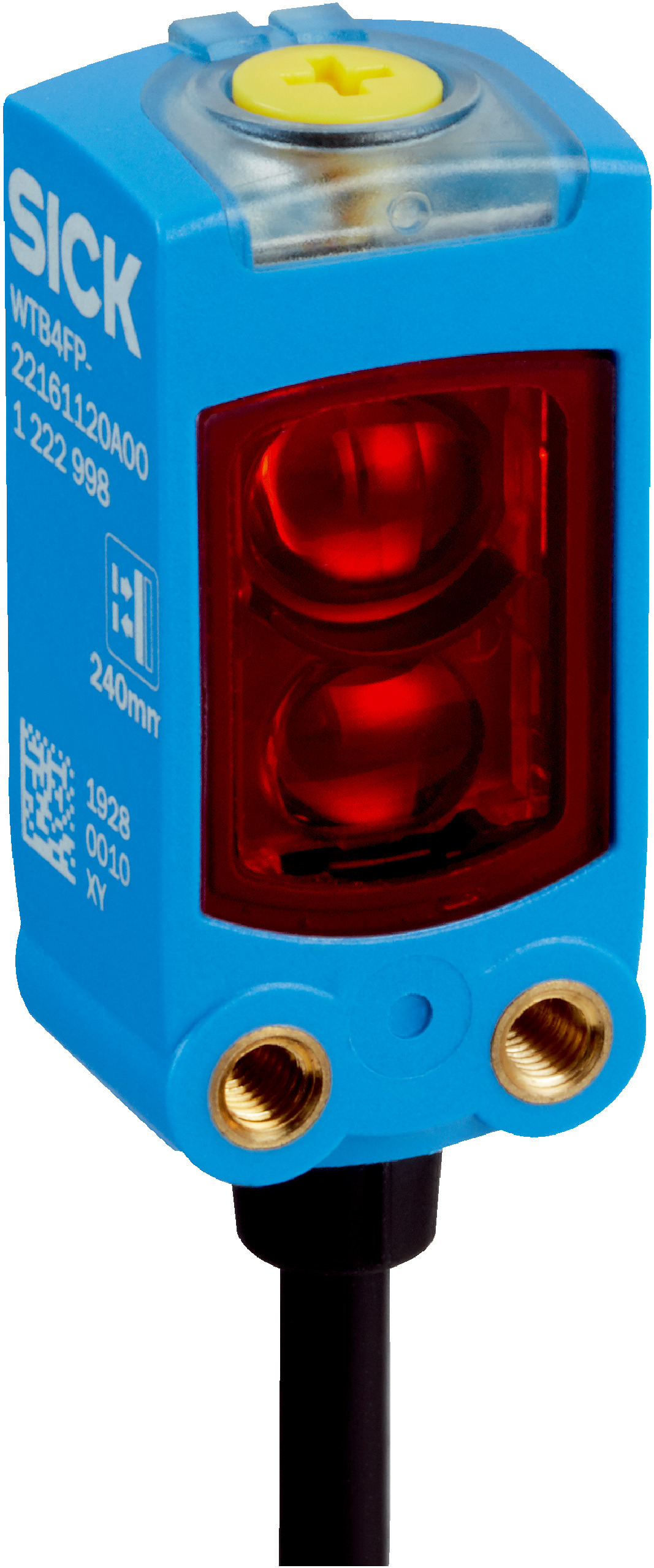

Photoelectric Proximity Sensor WTB4FT-1G311120ZZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The WTB4FT-1G311120ZZZ Photoelectric Proximity Sensor is designed for precise object detection, featuring background suppression and an adjustable sensing range from 7 mm to 120 mm. With a robust IP66/IP67 rated enclosure, it’s perfect for industrial automation applications, ensuring reliable performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4FT-1G311120ZZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1113178
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression, DoubleLine
- Sensing range: 7 mm to 120 mm, adjustable switching threshold 15 mm to 120 mm
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Light spot size: 1.2 mm x 17 mm at 50 mm distance
- Response time: ≤ 1,000 µs
- Switching frequency: 500 Hz
- Output type: Push-pull PNP/NPN, light switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and DoubleLine technology
- Sensing range from 7 mm to 120 mm with adjustable switching threshold
- Visible red light PinPoint LED with line-shaped, two parallel line-shaped light spots
- BluePilot for easy sensing range adjustment
- LED indicators for sensing range, power, and object presence
- High shock and vibration resistance
- IP66 and IP67 rated enclosure for robust protection
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure correct setup and compliance with electrical safety standards.
Applications
- Detecting flat objects
- Detecting objects wrapped in film
- Detecting perforated objects
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB4FT-1G311120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
