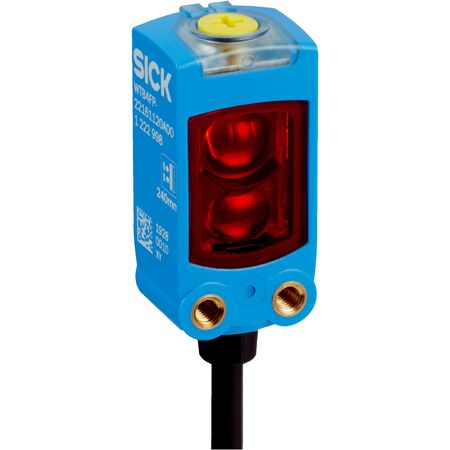

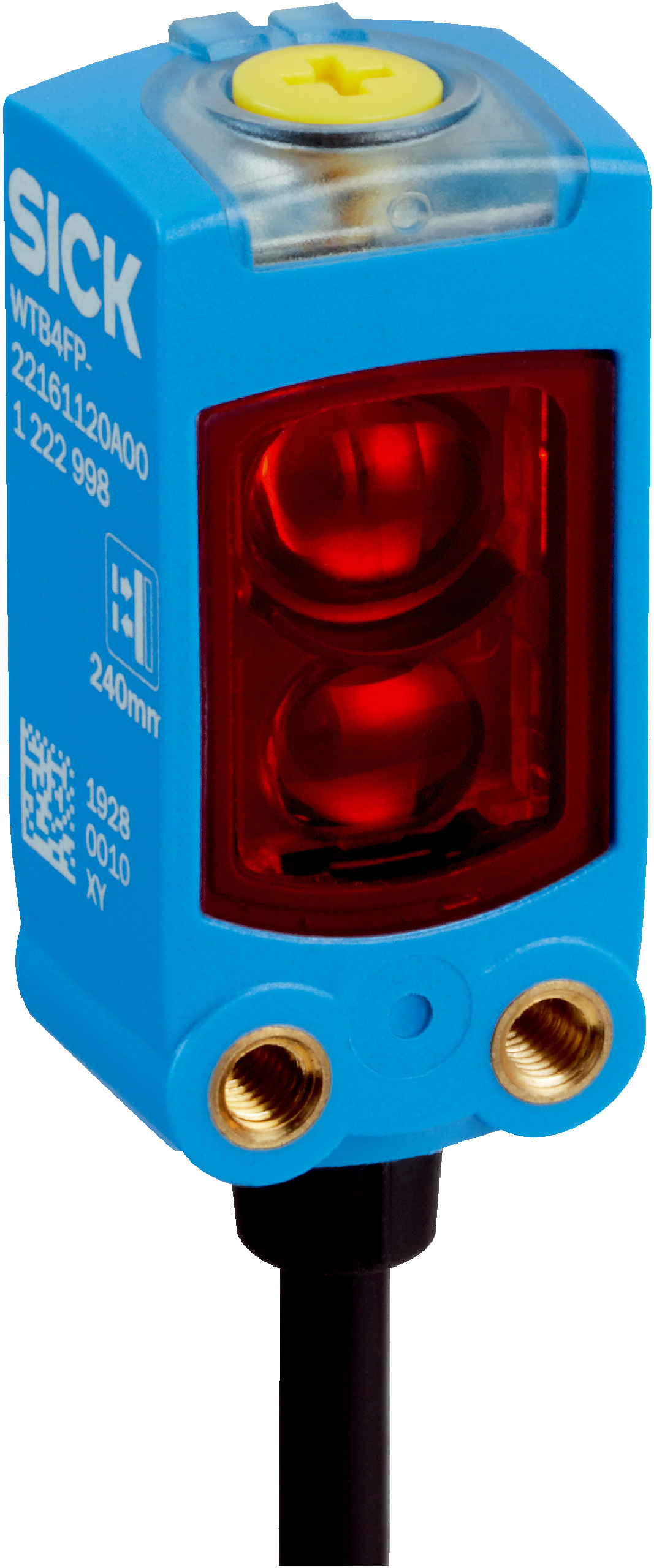

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring adjustable sensing ranges from 6 mm to 250 mm and a PinPoint LED infrared light source. With a robust IP66/IP67 rated housing, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and quality inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1113167
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link photoelectric sensor, Infrared proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 6 mm to 250 mm adjustable, recommended 40 mm to 160 mm
- Light source: PinPoint LED, infrared light, 635 nm wavelength
- Light spot size: Ø 4.2 mm at 130 mm distance
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Housing material: Plastic VISTAL®
- Connection: 4-wire cable, 2 m length
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- EMC standard: EN 60947-5-2
- LED risk group: Free group according to EN 62471
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 6 mm to 250 mm
- PinPoint LED infrared light source with 635 nm wavelength
- High precision with smallest detectable object size of 0.2 mm
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN)
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
- Comprehensive diagnostic features including device temperature and operating hour counter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and integration with IO-Link systems.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable IP66/IP67 rated housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FI-1H161120A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
