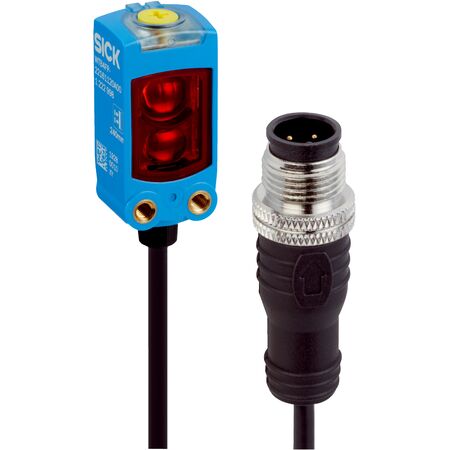

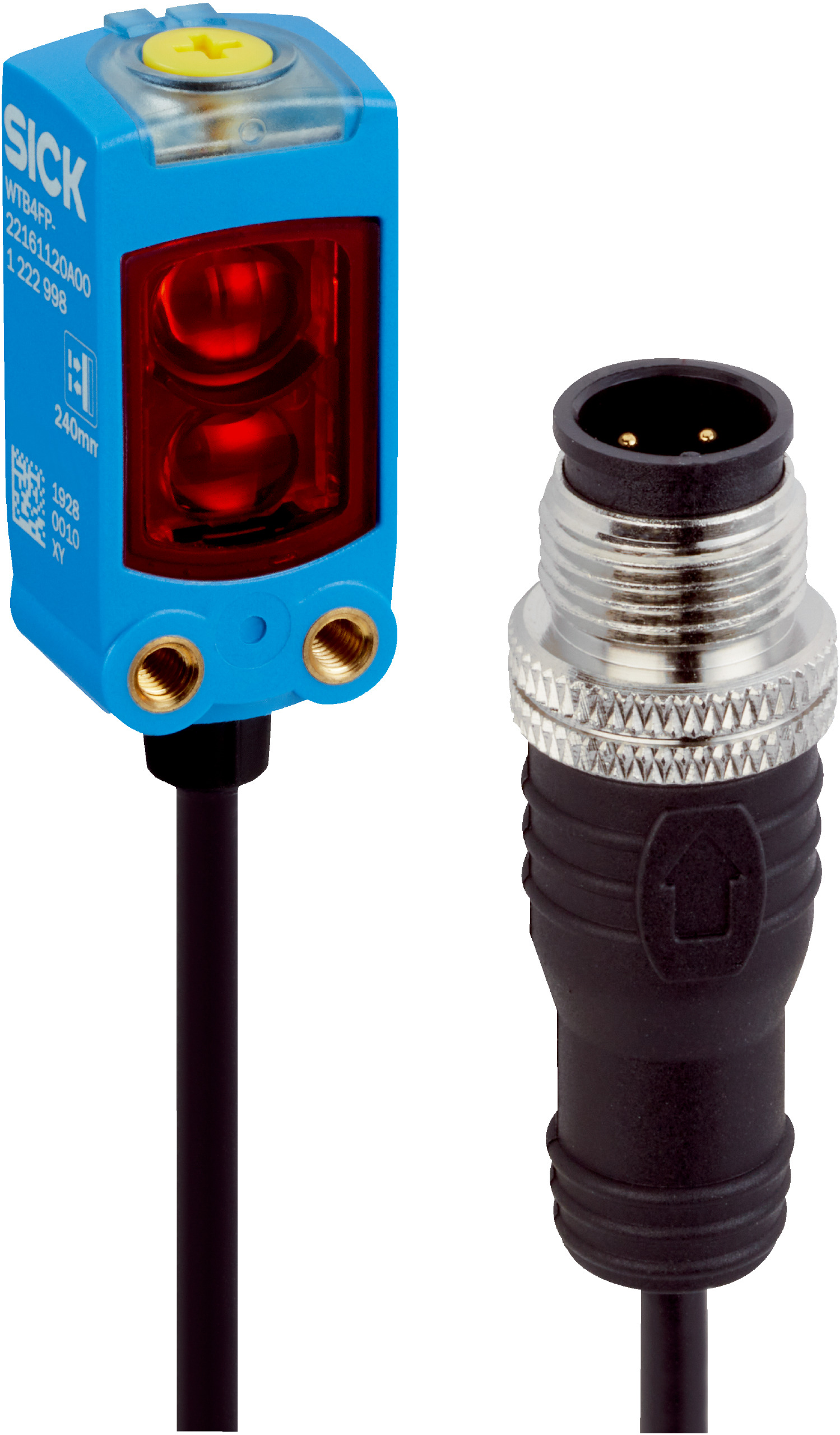

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4FP-84167120A00 features background suppression and an adjustable sensing range from 15 mm to 220 mm, making it ideal for industrial automation and precise object detection. With a fast response time of ≤ 500 µs and a robust IP66/IP67 rated housing, this sensor is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1123752
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link photoelectric sensor, SICK proximity sensor, Red light photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 4.2 mm at 130 mm distance
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Output type: Push-pull PNP/NPN, light switching mode
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1 with COM2 data rate (38.4 kBaud)
- Housing material: Plastic VISTAL®, front screen PMMA
- Cable: PVC, 4-pin M12 male connector, 182 mm length
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 15 mm to 220 mm
- PinPoint LED visible red light with 635 nm wavelength
- Smallest detectable object size of 0.2 mm at 130 mm distance
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Factory and process automation requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-84167120A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
