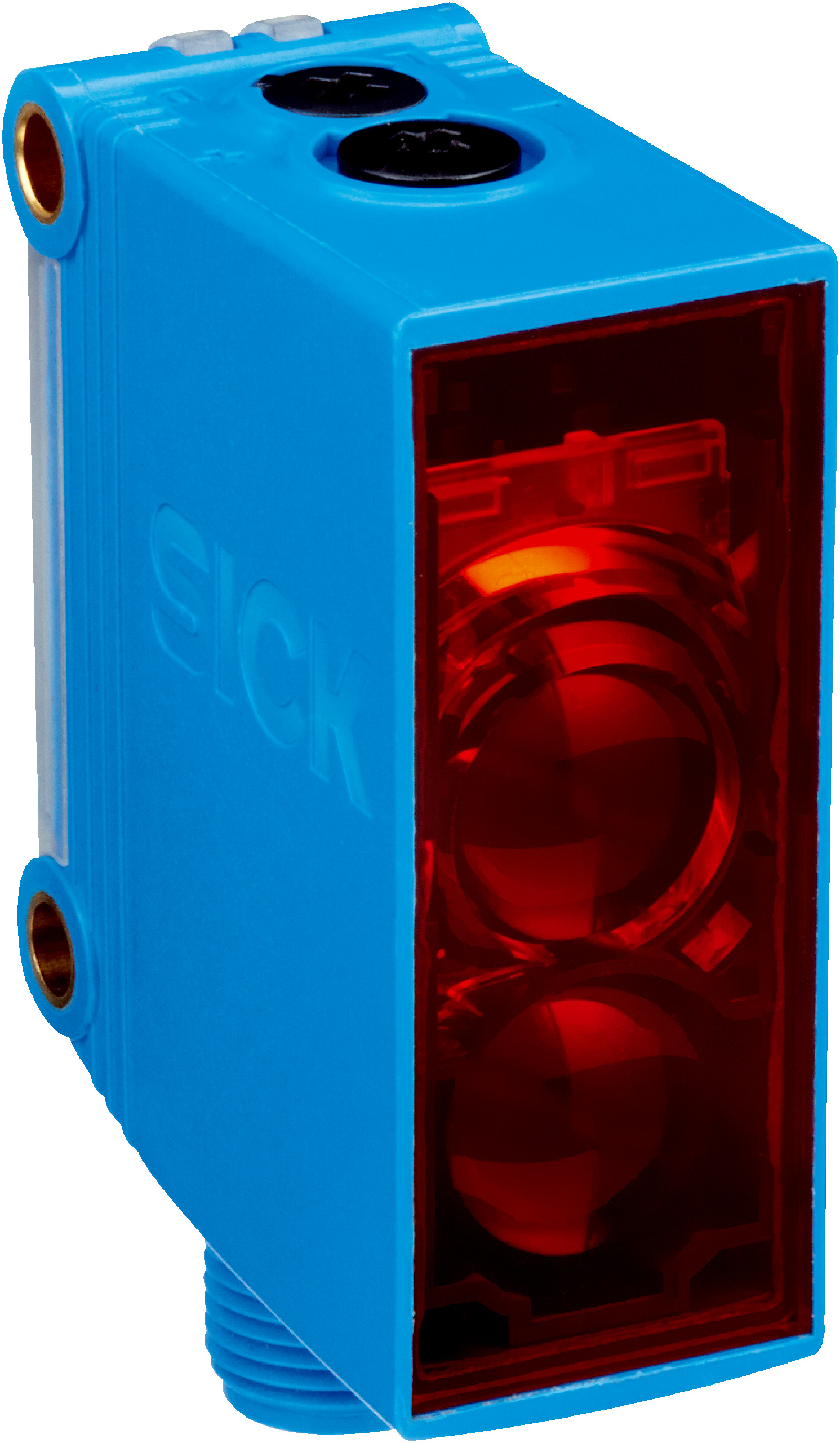

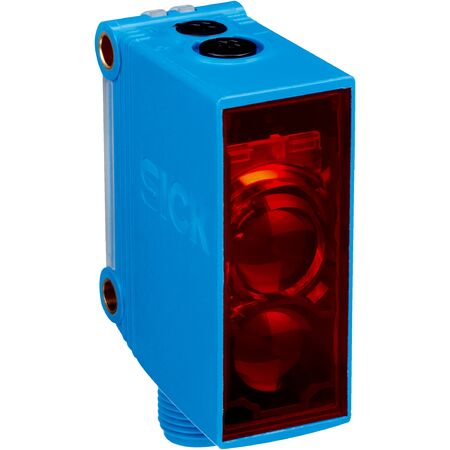

Photoelectric Proximity Sensor GTB10-F4421 | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The GTB10-F4421 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 20 mm to 1200 mm. With a fast response time of ≤ 500 µs and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 1200 mm
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size: Ø 22 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, complementary function
- Switching mode: Light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D types
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Certifications: UL File No. NRKH.E348498 & NRKH7.E348498, UL325
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Adjustable sensing range from 20 mm to 1200 mm
- Potentiometer with 5 turns for precise adjustment
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Male connector M12, 4-pin for easy connection
- Operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-F4421 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
