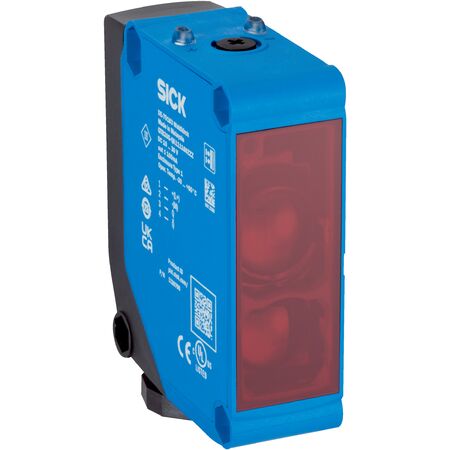

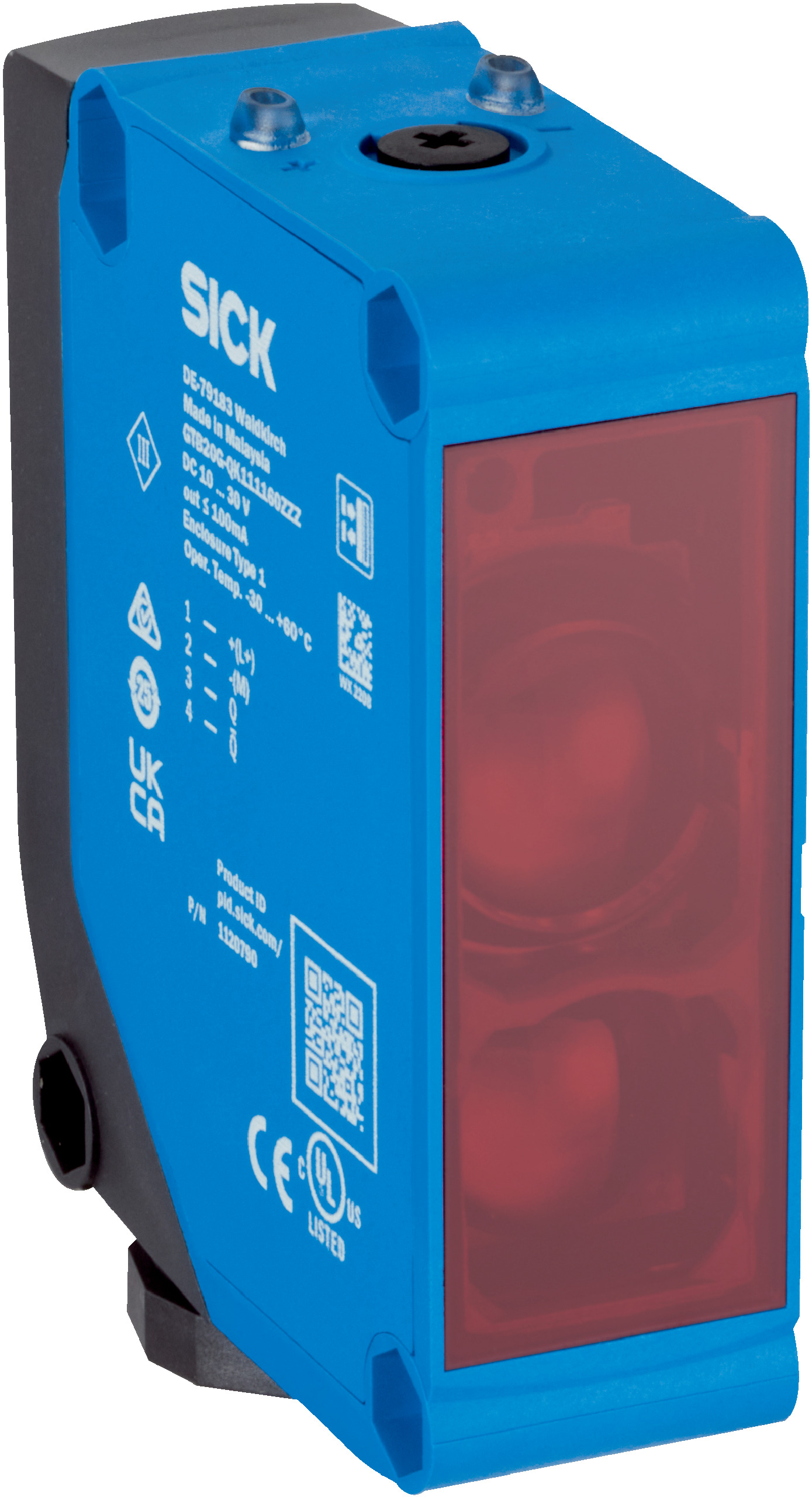

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB20G-QLRC1160ZZZ features background suppression and an adjustable sensing range from 0.1 m to 3 m, making it ideal for industrial automation and safety detection applications. With a robust IP67 rating and a visible red LED light source, this sensor ensures reliable performance in challenging environments, perfect for manufacturing process control and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m minimum, 3 m maximum
- Adjustable switching threshold: 0.1 m to 3 m
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED indicators: Green for power, Yellow for object detection
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max output current: 4 A at 250 V AC or 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Housing material: Plastic ABS, front screen PMMA
- Connection: Terminal connection with 5 terminals
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2, EN 61000-6-3
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Visible red LED light source with 630 nm wavelength
- Rectangular light spot with 28 mm diameter at 500 mm distance
- Two complementary relay outputs (SPDT), electrically isolated
- Light/dark switching mode with max output current 4 A
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 protection rating
- Wide ambient operating temperature range from -30 °C to +60 °C
- High shock and vibration resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20G-QLRC1160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
