Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK

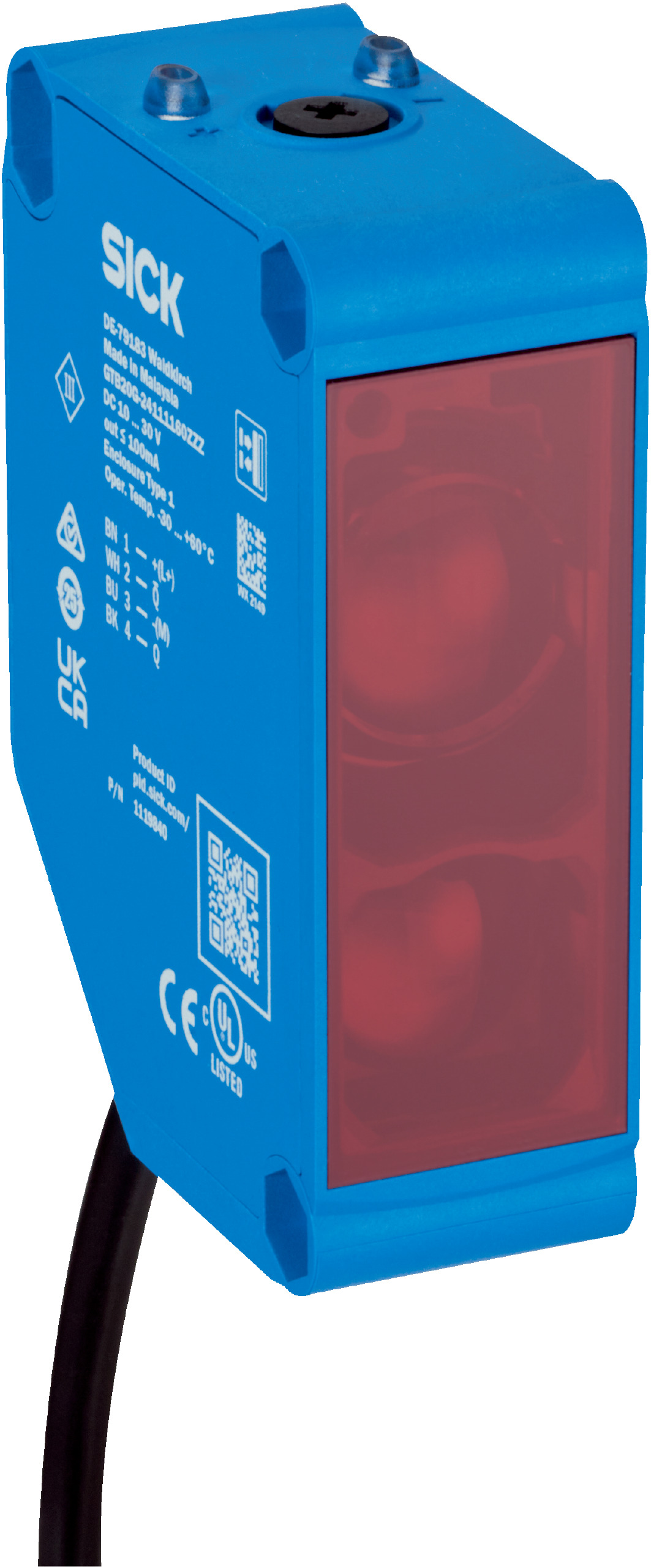

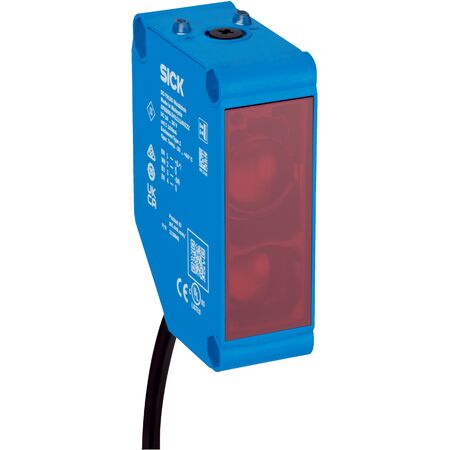

The GTB20M-6ISD1160ZZZ photoelectric proximity sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 0.1 m to 3 m. With an infrared LED light source and IP67 protection, it ensures reliable object detection in harsh environments, making it ideal for material handling and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m minimum, 3 m maximum
- Adjustable switching threshold: 0.1 m to 3 m
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (without load at 230 V AC/DC), ≤ 45 mA (without load at 24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 5 m length, PVC
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.155 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with 850 nm wavelength
- Rectangular light spot with 28 mm diameter at 500 mm distance
- Two complementary relay outputs with light/dark switching
- High protection rating IP67 for harsh environments
- Operating temperature range from -30 °C to +60 °C
- LED indicators for power and object detection status
- Robust plastic ABS housing with PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Packaging and sorting systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20M-6ISD1160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
