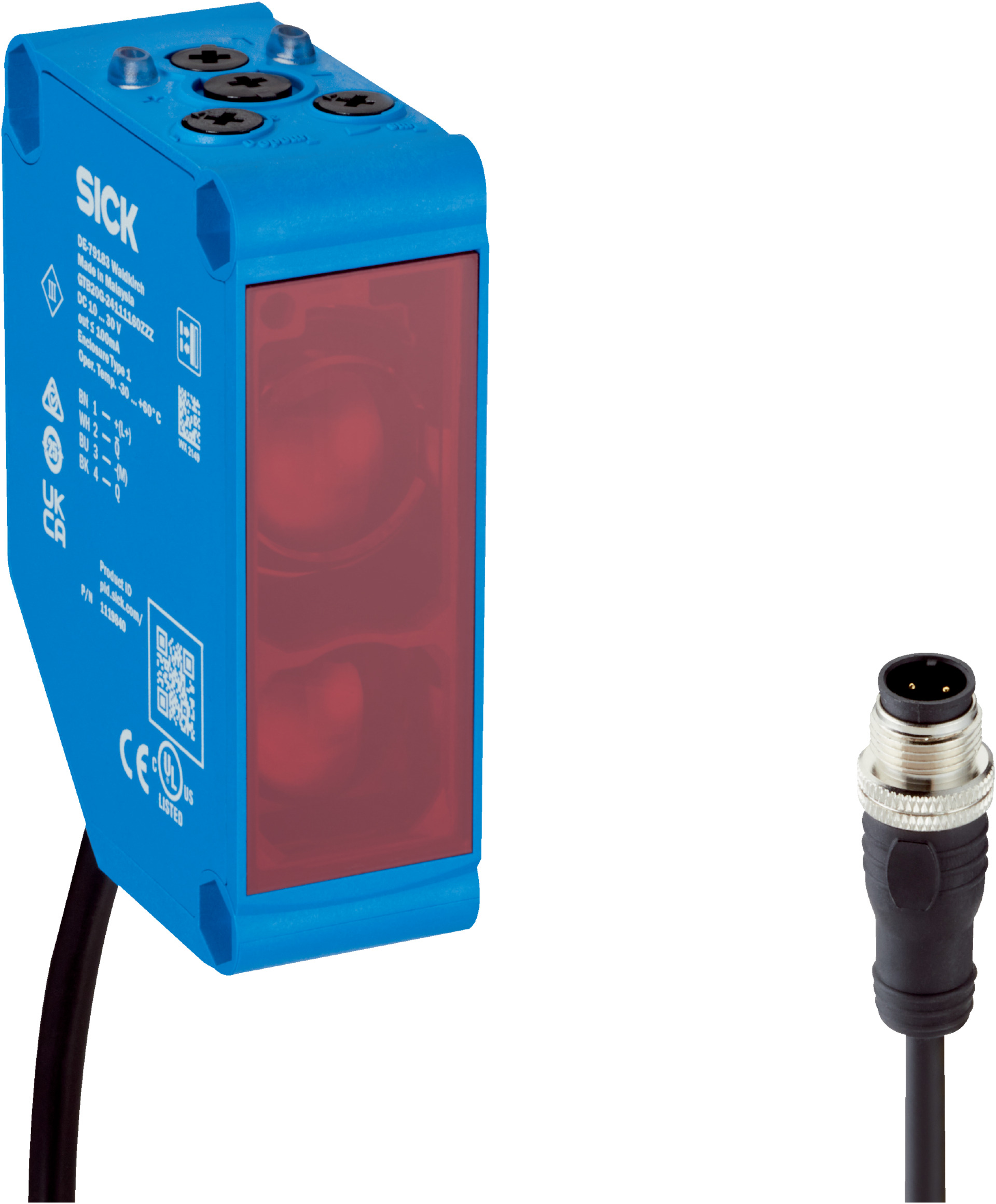

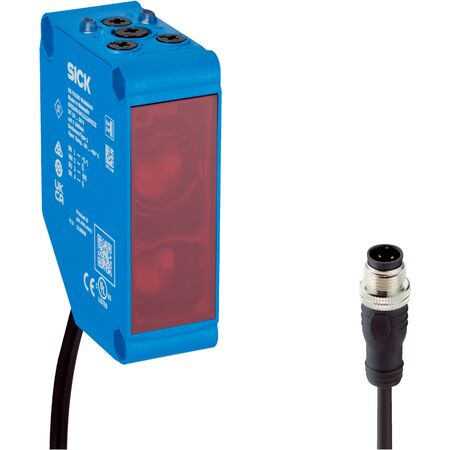

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB20M-3411116GZZZ features background suppression and an adjustable sensing range from 0.005 m to 3 m, making it ideal for industrial automation and safety detection applications. With a robust IP67 rated housing and a fast response time of ≤ 1.67 ms, this sensor ensures reliable performance in harsh environments, perfect for material handling and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 1.67 ms
- Switching frequency: 300 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V AC/DC
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Cable: 4-pin M12 male connector, 315 mm length
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.121 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.005 m to 3 m
- Infrared LED light source with rectangular light spot
- High accuracy with minimum distance of 200 mm between object and background
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for harsh environments
- Short response time of ≤ 1.67 ms and switching frequency up to 300 Hz
- Multiple potentiometers for sensing range, delay time, and switching function adjustment
- Protection against reverse polarity, overcurrent, and short circuits
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing lines
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
- Durable IP67 rated housing reduces environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20M-3411116GZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
