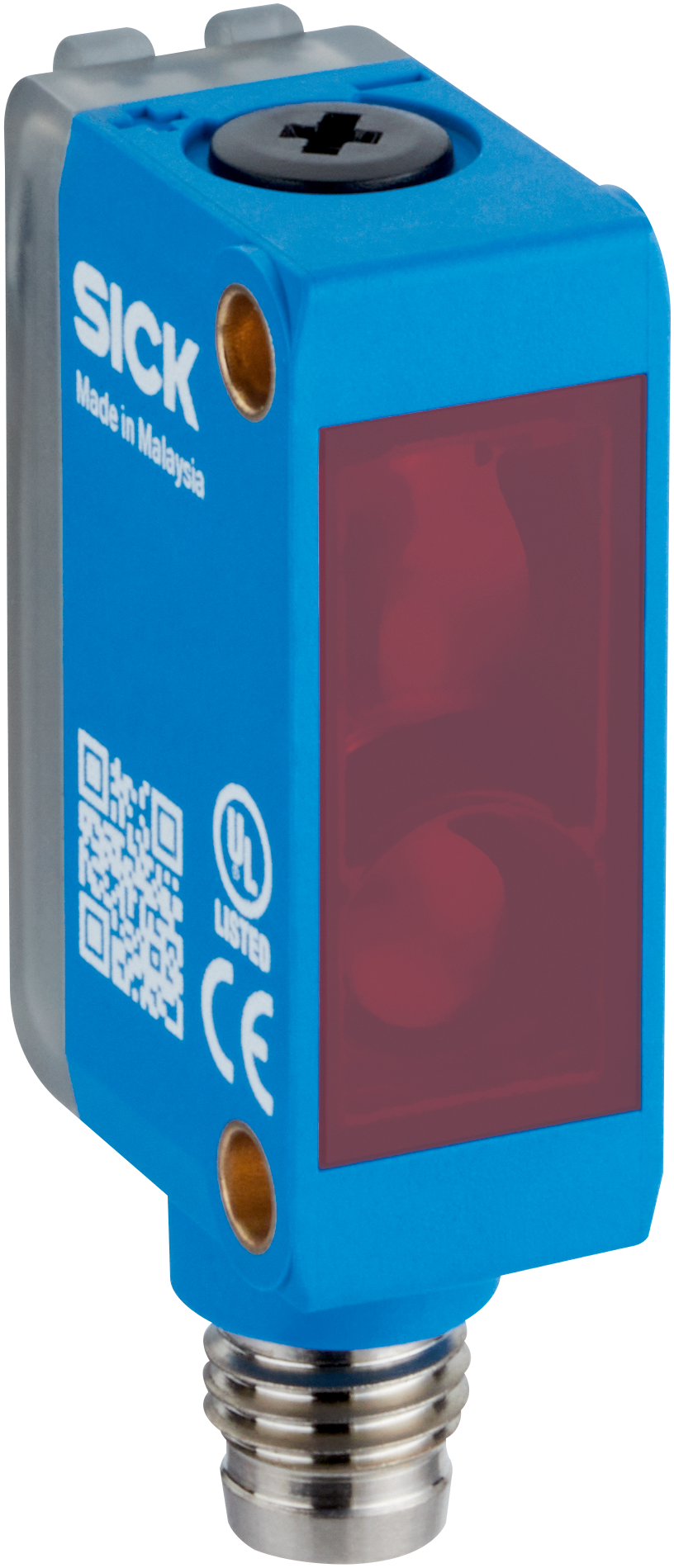

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 5 mm to 400 mm. With a robust IP67-rated housing and a fast response time of ≤ 625 µs, it's perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 400 mm adjustable, recommended 35 mm to 140 mm
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 5.6 mm at 150 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 5 mm to 400 mm
- PinPoint LED visible red light with 640 nm wavelength
- Operating indicator LED green and object detection LED yellow
- Robust plastic ABS housing with IP67 rating
- Short response time of ≤ 625 µs and switching frequency up to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

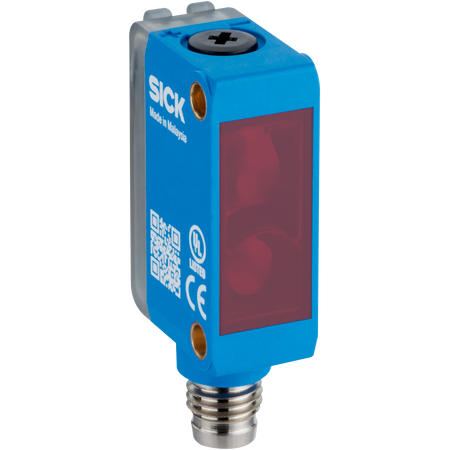

The SICK GTB6SP-22A1116EZZZZ1ZZZZZZZZZ1 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
