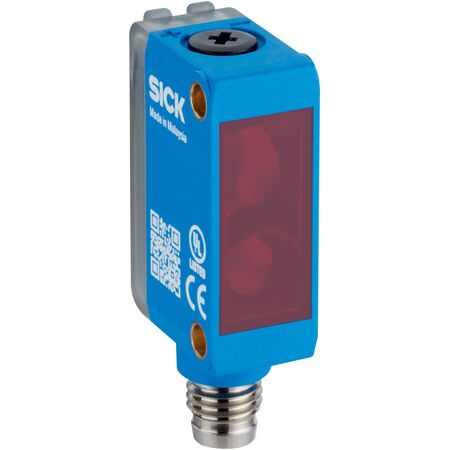

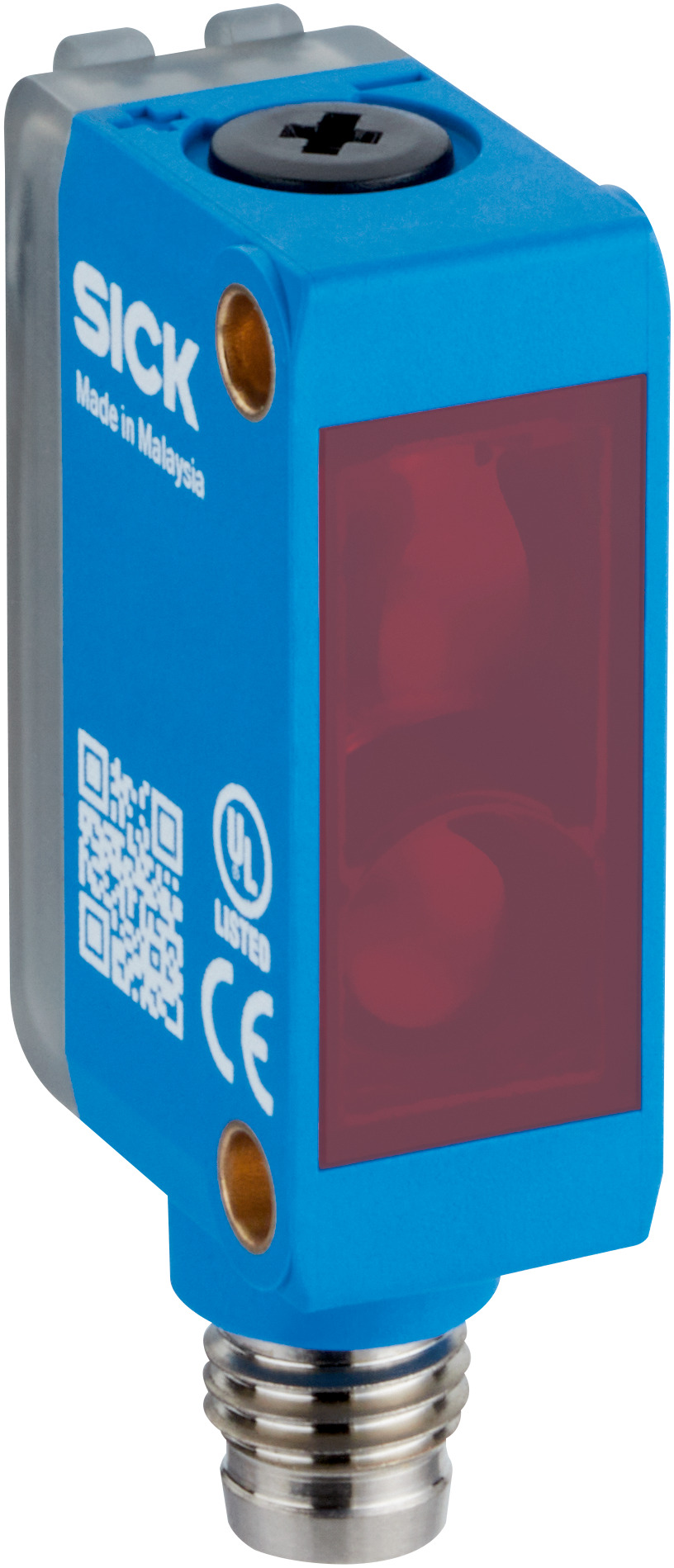

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB6SP-22E1116EZZZ features background suppression and an adjustable sensing range from 5 mm to 400 mm, making it ideal for industrial automation and object detection. With a robust IP67 rated enclosure and a high switching frequency of up to 1000 Hz, this sensor ensures reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 400 mm adjustable, recommended 35 mm to 140 mm
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 5.6 mm at 150 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: Without load at 24 V
- Output type: 1 NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M8, 4-pin connector
- Weight: Approx. 10 g
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 5 mm to 400 mm
- PinPoint LED visible red light with 640 nm wavelength
- Operating indicator LED green and object presence LED yellow
- High switching frequency up to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing with PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Durable IP67 housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB6SP-22E1116EZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
