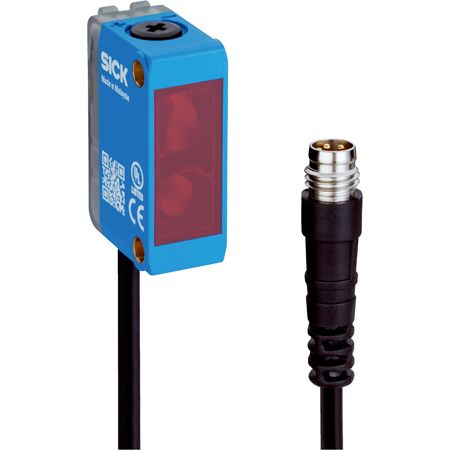

Photoelectric Proximity Sensor | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB6SP-31A1116EZZZ features background suppression and an adjustable sensing range from 5 mm to 400 mm, making it ideal for industrial automation and object detection. With a high switching frequency of up to 1000 Hz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, providing robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 400 mm adjustable, recommended 35 mm to 140 mm
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 5.6 mm at 150 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: Without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS, front screen PMMA
- Connection: Cable with M8 3-pin connector, 300 mm length
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 5 mm to 400 mm
- PinPoint LED visible red light with 640 nm wavelength
- Operating indicator LED green and object detection LED yellow
- High switching frequency up to 1000 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing with PMMA front screen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Durable IP67 housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB6SP-31A1116EZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
