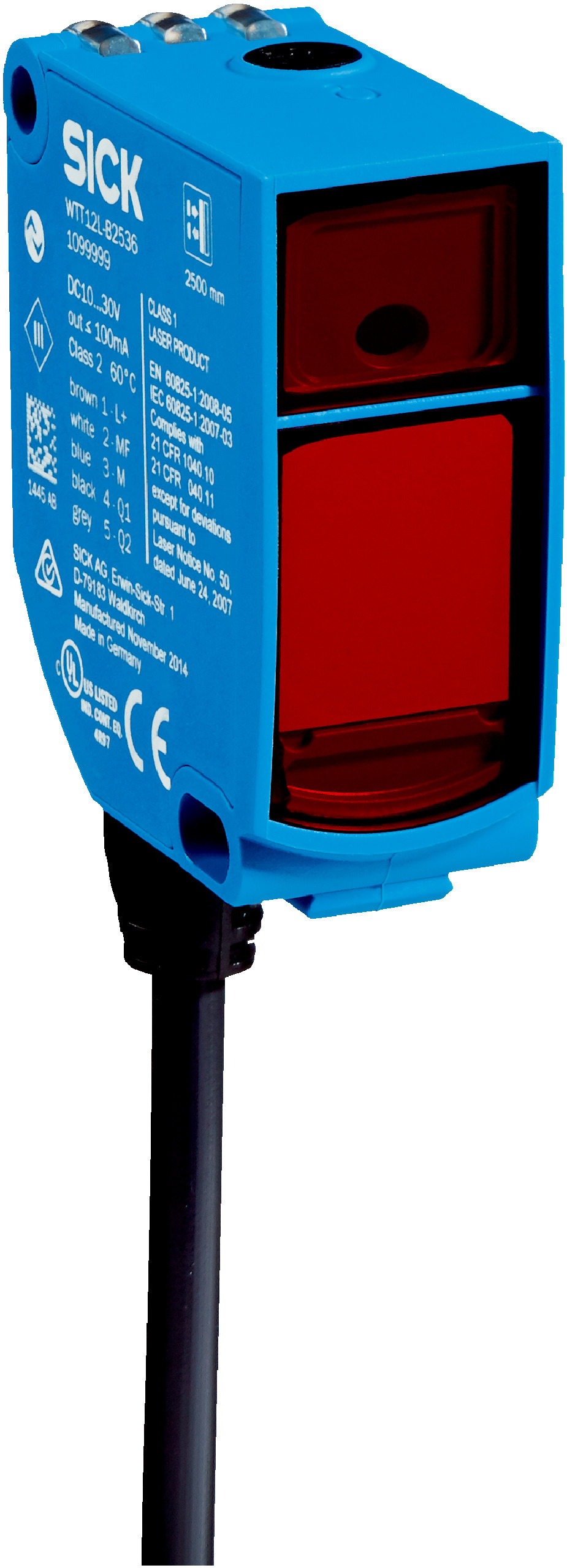

Photoelectric Proximity Sensor WTT12L-B3531 | Background Suppression | Dual Switching Outputs | IP67 Rated | by SICK
The WTT12L-B3531 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 2,500 mm and dual switching outputs (PNP/NPN), it ensures reliable object detection in various applications. Its robust IP67 rated enclosure protects against dust and water, making it ideal for manufacturing, robotics, and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN
- Number of switching outputs: 2 (Q, /Q)
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: Laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Light spot size at 2,500 mm: Ø 14 mm
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Connection type: Cable with M12, 5-pin plug, 0.3 m length
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
- Robust plastic housing made of VISTAL® and PMMA optics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor integration to ensure compliance with safety standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and quality control in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B3531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
