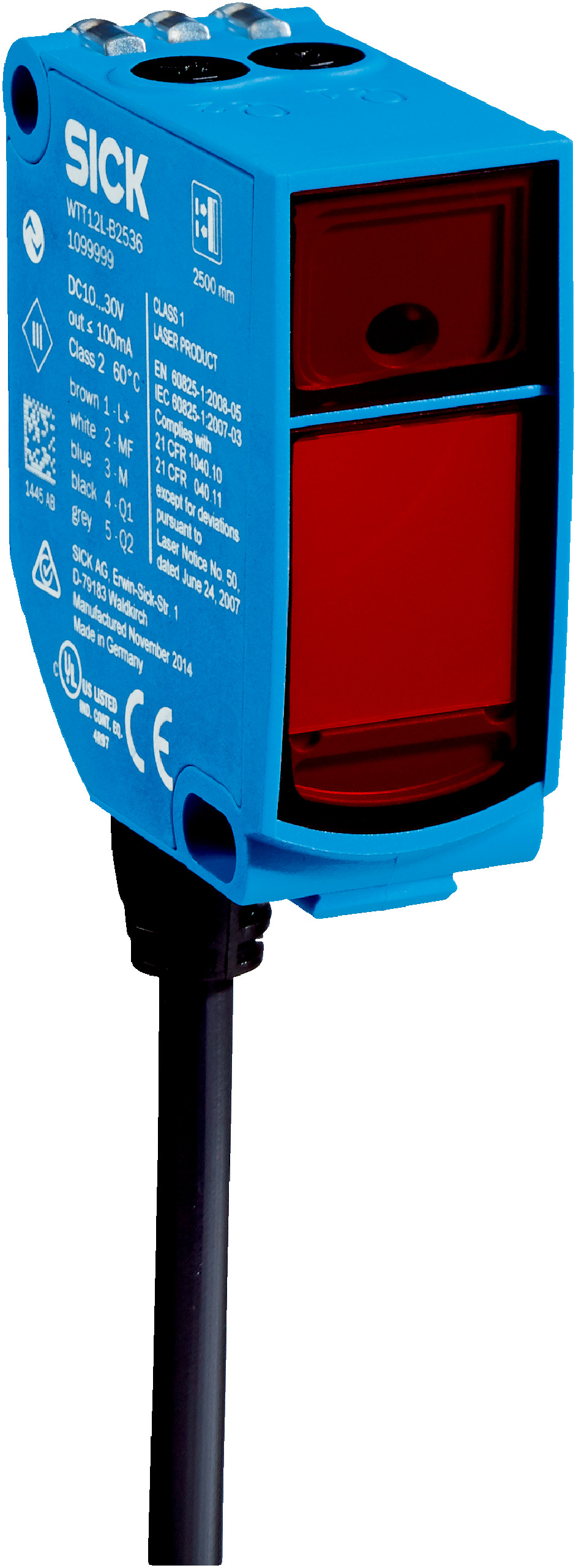

Photoelectric Proximity Sensor WTT12L-B1536 | Background Suppression | Dual Switching Outputs | IP67 Rated | by SICK
The WTT12L-B1536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a robust IP67 enclosure, it operates effectively in harsh environments, making it ideal for object detection in material handling and robotics applications. Its dual switching outputs and fast response time ensure reliable performance in critical monitoring tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN
- Number of switching outputs: 2 (Q1, Q2)
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Laser wavelength: 658 nm
- Light spot size at 2,500 mm: Ø 14 mm
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection type: Cable, 5-wire, 2 m length
- Operating temperature range: -35 °C to +50 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.111 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with push-pull configuration
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -35 °C to +50 °C
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
- Robotics and machine vision applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
