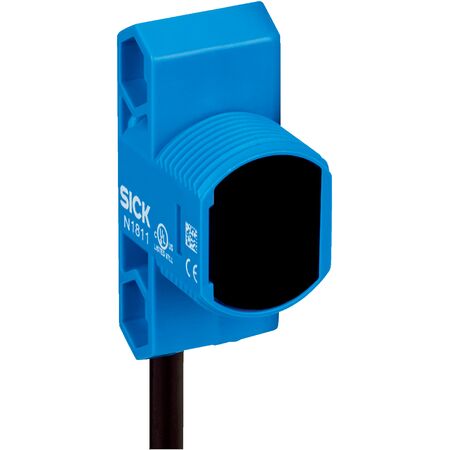

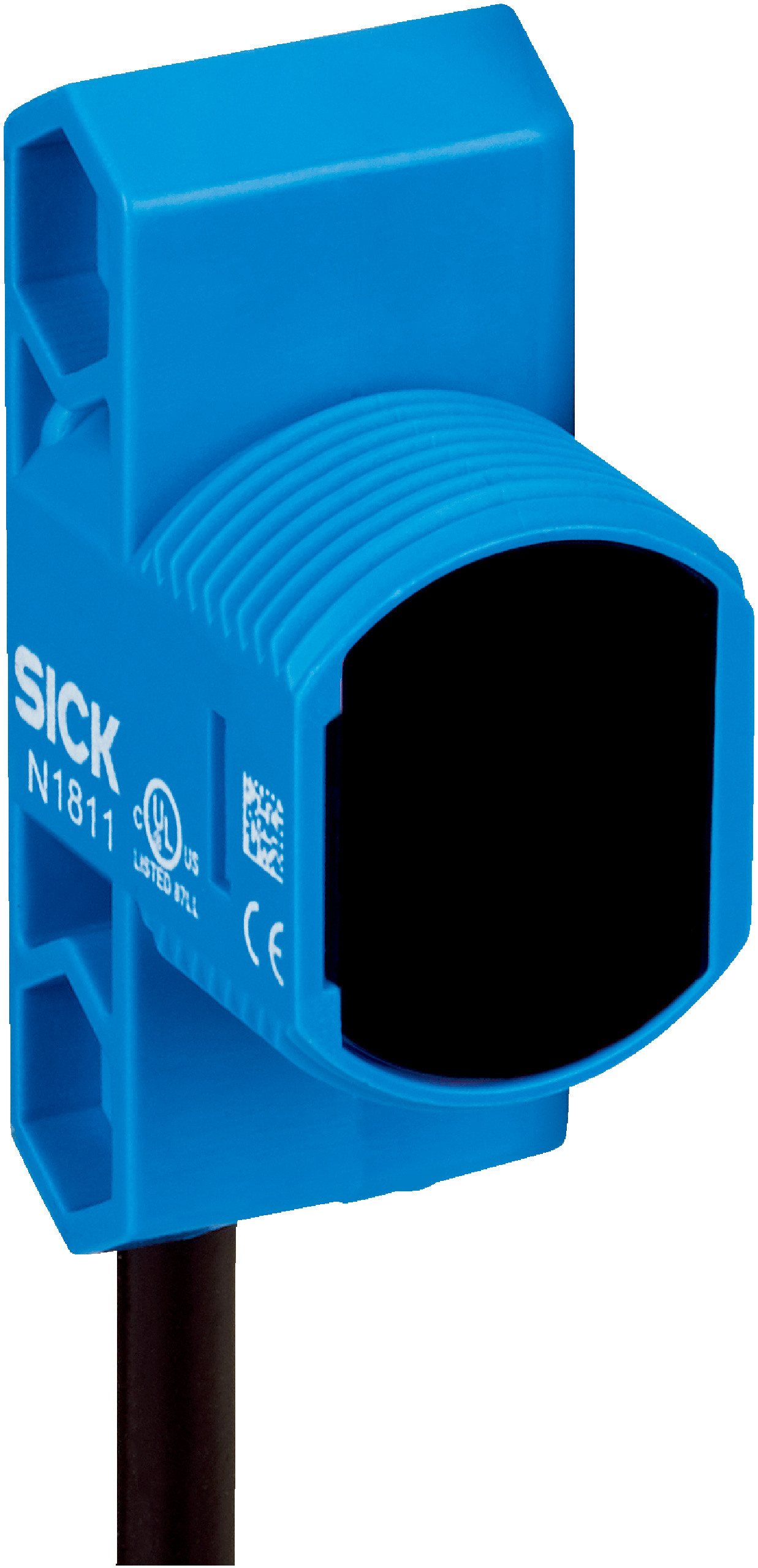

Photoelectric Proximity Sensor | Background Suppression | Fast Response Time | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-2FZ1G1D02 is designed for industrial automation, featuring background suppression and a fast response time of ≤ 1 ms. With an IP67 rating for dust and water protection, this sensor is perfect for object detection in manufacturing processes and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Cable: 4-wire, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 4.54 g
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared PinPoint LED light source with 850 nm wavelength
- Fast response time of ≤ 1 ms and switching frequency of 500 kHz
- Dark switching PNP output with max output current of 100 mA
- Cable open end, 4-wire, 2 m length with PVC insulation
- Robust plastic ABS housing and PMMA optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-2FZ1G1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
