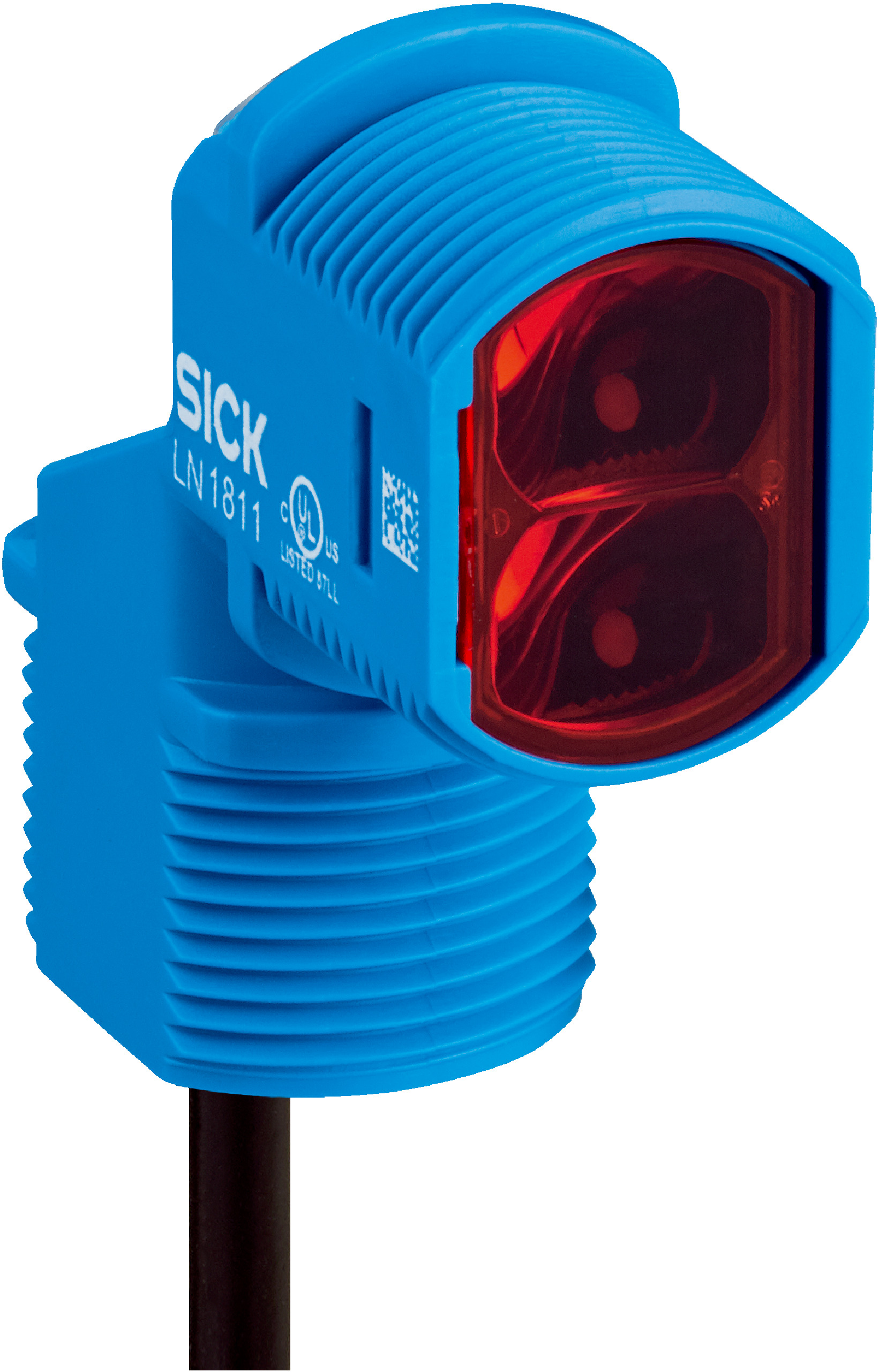

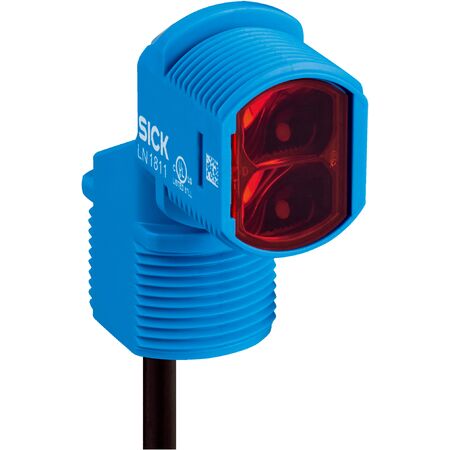

Photoelectric Proximity Sensor | Background Suppression | Fast Response Time | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-4PZ4B2D04 is designed for industrial automation, featuring background suppression and a fast response time of ≤ 1 ms. With a high switching frequency of 500 kHz and an IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for manufacturing process control and material handling systems, this sensor is built to enhance efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size: Ø 8 mm at 100 mm distance
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable material: Plastic PVC, 150 mm length
- Connection type: Cable with M12 male connector, 4-pin
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range from 5 mm to 100 mm
- Fast response time ≤ 1 ms
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +55 °C
- Cable with M12 male connector, 4-pin, 150 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZTB18-4PZ4B2D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
