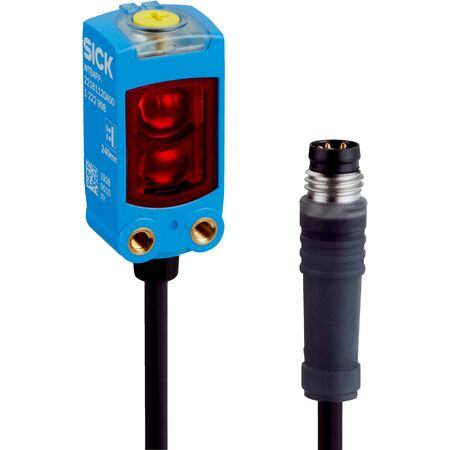

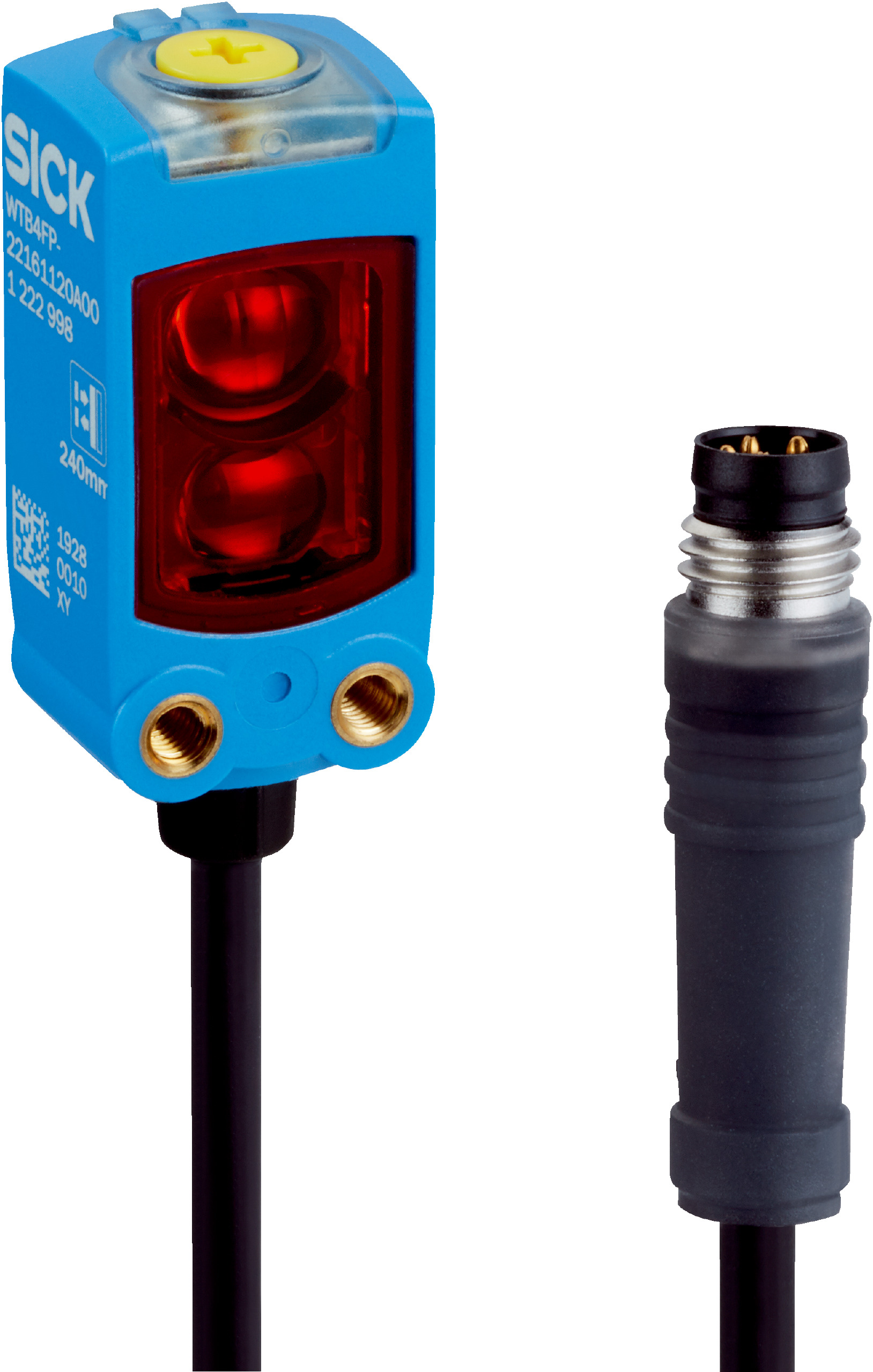

Photoelectric Proximity Sensor | Background Suppression & MultiSwitch | High Accuracy | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4FP-3216D150A00 is designed for precise object detection in industrial automation. With adjustable sensing ranges from 15 mm to 220 mm and high accuracy of 3.0 mm at 15-50 mm, it ensures reliable performance. Its robust IP66/IP67 rated housing and visible red light PinPoint LED make it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression & MultiSwitch | High Accuracy | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1113164
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link photoelectric sensor, SICK proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and MultiSwitch
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Recommended sensing range: 40 mm to 140 mm
- Distance value measuring range: 15 mm to 220 mm with 1 mm resolution
- Repeatability: 0.3 mm to 2.2 mm
- Accuracy: Typical 3.0 mm at 15-50 mm distance
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 4.2 mm at 130 mm distance
- Update rate of distance value: 20 ms
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Response time: ≤ 1,000 µs
- Switching frequency: 500 Hz
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Cable with M8 male connector, 4-pin, 110 mm length
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and MultiSwitch distance value
- Adjustable sensing range from 15 mm to 220 mm
- High accuracy with typical 3.0 mm at 15-50 mm distance
- Visible red light PinPoint LED with 635 nm wavelength
- IO-Link communication interface for sensor parameter configuration
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Operating temperature range from -40 °C to +60 °C
- LED indicators for mode, output states, and object detection
- Short response time of ≤ 1,000 µs and switching frequency up to 500 Hz
- Overcurrent, short-circuit, and reverse polarity protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Distance measurement and background suppression tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FP-3216D150A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
