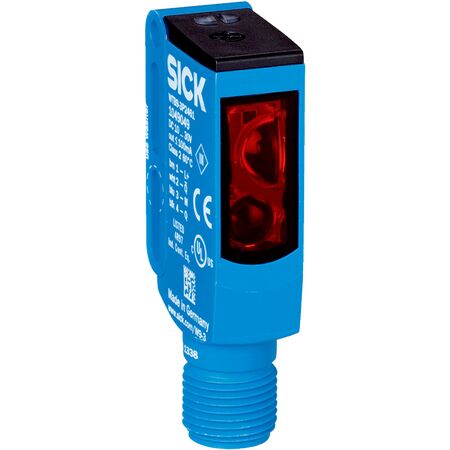

Photoelectric Proximity Sensor WTB9-3P2411S14 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P2411S14 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 800 mm and a fast response time of under 2.5 ms, it’s perfect for manufacturing process control and material handling. Its robust design features an infrared LED light source and high protection ratings of IP66, IP67, and IP69K, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P2411S14 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1052172
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, SICK Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 800 mm
- Type of light: Infrared LED at 850 nm wavelength
- Adjustment: Potentiometer with 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Adjustable sensing range from 20 mm to 800 mm
- Potentiometer adjustment with 5 turns
- High protection rating: IP66, IP67, IP69K
- Fast response time under 2.5 ms and switching frequency of 200 Hz
- Male connector M12, 4-pin connection
- Robust plastic housing made of VISTAL® and PMMA optics
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P2411S14 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
