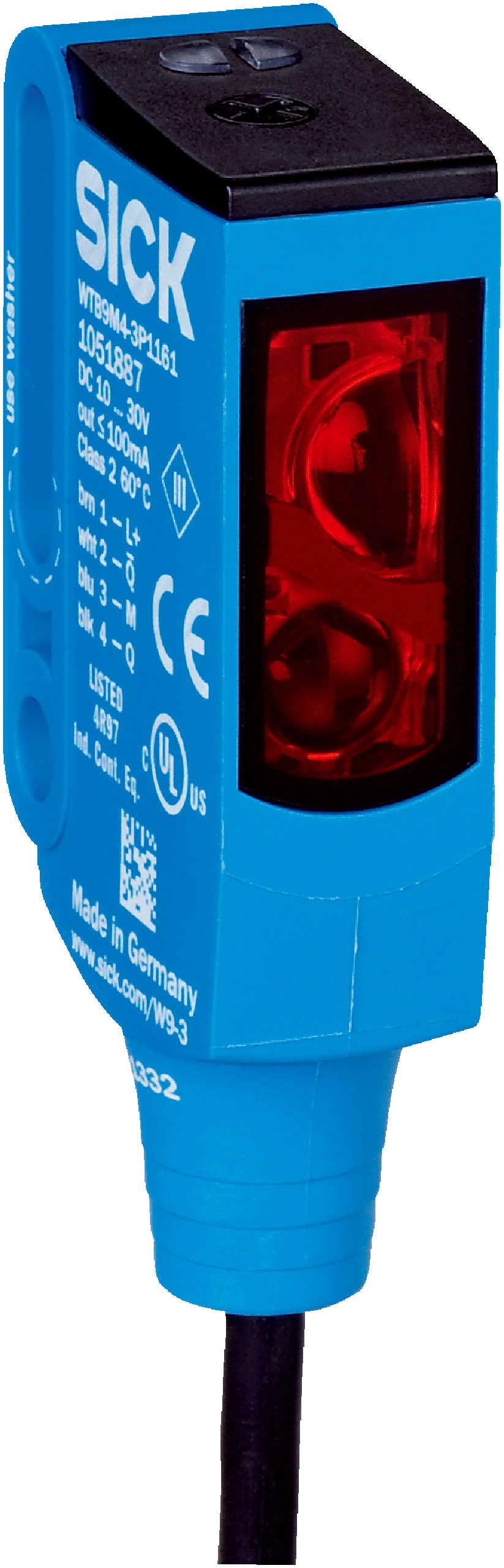

Photoelectric Proximity Sensor WTB9M4-3P3411S14 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
The WTB9M4-3P3411S14 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 800 mm and an infrared LED light source at 850 nm, it ensures reliable performance. Ideal for manufacturing process control and safety monitoring, this sensor features a robust IP66/IP67/IP69K rating, making it suitable for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9M4-3P3411S14 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1054431
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, SICK Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 20 mm to 800 mm
- Type of light: Infrared LED at 850 nm wavelength
- Adjustment: Potentiometer with 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with M4 mounting hole
- Sensing range from 20 mm to 800 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High protection rating: IP66, IP67, IP69K
- Operating temperature range from -40 °C to +60 °C
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
- High ingress protection minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9M4-3P3411S14 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
