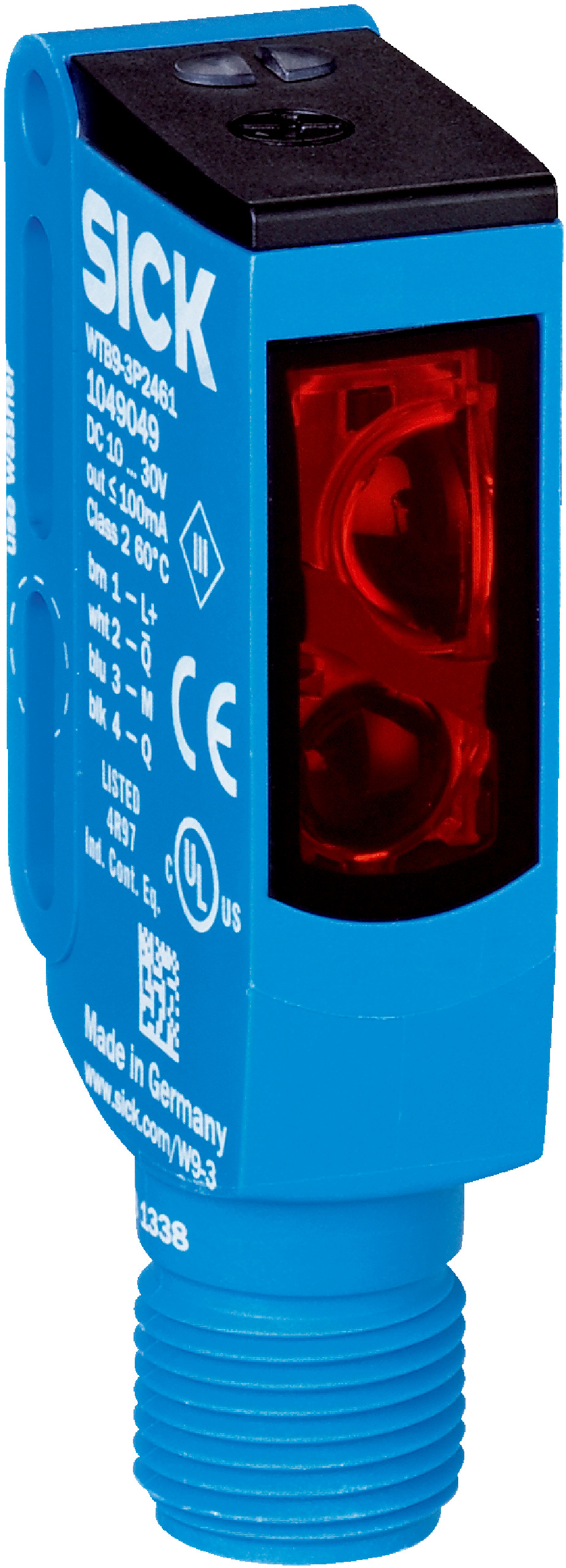

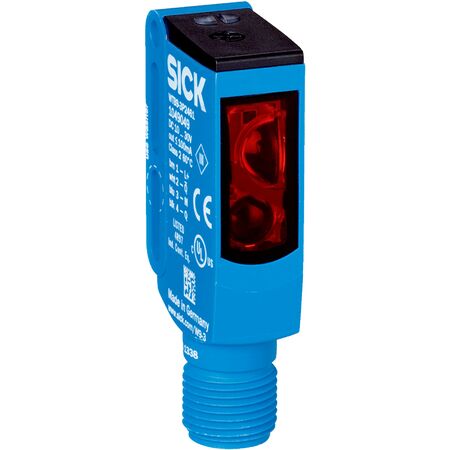

Photoelectric Proximity Sensor WTB9-3P2410S20 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P2410S20 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 100 mm and a high switching frequency of 500 Hz, it ensures rapid response times under 1 ms. Ideal for manufacturing process control and safety monitoring, this sensor features robust IP66/IP67/IP69K protection, making it suitable for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 100 mm (preset to 100 mm on white 90% remission)
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 20 mm at 250 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1 ms
- Switching frequency: 500 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with printed front screen for increased blind zone
- Sensing range preset to 100 mm on white (90% remission)
- Infrared LED light source with 850 nm wavelength
- High switching frequency of 500 Hz and response time under 1 ms
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40°C to +60°C
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB9-3P2410S20 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
